Tongwei Solar TWMNH-48HD465W

Trusted by 1,000s of Contractors & Installers

Ships Direct from Manufacturer — typically leaves the dock in 3–7 business days

SKU PES-SPS-SOL-21061

OEM Authorized Dealer Full OEM Warranty

$180.00 USD

~~$0.01~~ $180.00 USD

Sold out

Quantity

Sold by the pallet (10) — PowerLink & trade: request 10+

Sold by the pallet (10) PowerLink Network & trade customers can request 10+ →

Buying 5+ pallets or a truckload?Get a Volume Quote →

Offloading overstock or decommissioned gear? We buy surplus equipment →

Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you

Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.

SKU: PES-SPS-SOL-21061

Complete the job

Compatible gear contractors pair with this item

Microinverter APsystems QT2 1.7kW 3-Ph Microinverter 124062

$407.00

Racking kit Racking Hardware Kit — 20-panel System

$1,596.43

PV wire Omni Cable 8 AWG RHW-2 PV Wire Red 2000V

$1,220.00

Secure Payment Methods

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Request a Free Quote

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.

(888) 876-0007

Instant Live Chat

Mon-Fri 10am-6pm EST

View full details

Tongwei Solar TWMNH-48HD465W $180.00

Specifications

Power Rating 465W

What is your return policy?

Returns are accepted within 30 days of delivery and require an RMA number. Returns of non-defective items carry a 40% restocking fee per our Refund Policy; defective, damaged-in-transit, or mis-shipped items are exempt. Special-order items are final sale.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

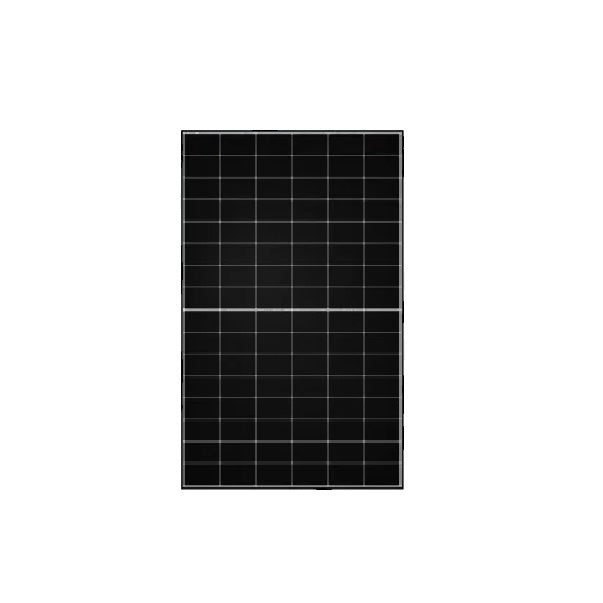

Tongwei TWMNH-48HD465W 465W N-Type Bifacial Dual Glass Solar Panel

Model TWMNH-48HD465W | N-Type Bifacial Half-Cell | 96 Half-Cell | Bifacial | 1500V System Voltage

465 W

Max Power Output

23.3%

Module Efficiency

N-Type TOPCon

Product Overview

The Tongwei TWMNH-48HD465W 465W N-type bifacial dual glass solar panel is engineered for premium residential and light commercial use. This compact, lightweight module delivers high power density, making it ideal for carports, balcony systems, and space constrained rooftops. Advanced N-type half cells and bifacial technology unlock additional energy yield from reflected light behind the module. A maximum efficiency of up to 23.3% is achieved at the front side under standard test conditions. Durable dual glass construction and a black anodized frame provide strong mechanical stability and a clean architectural appearance. The panel supports system voltages up to 1500V, enabling flexible string design and lower balance of system costs. Thanks to low annual degradation and a long linear power warranty, reliable output is maintained for decades. This module is designed for customers who want long term energy savings with modern aesthetics and robust performance. It integrates easily with mainstream string and hybrid inverters, making project design straightforward and cost effective.

Key Benefits

High power in a compact footprint: Each module delivers up to 465 watts while keeping dimensions manageable. This allows powerful arrays even where roof or mounting space is limited, increasing design flexibility.

Bifacial energy gain: The dual glass bifacial design captures light on both sides of the panel. Rear side gains can significantly boost total energy yield on reflective surfaces such as light concrete, metal decks, or carport roofs.

Superior N-type reliability: N-type cells resist common degradation effects seen in conventional P-type modules. This improves long term performance stability and supports the 30 year linear power warranty offered by Tongwei.

Robust dual glass construction: Semi tempered glass on both sides increases mechanical strength and weather resistance. The module is designed to withstand high snow loads and wind pressures in demanding environments.

Elegant black frame aesthetics: The black anodized frame and transparent rear glass give a refined architectural finish. This makes the panel particularly attractive for visible installations on balconies, carports, and premium rooftops.

Optimised for modern 1500V systems: With a maximum system voltage of 1500V DC, longer strings can be used. This reduces cabling, combiners, and installation time, helping to lower total project costs.

How It Works

The TWMNH-48HD465W panel converts sunlight into usable electricity through advanced N-type bifacial solar cells. When sunlight reaches the front glass, photons are absorbed by the N-type cells and generate a flow of electrons. These electrons move through the cell circuitry and create direct current power at the module terminals. Because the panel is bifacial, additional light hitting the rear glass is also utilized. Reflected and diffuse light behind the module can produce extra current, increasing total energy output over the year. The half cell layout reduces resistive losses and improves shade tolerance across the module surface. Generated DC power is then routed through the integrated junction box and cables to a compatible inverter. The inverter converts the DC energy into AC power that can be used on site or exported to the grid. Throughout operation, temperature coefficients and low degradation characteristics help keep performance stable. This combination of cell technology, optical design, and robust construction ensures dependable energy production in real conditions.

Front side energy conversion: Sunlight passes through the anti reflection coated front glass and reaches the N-type cells. Electrons released in the silicon lattice are directed by conductors, creating current at the module output.

Rear side bifacial gain: Light reflected from surfaces under and around the panel enters through the transparent rear glass. This rear side illumination adds extra current generation, particularly on bright or reflective mounting surfaces.

System integration and output: The module’s MC4 compatible leads connect to series strings within the array. Inverters convert the combined DC output to AC, while the linear power warranty ensures dependable yield is maintained over the system lifetime.

Technical Specifications

Brand	Tongwei Co., Ltd. (TW Solar)
Model Number	TWMNH-48HD465W
Cell Technology	N-type half-cell bifacial dual glass
Cell Type and Count	TNC 96 cells (6 × 16 half-cell layout)
Technology Classification	Monocrystalline, bifacial, N-type
Power Range Series	445 Wp to 465 Wp
Maximum Power (Pmax)	465 Wp (STC)
Module Efficiency	Up to 23.3%
Power Output Tolerance	0 to +3%
Open Circuit Voltage (Voc)	36.35 V (typical for 465 W variant)
Short Circuit Current (Isc)	16.12 A (typical for 465 W variant)
Voltage at Maximum Power (Vmpp)	30.94 V (465 W STC)
Current at Maximum Power (Impp)	15.03 A (465 W STC)
Bifaciality Factor	80 ± 10%
Operating Temperature Range	-40°C to +85°C
Maximum System Voltage	1500 V DC
Maximum Series Fuse Rating	30 A
Temperature Coefficient of Pmax	-0.28% / °C
Temperature Coefficient of Voc	-0.24% / °C
Temperature Coefficient of Isc	+0.046% / °C
Module Dimensions (H × W × D)	1762 × 1134 × 30 mm
Weight	23.7 kg
Front Glass	2.0 mm semi tempered glass with anti reflection coating
Rear Glass	2.0 mm semi tempered glass, transparent
Frame Material and Color	Anodized aluminum alloy, black frame
Junction Box Protection Class	IP68, 3 bypass diodes
Cable Cross Section and Length	4 mm², 1200 mm ± length, customizable
Mechanical Test Loads	5400 Pa front load / 2400 Pa rear load
Packaging Information	36 modules per pallet, 936 modules per 40' HC container

Certifications & Compliance

Certifications: ISO9001:2015, ISO14001:2015, ISO45001:2018, ISO50001:2018, EC62941:2019, IEC 61215, IEC 61730, IEC TS 62804, IEC 61701, IEC 62716, IEC 60068-2-68.
Inverter Compatibility: Compatible with most modern 1000V and 1500V string, hybrid, and central inverters using standard MC4 type connectors. Always confirm final string configuration and current limits with the inverter datasheet.
Environmental: Designed for harsh outdoor environments, tested for salt mist, ammonia, and sand resistance under relevant IEC standards. Dual glass construction and IP68 junction box support long term field durability.
Warranty: 15 year material and workmanship warranty, plus 30 year linear power output warranty. First year power degradation is limited to 1%, with a typical annual degradation of 0.4%, ensuring at least 87.4% of rated power at year 30 under standard conditions.

Documentation

Product Datasheet (PDF)

● Available | Contact us for lead time and pricing
