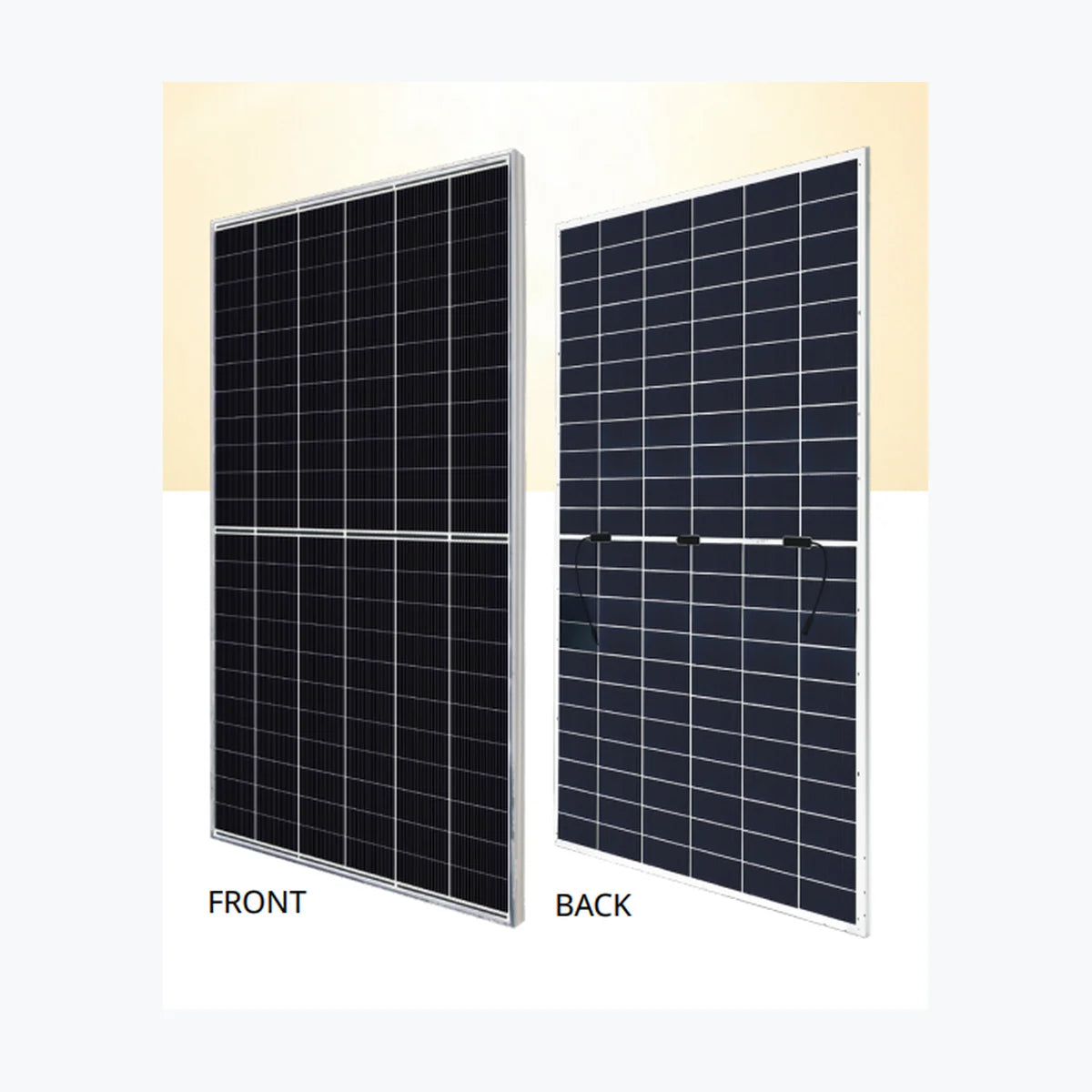

    Topsky Energy CS7N-715TB-AG

    Topsky Energy CS7N-715TB-AG

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-21200
    • Container price: $48.60 USD
    • Container qty: 720
    • Odoo id: 25,550
    • Pallet price: $2.29 USD
    • Pallet qty: 30
    • Unit price: $0.09 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. CS7N-715TB-AG Product Warranty 12 Years Power Tolerance 0 ~ +1.5 % Maximum Power (Pmax) 715 Wp Voltage at Maximum Power (Vmpp) 40.6 V Current at Maximum Power (Impp) 17.63 A Open Circuit Voltage (Voc) 48.5 V Short Circuit Current (Isc) 18.64 A Panel Efficiency 23 % Maximum Power (Pmax) 541 Wp Voltage at Maximum Power (Vmpp) 38.4 V Current at Maximum Power (Impp) 14.09 A Open Circuit Voltage (Voc) 45.9 V Short Circuit Current (Isc) 15.03 A Temperature 41±3 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 35 A Panel Dimension (H/W/D) 2384x1303x33 mm Weight 37.8 kg Cell Number 132 Glass Type Anti-reflection Coating, Tempered Glass Thickness 2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 410

      Technology: Bifacial, TOPCon
      Power Range: 700 ~ 720 Wp
      Panel Efficiency: 22.5 ~ 23.2 %
      Weight: 37.8 kg
      Seller Name: Shenzhen Topsky Energy Co., Ltd.
      Country: China
