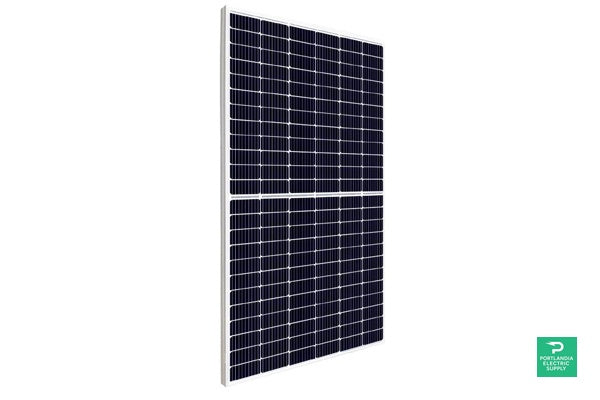

Topsky Energy JAM54D41-455/LB
PayPal Pay in 4 interest-free payments of $39.75 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-21206
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for JA Solar. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. JAM54D41-455/LB Product Warranty 12 Years Power Warranty 1 Years of 99 %, 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 455 Wp Voltage at Maximum Power (Vmpp) 33 V Current at Maximum Power (Impp) 13.79 A Open Circuit Voltage (Voc) 39.5 V Short Circuit Current (Isc) 14.56 A Panel Efficiency 22.8 % Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 1762x1134x30 mm Weight 22 kg Cell Number 108 Glass Thickness 1.6 mm Frame Type Black Junction Box Diodes 3 Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Download Manufacturer's PDF Datasheet
Technology: Bifacial, N-type
Power Range: 435 ~ 455 Wp
Panel Efficiency: 21.8 ~ 22.8 %
Weight: 22 kg
Seller Name: Shenzhen Topsky Energy Co., Ltd.
Country: China
| SKU | PES-SPS-SOL-21206 |
|---|---|
| Manufacturer | JA Solar |
| Brand | |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
