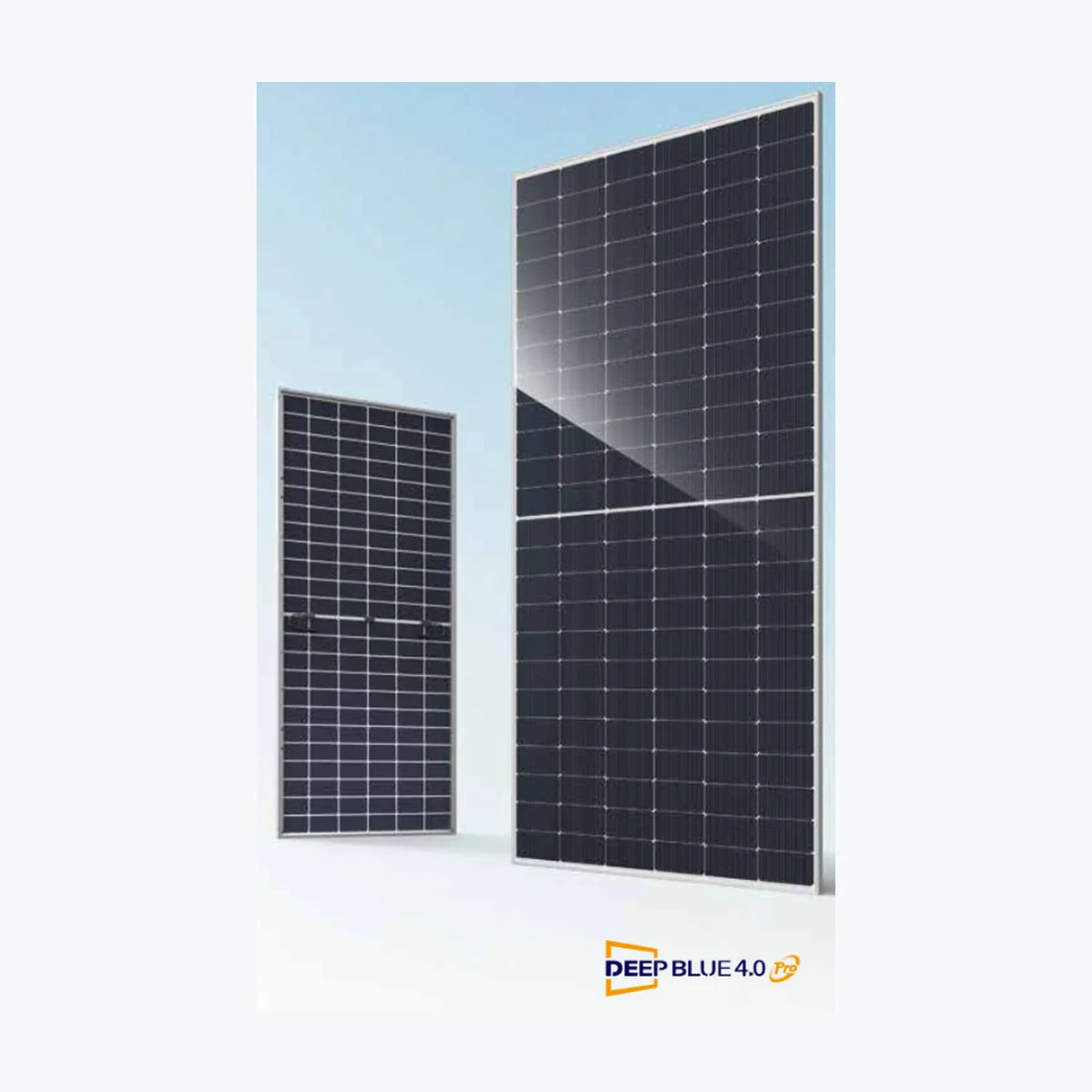

    Topsky Energy JAM72D40-590/MB

    Topsky Energy JAM72D40-590/MB

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-21213
    • Brand: JA Solar
    • Container price: $48.60 USD
    • Container qty: 720
    • Odoo id: 25,577
    • Pallet price: $2.29 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Monocrystalline Model No. JAM72D40-590/MB Product Warranty 12 Years Power Warranty 1 Years of 99 %, 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 590 Wp Voltage at Maximum Power (Vmpp) 44.43 V Current at Maximum Power (Impp) 13.28 A Open Circuit Voltage (Voc) 52.37 V Short Circuit Current (Isc) 13.94 A Panel Efficiency 22.8 % Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2278x1134x30 mm Weight 31.8 kg Cell Number 144 Glass Thickness 2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Download Manufacturer's PDF Datasheet

      Technology: Bifacial, N-type
      Power Range: 580 ~ 595 Wp
      Panel Efficiency: 22.5 ~ 23 %
      Weight: 31.8 kg
      Seller Name: Shenzhen Topsky Energy Co., Ltd.
      Country: China
