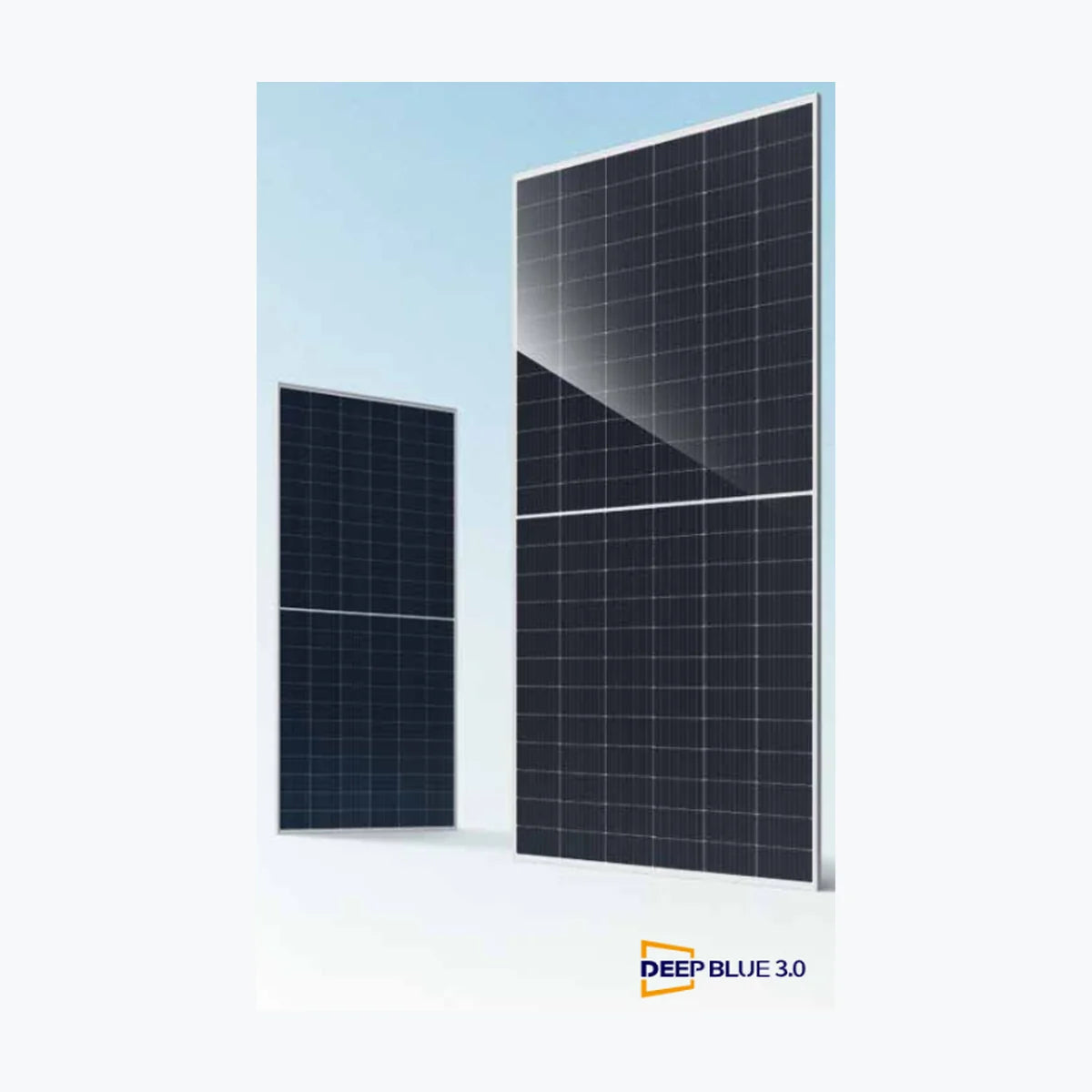

Topsky Energy JAM72S30-555/MR
PayPal Pay in 4 interest-free payments of $50.00 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-21220
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for JA Solar. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. JAM72S30-555/MR Product Warranty 12 Years Power Warranty 15 Years of 90.3 %, 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 555 Wp Voltage at Maximum Power (Vmpp) 42.11 V Current at Maximum Power (Impp) 13.18 A Open Circuit Voltage (Voc) 50.02 V Short Circuit Current (Isc) 14.07 A Panel Efficiency 21.5 % Maximum Power (Pmax) 420 Wp Voltage at Maximum Power (Vmpp) 39.66 V Current at Maximum Power (Impp) 10.59 A Open Circuit Voltage (Voc) 46.85 V Short Circuit Current (Isc) 11.21 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.275 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2278x1134x30 mm Weight 27.3 kg Cell Number 144 Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossec
Technology: PERC
Power Range: 550 ~ 555 Wp
Panel Efficiency: 21.3 ~ 21.5 %
Weight: 27.3 kg
Seller Name: Shenzhen Topsky Energy Co., Ltd.
Country: China
| SKU | PES-SPS-SOL-21220 |
|---|---|
| Manufacturer | JA Solar |
| Brand | |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
