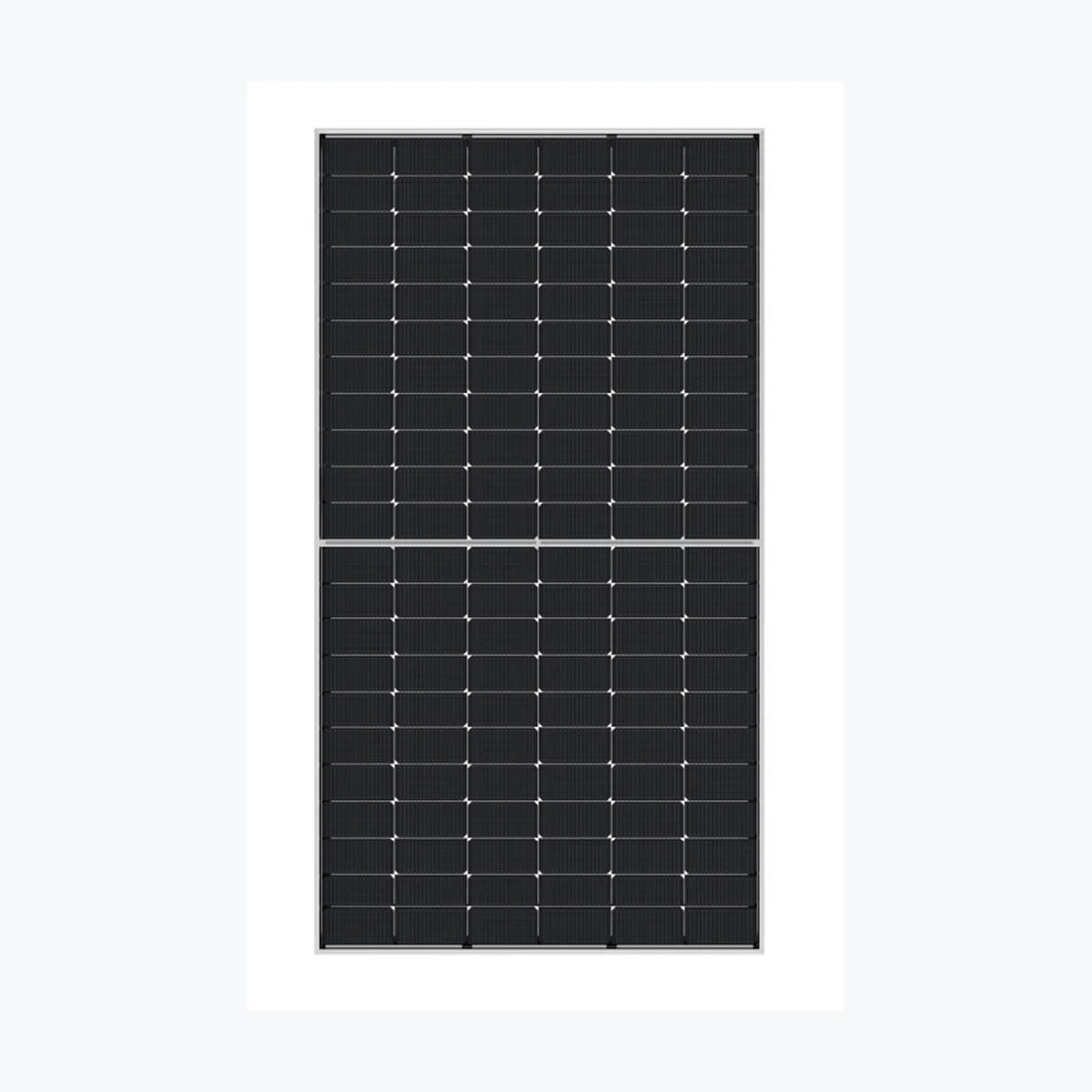

    Topsky Energy JKM610N-66HL4M-BDV

    Topsky Energy JKM610N-66HL4M-BDV

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-21222
    • Brand: JA Solar
    • Container price: $43.20 USD
    • Container qty: 720
    • Odoo id: 25,512
    • Pallet price: $2.04 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Monocrystalline Model No. JKM610N-66HL4M-BDV Product Warranty 12 Years Power Warranty 1 Years of 99 %, 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 610 Wp Voltage at Maximum Power (Vmpp) 40.46 V Current at Maximum Power (Impp) 15.08 A Open Circuit Voltage (Voc) 48.68 V Short Circuit Current (Isc) 15.96 A Panel Efficiency 22.58 % Operating Temperature Range -40 - 70 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 35 A Panel Dimension (H/W/D) 2382x1134x30 mm Weight 32.4 kg Cell Number 132 Glass Type Anti-reflection Coating Glass Thickness 2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Download Manufacturer's PDF Datasheet

      Technology: Bifacial, TOPCon, N-type
      Power Range: 605 ~ 615 Wp
      Panel Efficiency: 22.4 ~ 22.77 %
      Weight: 32.4 kg
      Seller Name: Shenzhen Topsky Energy Co., Ltd.
      Country: China
