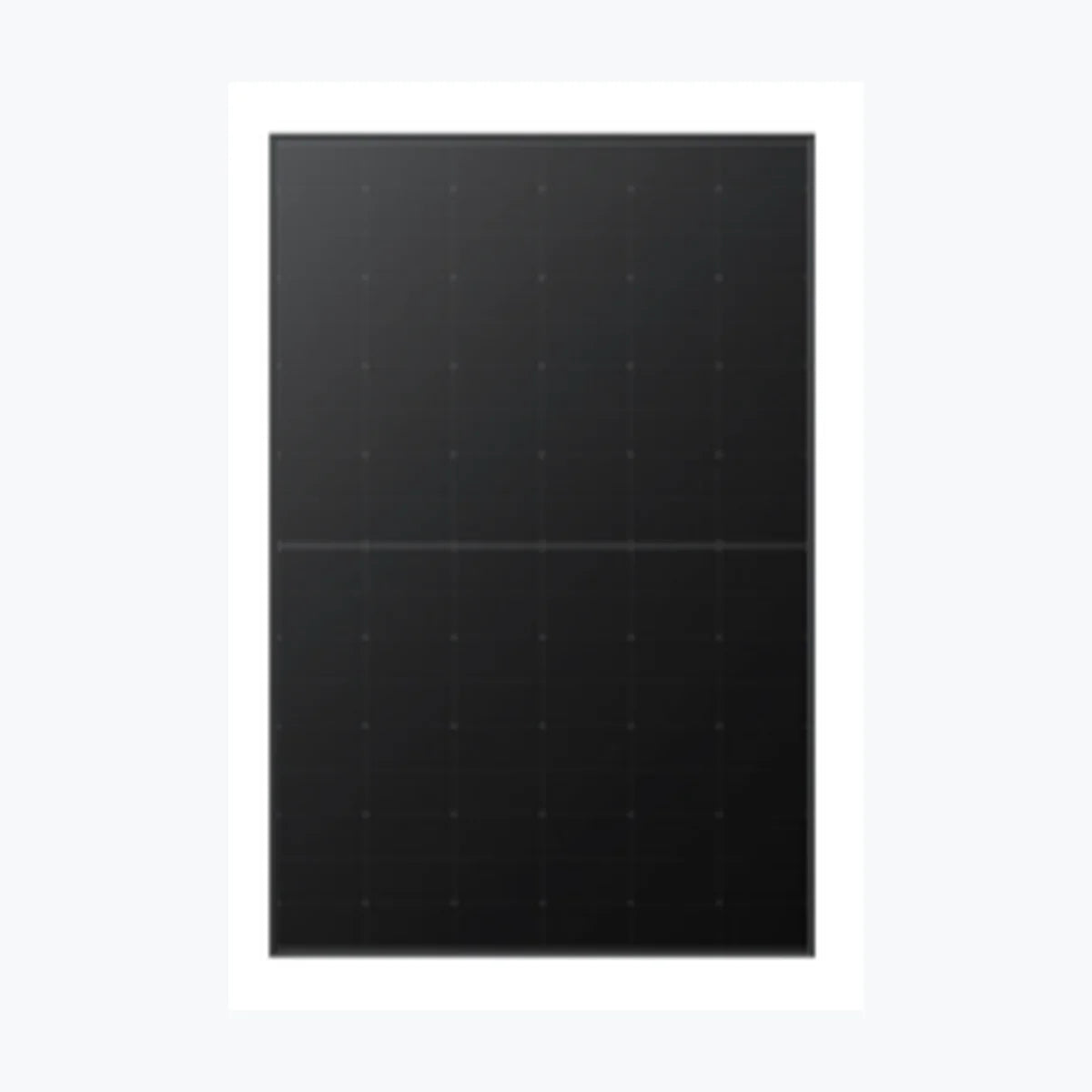

Topsky Energy LR5-54HTB-430M
PayPal Pay in 4 interest-free payments of $50.75 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-21226
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for LONGi. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. LR5-54HTB-430M Product Warranty 15 Years Power Warranty 1 Years of 98.5 %, 25 Years of 88.9 % Total Degradation Rate ⏳ 0.44 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 430 Wp Voltage at Maximum Power (Vmpp) 33.16 V Current at Maximum Power (Impp) 12.97 A Open Circuit Voltage (Voc) 39.43 V Short Circuit Current (Isc) 14 A Panel Efficiency 22 % Maximum Power (Pmax) 321 Wp Voltage at Maximum Power (Vmpp) 30.26 V Current at Maximum Power (Impp) 10.62 A Open Circuit Voltage (Voc) 37.02 V Short Circuit Current (Isc) 11.31 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.23 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1722x1134x30 mm Weight 20.8 kg Cell Number 108 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium, Black Junction Box Diodes 3 Junction Box Protection Cla
Technology: Back Contact
Power Range: 420 ~ 435 Wp
Panel Efficiency: 21.5 ~ 22.3 %
Weight: 20.8 kg
Seller Name: Shenzhen Topsky Energy Co., Ltd.
Country: China
| SKU | PES-SPS-SOL-21226 |
|---|---|
| Manufacturer | LONGi |
| Brand | |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
