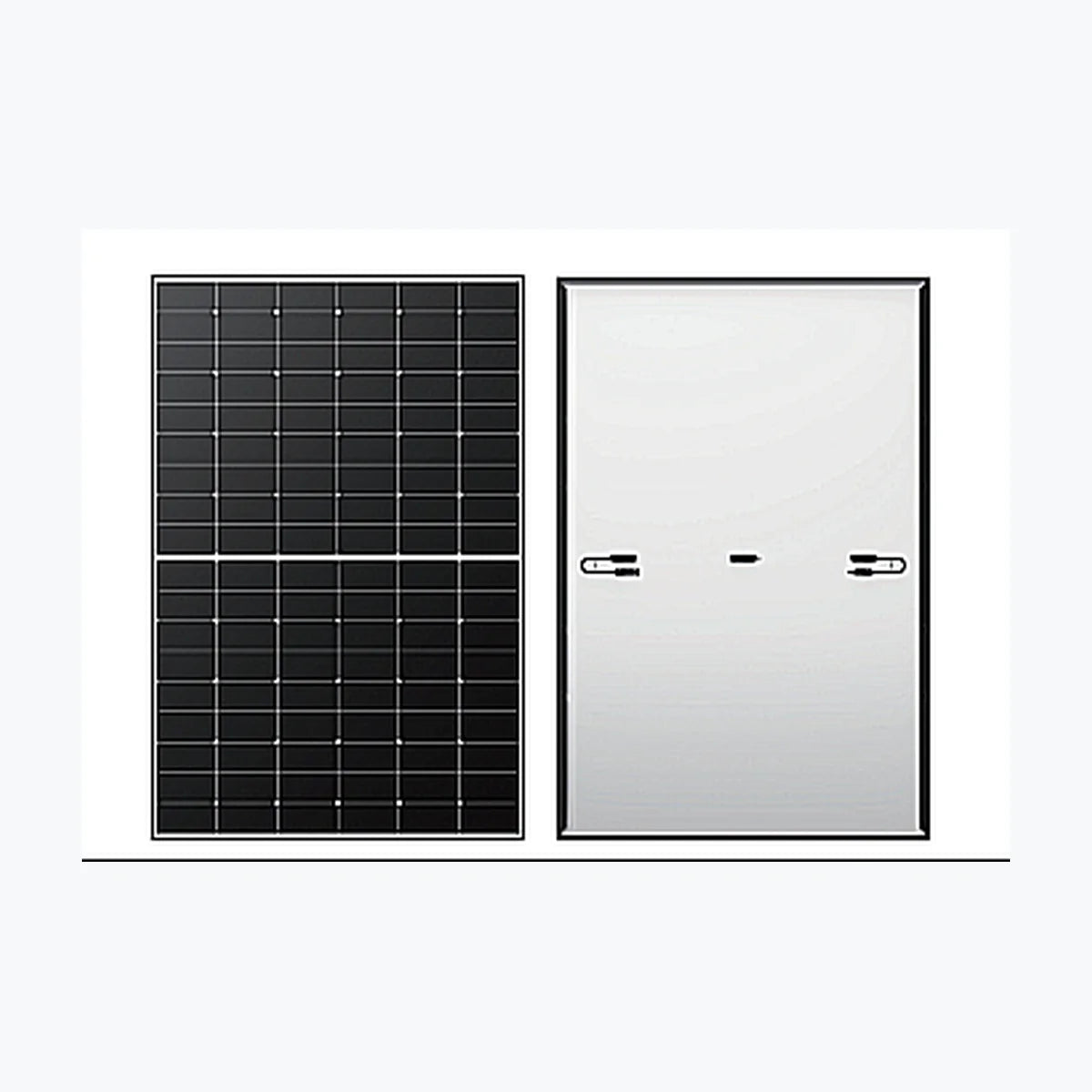

    Topsky Energy LR5-54HTH 430M

    Topsky Energy LR5-54HTH 430M

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-21231
    • Brand: LONGi
    • Container price: $54.00 USD
    • Container qty: 720
    • Odoo id: 25,483
    • Pallet price: $2.55 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Monocrystalline Model No. LR5-54HTH 430M Product Warranty 15 Years Power Warranty 1 Years of 98.5 %, 25 Years of 88.9 % Total Degradation Rate ⏳ 0.44 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 430 Wp Voltage at Maximum Power (Vmpp) 32.84 V Current at Maximum Power (Impp) 13.1 A Open Circuit Voltage (Voc) 39.13 V Short Circuit Current (Isc) 14.15 A Panel Efficiency 22 % Maximum Power (Pmax) 321 Wp Voltage at Maximum Power (Vmpp) 29.97 V Current at Maximum Power (Impp) 10.72 A Open Circuit Voltage (Voc) 36.74 V Short Circuit Current (Isc) 11.43 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.23 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1722x1134x30 mm Weight 20.8 kg Cell Number 108 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Cable Crossection

      Technology: Back Contact
      Power Range: 425 ~ 440 Wp
      Panel Efficiency: 21.8 ~ 22.5 %
      Weight: 20.8 kg
      Seller Name: Shenzhen Topsky Energy Co., Ltd.
      Country: China
