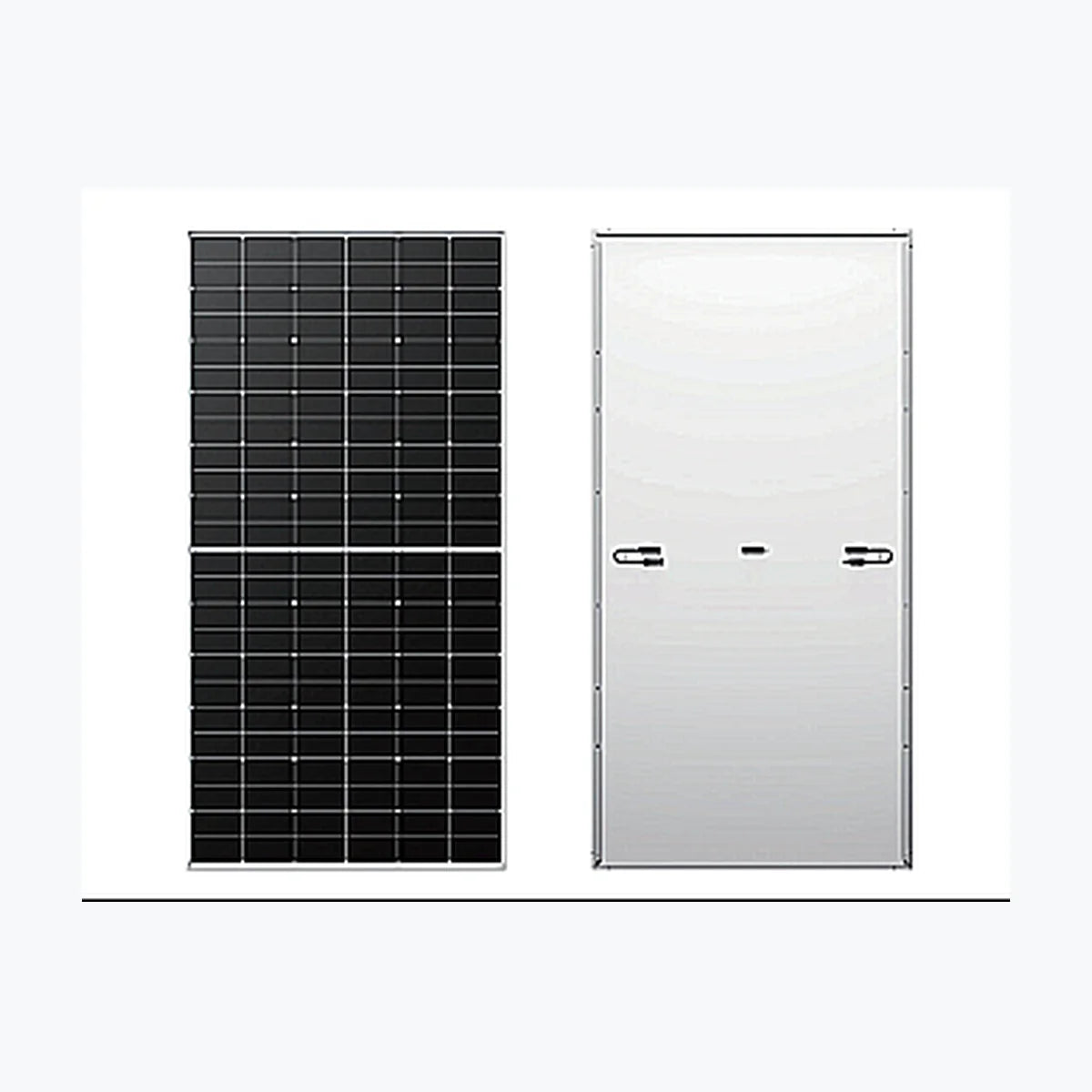

Topsky Energy LR5-72HTH 580M
PayPal Pay in 4 interest-free payments of $50.75 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-21244
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for LONGi. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. LR5-72HTH 580M Product Warranty 15 Years Power Warranty 1 Years of 98.5 %, 25 Years of 88.9 % Total Degradation Rate ⏳ 0.44 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 580 Wp Voltage at Maximum Power (Vmpp) 44.06 V Current at Maximum Power (Impp) 13.17 A Open Circuit Voltage (Voc) 52.21 V Short Circuit Current (Isc) 14.2 A Panel Efficiency 22.5 % Maximum Power (Pmax) 433 Wp Voltage at Maximum Power (Vmpp) 40.2 V Current at Maximum Power (Impp) 10.78 A Open Circuit Voltage (Voc) 49.02 V Short Circuit Current (Isc) 11.47 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.23 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2278x1134x35 mm Weight 27.5 kg Cell Number 144 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class I
Technology: Back Contact
Power Range: 570 ~ 585 Wp
Panel Efficiency: 22.1 ~ 22.6 %
Weight: 27.5 kg
Seller Name: Shenzhen Topsky Energy Co., Ltd.
Country: China
| SKU | PES-SPS-SOL-21244 |
|---|---|
| Manufacturer | LONGi |
| Brand | |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
