Out of Stock

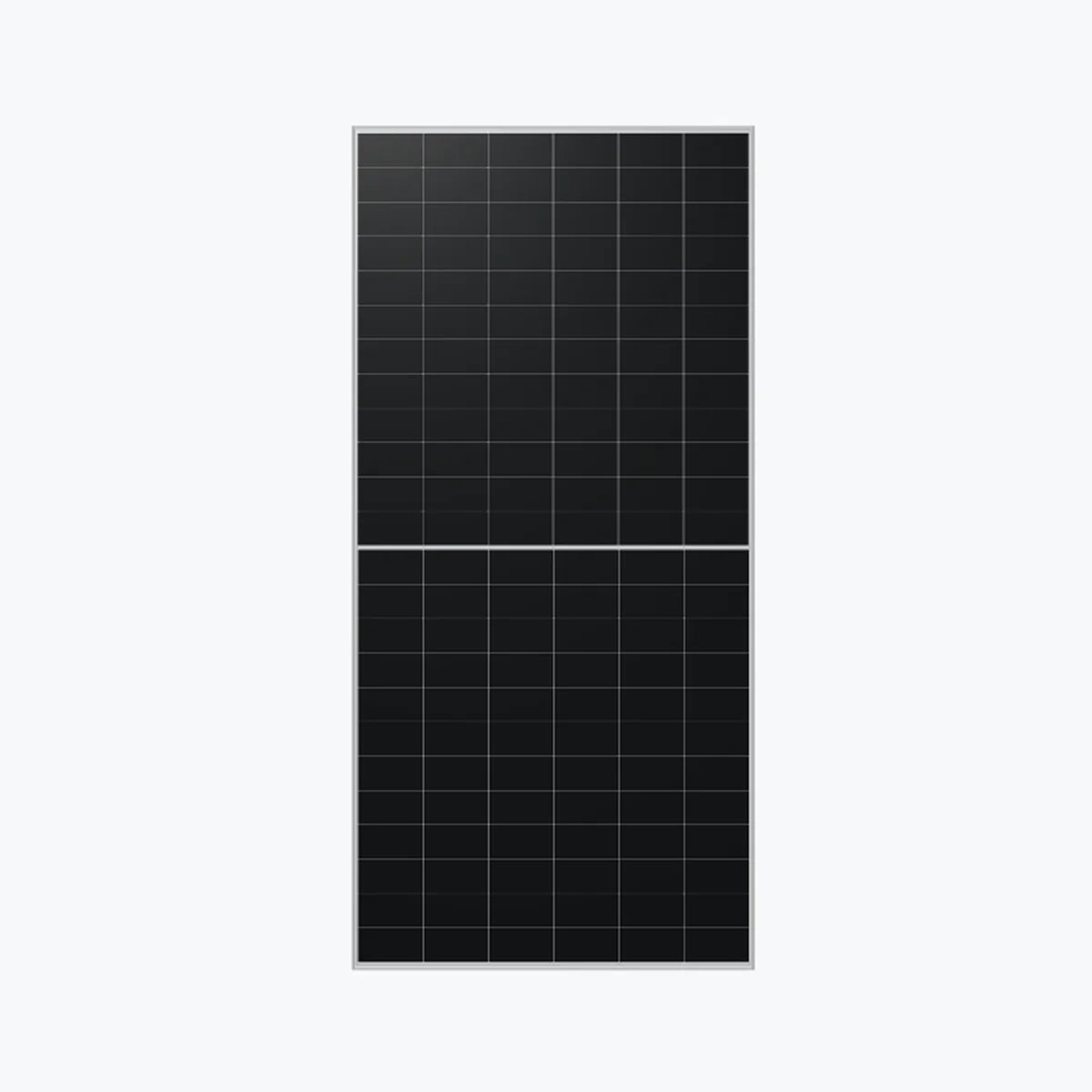

Topsky Energy LR7-54HTH-460M
Topsky Energy LR7-54HTH-460M
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-21247
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. LR7-54HTH-460M Product Warranty 15 Years Power Warranty 1 Years of 99 %, 25 Years of 89.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 460 Wp Voltage at Maximum Power (Vmpp) 33.19 V Current at Maximum Power (Impp) 13.86 A Open Circuit Voltage (Voc) 39.35 V Short Circuit Current (Isc) 14.86 A Panel Efficiency 22.5 % Maximum Power (Pmax) 343.7 Wp Voltage at Maximum Power (Vmpp) 30.29 V Current at Maximum Power (Impp) 11.35 A Open Circuit Voltage (Voc) 36.95 V Short Circuit Current (Isc) 12 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.28 %/°C Temperature Coefficient of Voc -0.23 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1800x1134x30 mm Weight 21.6 kg Cell Number 108 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Cable Length 1200 mm Download Manufacturer's PDF Datasheet
Technology: Back Contact
Power Range: 455 ~ 465 Wp
Panel Efficiency: 22.3 ~ 22.8 %
Weight: 21.6 kg
Seller: Shenzhen Topsky Energy Co., Ltd.
Country: China -
