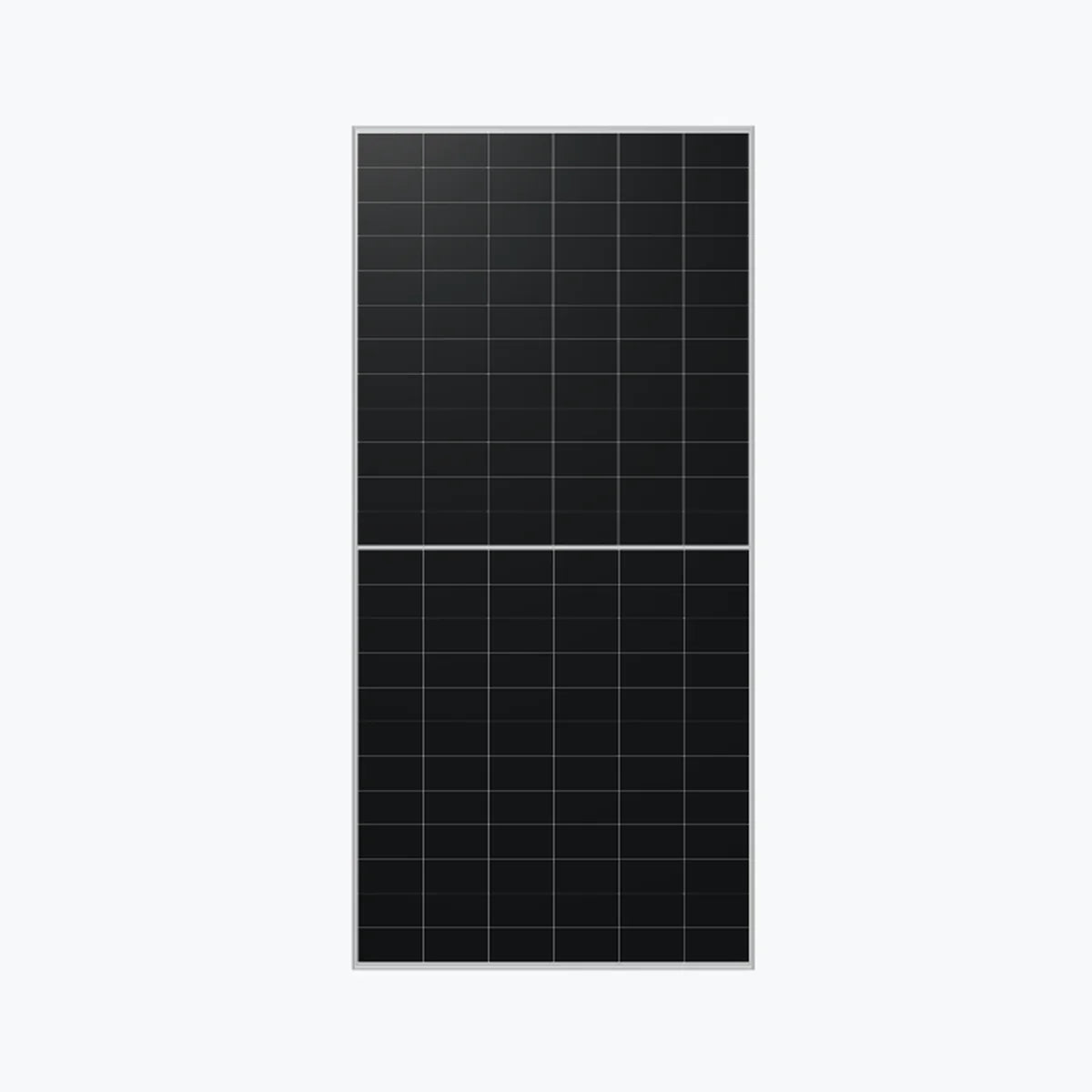

    Topsky Energy LR7-72HTH-605M

    Topsky Energy LR7-72HTH-605M

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-21254
    • Container price: $48.60 USD
    • Container qty: 720
    • Odoo id: 25,479
    • Pallet price: $2.29 USD
    • Pallet qty: 30
    • Unit price: $0.09 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. LR7-72HTH-605M Product Warranty 15 Years Power Warranty 1 Years of 99 %, 25 Years of 89.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 605 Wp Voltage at Maximum Power (Vmpp) 44.03 V Current at Maximum Power (Impp) 13.75 A Open Circuit Voltage (Voc) 52.27 V Short Circuit Current (Isc) 14.74 A Panel Efficiency 22.4 % Maximum Power (Pmax) 452.1 Wp Voltage at Maximum Power (Vmpp) 40.18 V Current at Maximum Power (Impp) 11.26 A Open Circuit Voltage (Voc) 49.17 V Short Circuit Current (Isc) 11.91 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.28 %/°C Temperature Coefficient of Voc -0.23 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2382x1134x30 mm Weight 28.5 kg Cell Number 144 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Cable Crossecti

      Technology: Back Contact
      Power Range: 605 ~ 615 Wp
      Panel Efficiency: 22.4 ~ 22.8 %
      Weight: 28.5 kg
      Seller Name: Shenzhen Topsky Energy Co., Ltd.
      Country: China
