• Topsky Energy LR7-72HVD-625M
1 1

Out of Stock

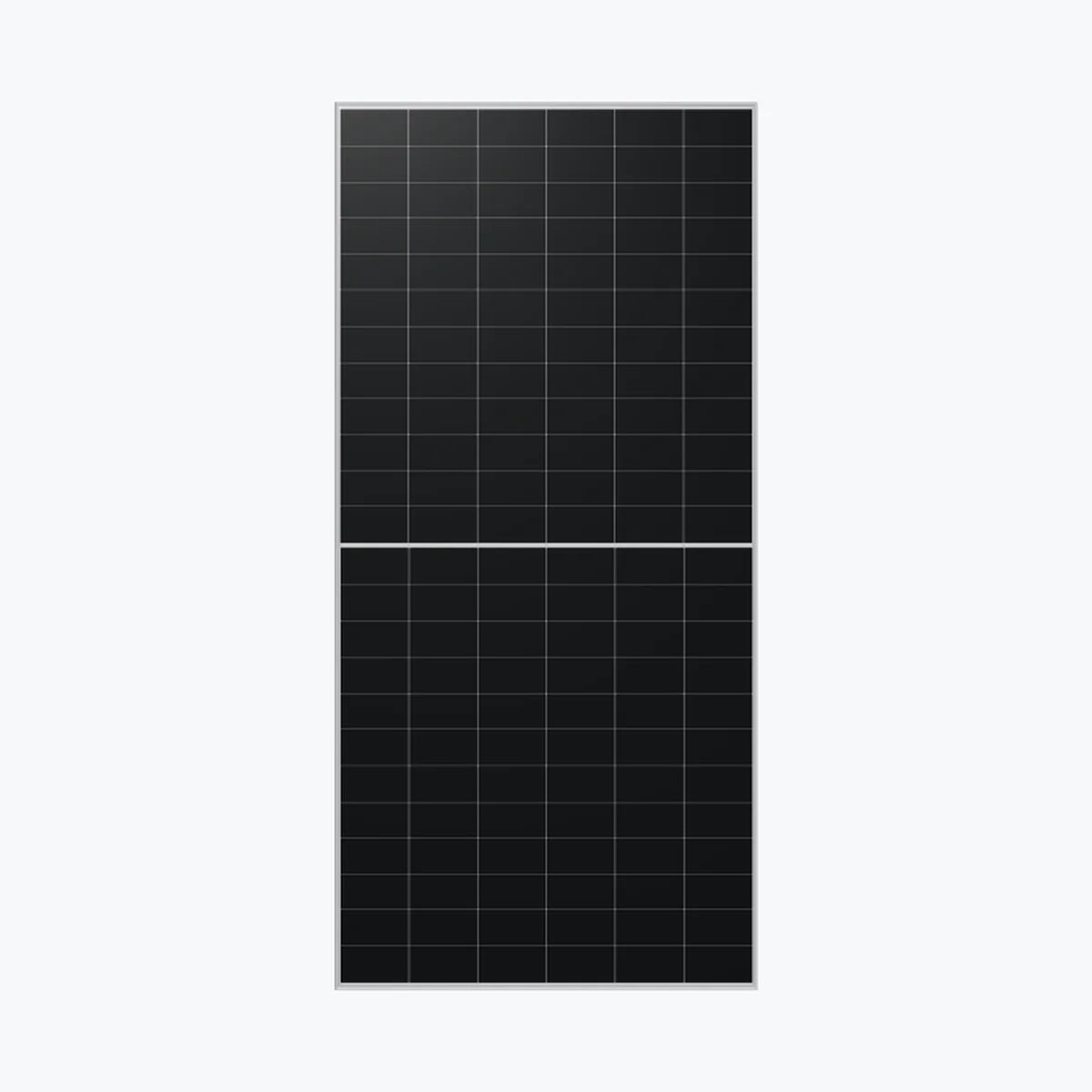

Topsky Energy LR7-72HVD-625M

Topsky Energy LR7-72HVD-625M

$5.00 USD
$5.00 USD
Sale Sold out
Shipping calculated at checkout.
Return policy

Specification

  • SKU:PES-SPS-SOL-21257
  • Container price: $48.60 USD
  • Container qty: 720
  • Pallet price: $2.29 USD
  • Pallet qty: 30
  • Unit price: $0.09 USD
View full details

Product Description

  • Type Monocrystalline Model No. LR7-72HVD-625M Product Warranty 15 Years Power Warranty 20 Years of 92.35 %, 30 Years of 88.85 % Total Degradation Rate ⏳ 0.37 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 625 Wp Voltage at Maximum Power (Vmpp) 44.16 V Current at Maximum Power (Impp) 14.16 A Open Circuit Voltage (Voc) 53.3 V Short Circuit Current (Isc) 14.85 A Panel Efficiency 23.1 % Maximum Power (Pmax) 475.8 Wp Voltage at Maximum Power (Vmpp) 41.97 V Current at Maximum Power (Impp) 11.35 A Open Circuit Voltage (Voc) 50.65 V Short Circuit Current (Isc) 11.93 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.26 %/°C Temperature Coefficient of Voc -0.2 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2382x1134x30 mm Weight 33.5 kg Cell Number 144 Glass Type Tempered Glass Thickness 2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Cable Length 400 mm Download Manufacturer's PDF Datasheet

    Technology: Back Contact
    Power Range: 625 ~ 640 Wp
    Panel Efficiency: 23.1 ~ 23.7 %
    Weight: 33.5 kg
    Seller: Shenzhen Topsky Energy Co., Ltd.
    Country: China
