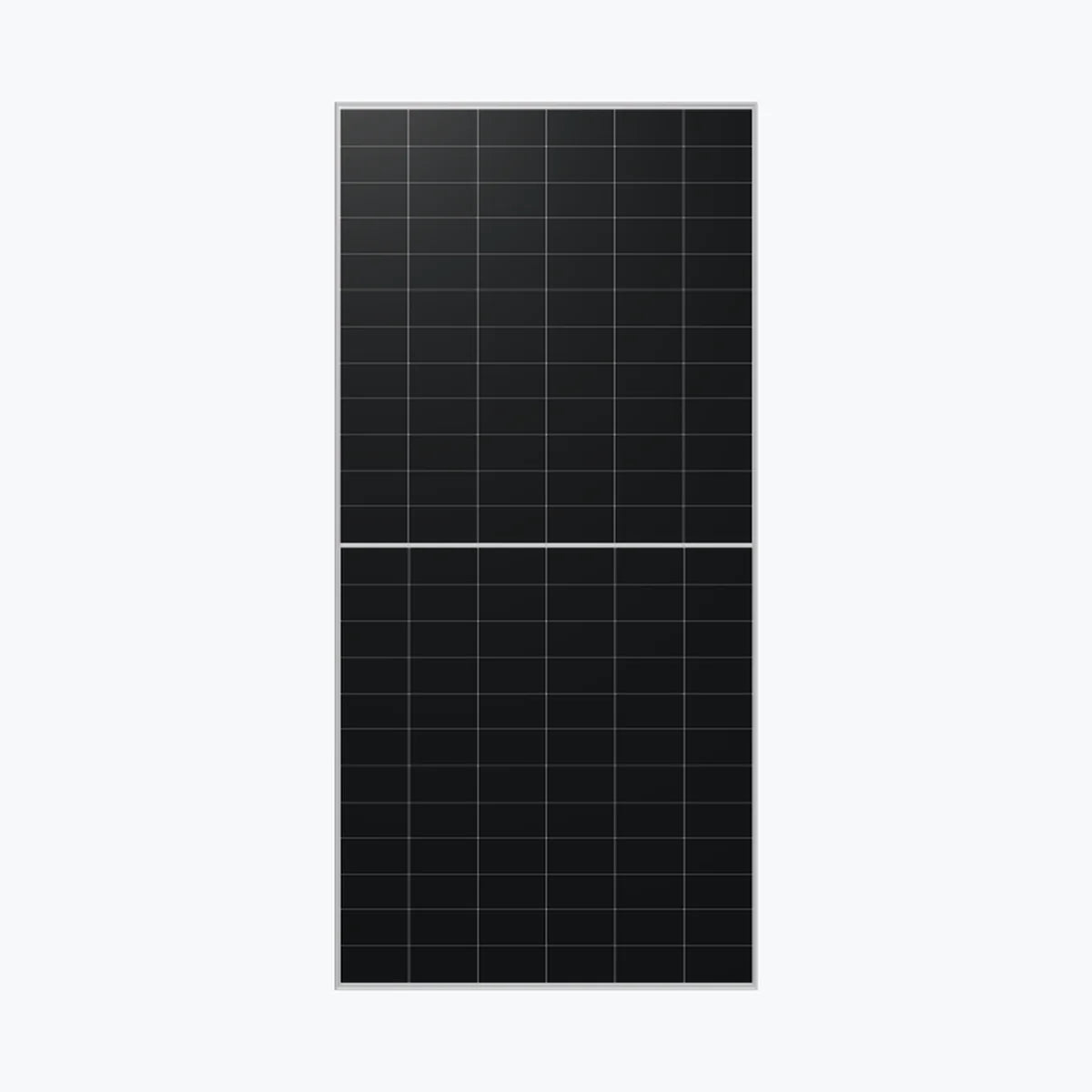

Topsky Energy LR7-72HVD-640M
Topsky Energy LR7-72HVD-640M
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-21260
- Container price:
- Container qty:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. LR7-72HVD-640M Product Warranty 15 Years Power Warranty 20 Years of 92.35 %, 30 Years of 88.85 % Total Degradation Rate ⏳ 0.37 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 640 Wp Voltage at Maximum Power (Vmpp) 44.46 V Current at Maximum Power (Impp) 14.4 A Open Circuit Voltage (Voc) 53.6 V Short Circuit Current (Isc) 15.09 A Panel Efficiency 23.7 % Maximum Power (Pmax) 487.2 Wp Voltage at Maximum Power (Vmpp) 42.25 V Current at Maximum Power (Impp) 11.54 A Open Circuit Voltage (Voc) 50.94 V Short Circuit Current (Isc) 12.12 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.26 %/°C Temperature Coefficient of Voc -0.2 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2382x1134x30 mm Weight 33.5 kg Cell Number 144 Glass Type Tempered Glass Thickness 2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Cable Length 400 mm Download Manufacturer's PDF Datasheet
Technology: Back Contact
Power Range: 625 ~ 640 Wp
Panel Efficiency: 23.1 ~ 23.7 %
Weight: 33.5 kg
Seller: Shenzhen Topsky Energy Co., Ltd.
Country: China -
