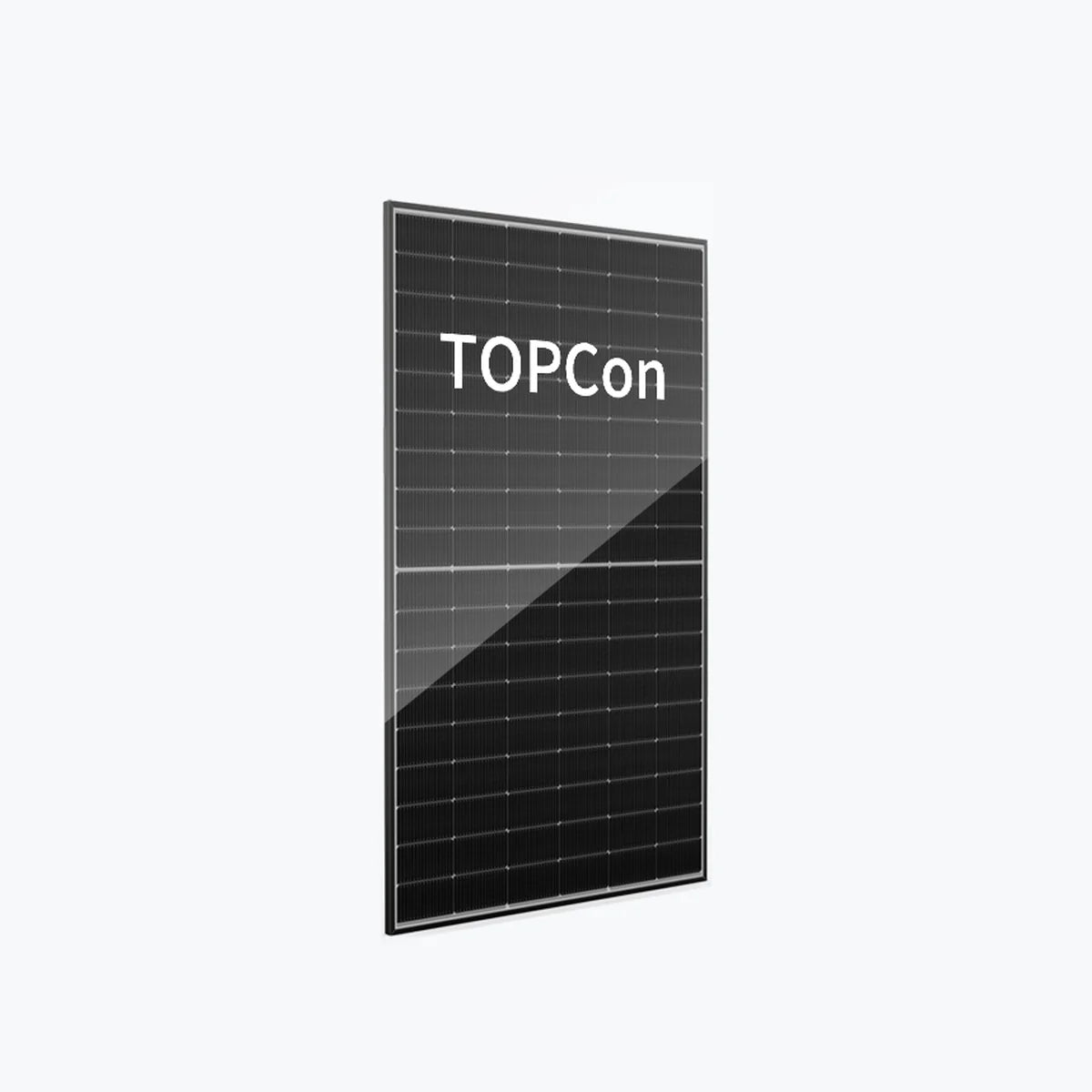

Topsky Energy RSM108-11-500BNDG
Topsky Energy RSM108-11-500BNDG
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-21268
- Container price:
- Container qty:
- Odoo id:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. RSM108-11-500BNDG Product Warranty 15 Years Power Warranty 10 Years of 95.4 %, 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 500 Wp Voltage at Maximum Power (Vmpp) 33.05 V Current at Maximum Power (Impp) 15.13 A Open Circuit Voltage (Voc) 40.02 V Short Circuit Current (Isc) 15.88 A Panel Efficiency 22.5 % Maximum Power (Pmax) 378.7 Wp Voltage at Maximum Power (Vmpp) 30.67 V Current at Maximum Power (Impp) 12.35 A Open Circuit Voltage (Voc) 37.22 V Short Circuit Current (Isc) 13.02 A Temperature 44±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 35 A Panel Dimension (H/W/D) 1961x1134x30 mm Weight 27 kg Cell Number 108 Glass Type Anti-reflection Coating, Tempered Glass Thickness 2 mm Frame Type Anodized Aluminium, Black Junction Box Dio
Technology: Bifacial, TOPCon, N-type
Power Range: 495 ~ 510 Wp
Panel Efficiency: 22.3 ~ 22.9 %
Weight: 27 kg
Seller Name: Shenzhen Topsky Energy Co., Ltd.
Country: China -
