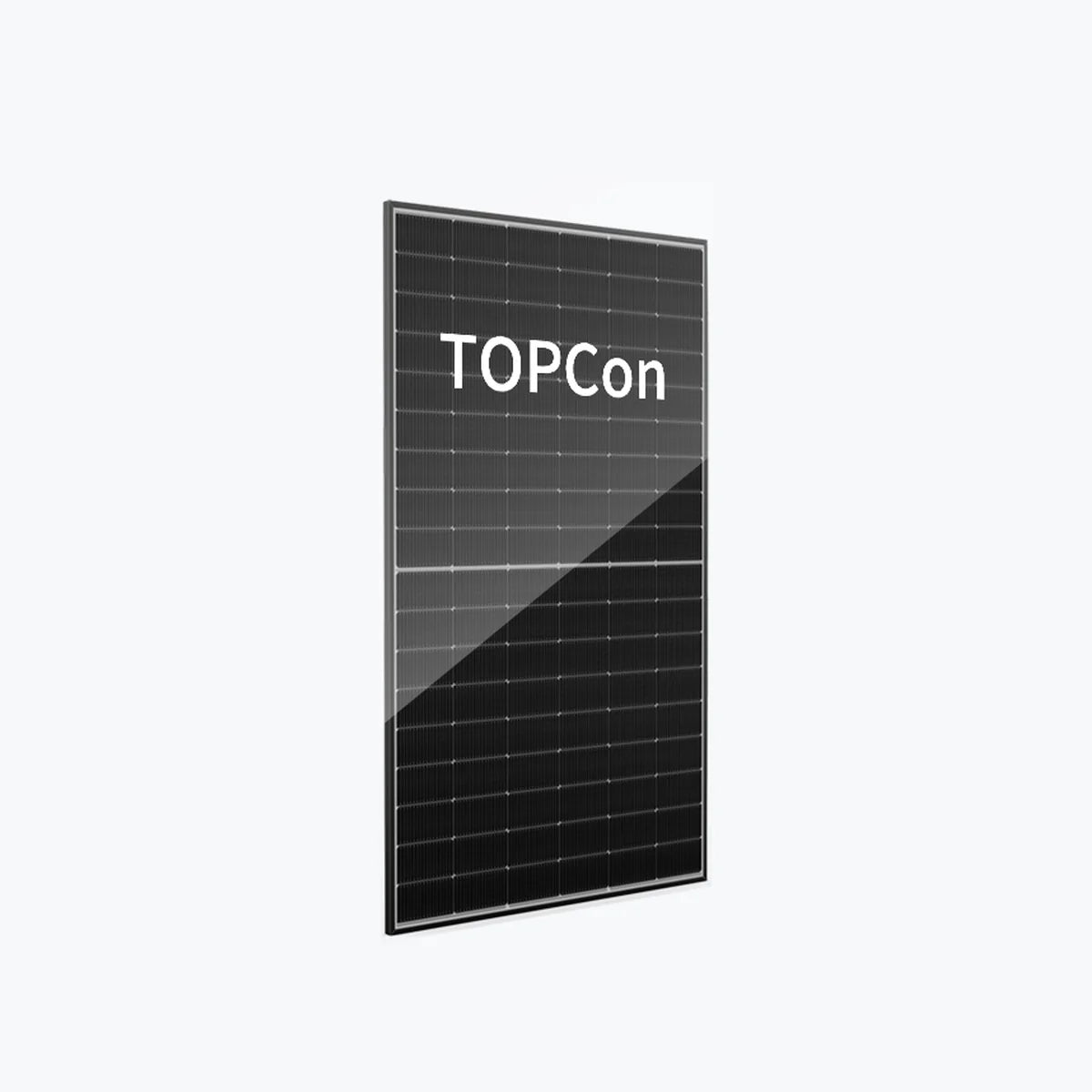

Topsky Energy RSM108-11-510BNDG
PayPal Pay in 4 interest-free payments of $44.50 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-21270
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. RSM108-11-510BNDG Product Warranty 15 Years Power Warranty 10 Years of 95.4 %, 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 510 Wp Voltage at Maximum Power (Vmpp) 33.45 V Current at Maximum Power (Impp) 15.25 A Open Circuit Voltage (Voc) 40.42 V Short Circuit Current (Isc) 16.02 A Panel Efficiency 22.9 % Maximum Power (Pmax) 386.3 Wp Voltage at Maximum Power (Vmpp) 31.04 V Current at Maximum Power (Impp) 12.44 A Open Circuit Voltage (Voc) 37.59 V Short Circuit Current (Isc) 13.14 A Temperature 44±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 35 A Panel Dimension (H/W/D) 1961x1134x30 mm Weight 27 kg Cell Number 108 Glass Type Anti-reflection Coating, Tempered Glass Thickness 2 mm Frame Type Anodized Aluminium, Black Junction Box Dio
Technology: Bifacial, TOPCon, N-type
Power Range: 495 ~ 510 Wp
Panel Efficiency: 22.3 ~ 22.9 %
Weight: 27 kg
Seller Name: Shenzhen Topsky Energy Co., Ltd.
Country: China
