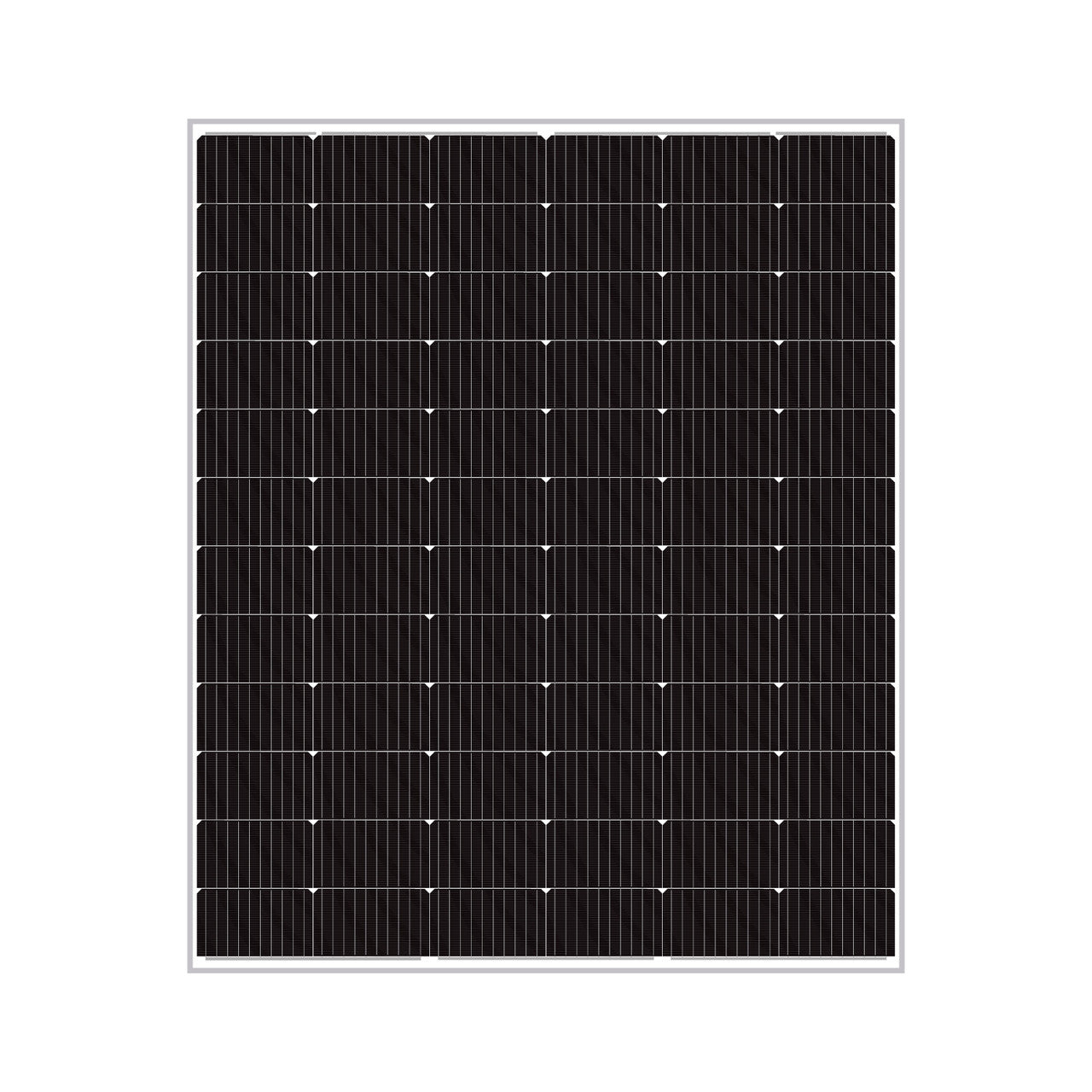

Topsky Energy RSM132-8-700BHDG
Topsky Energy RSM132-8-700BHDG
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-21277
- Container price:
- Container qty:
- Odoo id:
- Pallet price:
- Pallet qty:
- Unit price:
Product Description
-
Type Monocrystalline Model No. RSM132-8-700BHDG Product Warranty 15 Years Power Warranty 30 Years of 90.3 % Total Degradation Rate ⏳ 0.32 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 700 Wp Voltage at Maximum Power (Vmpp) 41.78 V Current at Maximum Power (Impp) 16.77 A Open Circuit Voltage (Voc) 49.83 V Short Circuit Current (Isc) 17.82 A Panel Efficiency 22.5 % Maximum Power (Pmax) 534.5 Wp Voltage at Maximum Power (Vmpp) 39.07 V Current at Maximum Power (Impp) 13.68 A Open Circuit Voltage (Voc) 46.69 V Short Circuit Current (Isc) 14.61 A Temperature 43±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.24 %/°C Temperature Coefficient of Voc -0.22 %/°C Temperature Coefficient of Isc 0.047 %/°C Maximum System Voltage 1500 V Series Fuse Rating 35 A Panel Dimension (H/W/D) 2384x1303x35 mm Weight 40 kg Cell Number 132 Glass Type Anti-reflection Coating Glass Thickness 2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP
Technology: Bifacial, HJT, N-type
Power Range: 700 ~ 715 Wp
Panel Efficiency: 22.5 ~ 23 %
Weight: 37.5 kg
Seller Name: Shenzhen Topsky Energy Co., Ltd.
Country: China -
