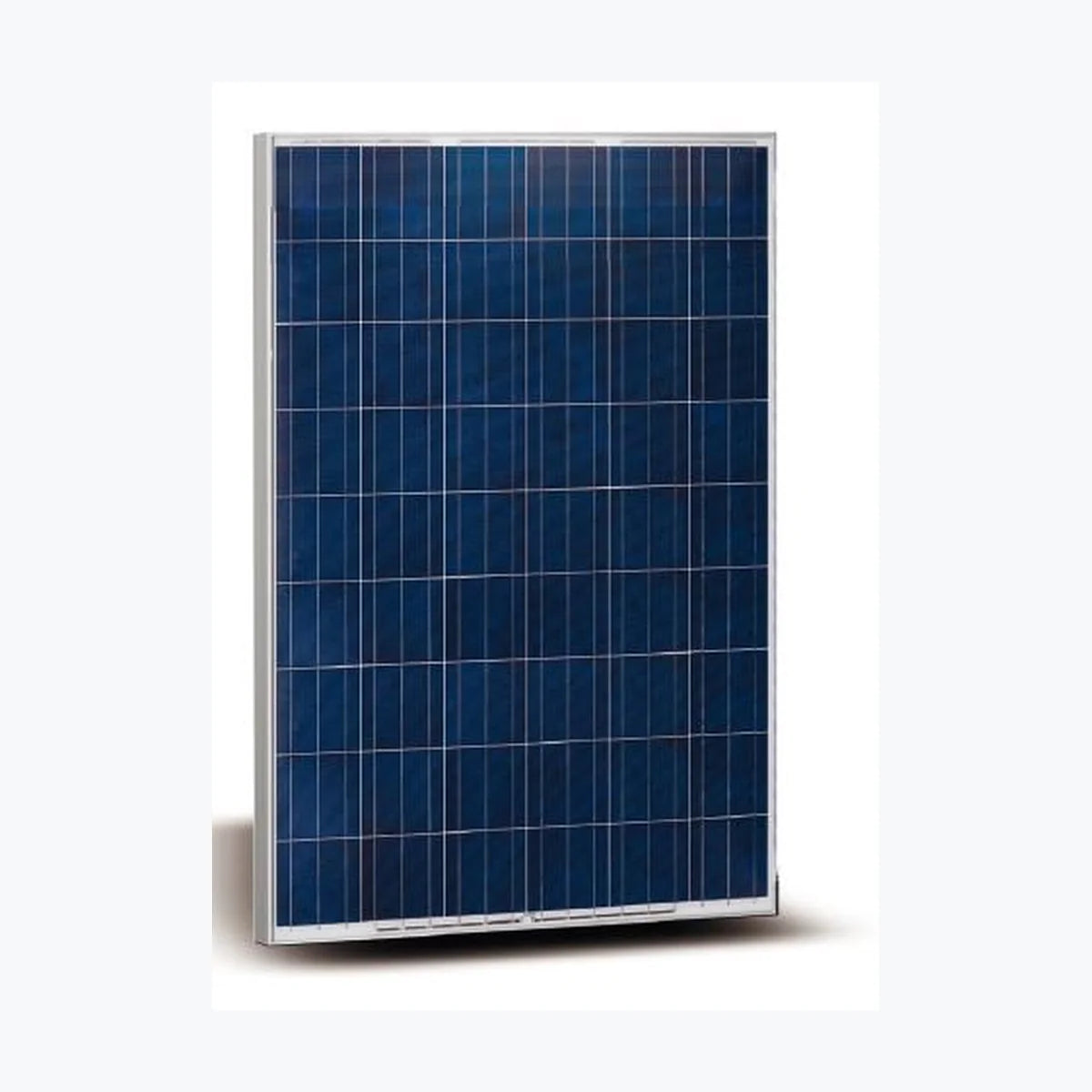

TPL Solar TPL220P-54
PayPal Pay in 4 interest-free payments of $27.50 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-20343
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for ENF Solar. 50,000+ SKUs from 169 authorized brands.
Type Polycrystalline Model No. TPL220P-54 Product Warranty 12 Years Power Warranty 12 Years of 90.2 %, 30 Years of 80.7 % Total Degradation Rate ⏳ 0.64 % Power Tolerance 0 ~ +2.17 % Maximum Power (Pmax) 220 Wp Voltage at Maximum Power (Vmpp) 27.92 V Current at Maximum Power (Impp) 7.88 A Open Circuit Voltage (Voc) 34.02 V Short Circuit Current (Isc) 8.62 A Panel Efficiency 14.98 % Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.36 %/°C Temperature Coefficient of Voc -0.36 %/°C Temperature Coefficient of Isc 0.06 %/°C Maximum System Voltage 1000 V Panel Dimension (H/W/D) 1480x992x35 mm Weight 16.8 kg Cell Size 156×156 mm Cell Number 54 Junction Box Diodes 3 Junction Box Protection Class IP 67 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 900 mm Download Manufacturer's PDF Datasheet
Power Range: 210 ~ 235 Wp
Panel Efficiency: 14.3 ~ 16.01 %
Weight: 16.8 kg
Seller Name: TPL Energy Co., Limited
Country: China
| SKU | PES-SPS-SOL-20343 |
|---|---|
| Manufacturer | ENF Solar |
| Container price | |
| Container qty | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
