    Out of Stock

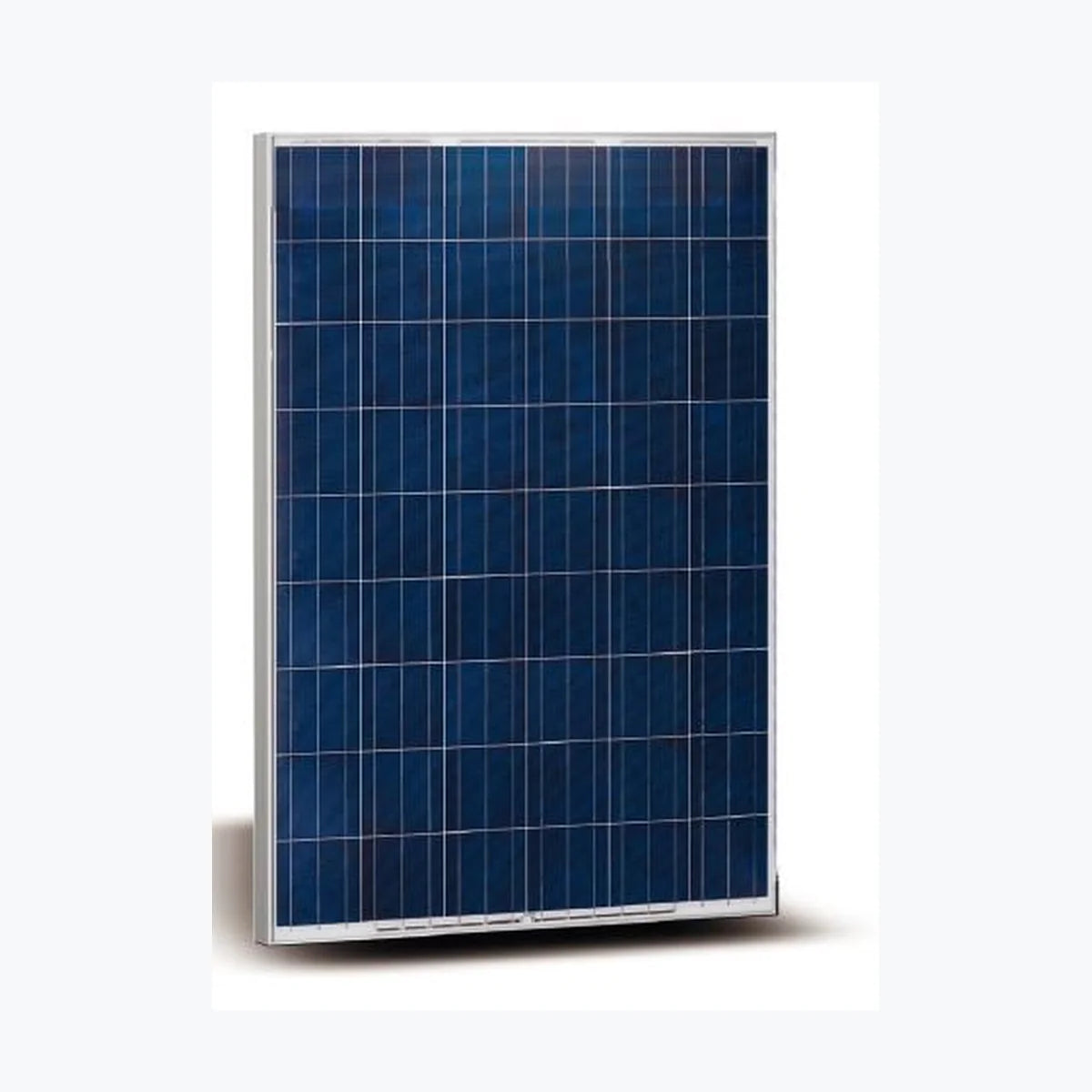

    TPL Solar TPL235P-54

    TPL Solar TPL235P-54

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-20347
    • Container price: $226.80 USD
    • Container qty: 720
    • Pallet price: $10.71 USD
    • Pallet qty: 30
    • Unit price: $0.42 USD
    View full details

    Product Description

    • Type Polycrystalline Model No. TPL235P-54 Product Warranty 12 Years Power Warranty 12 Years of 90.2 %, 30 Years of 80.7 % Total Degradation Rate ⏳ 0.64 % Power Tolerance 0 ~ +2.17 % Maximum Power (Pmax) 235 Wp Voltage at Maximum Power (Vmpp) 28.49 V Current at Maximum Power (Impp) 8.25 A Open Circuit Voltage (Voc) 34.1 V Short Circuit Current (Isc) 9.28 A Panel Efficiency 16.01 % Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.36 %/°C Temperature Coefficient of Voc -0.36 %/°C Temperature Coefficient of Isc 0.06 %/°C Maximum System Voltage 1000 V Panel Dimension (H/W/D) 1480x992x35 mm Weight 16.8 kg Cell Size 156×156 mm Cell Number 54 Junction Box Diodes 3 Junction Box Protection Class IP 67 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 900 mm Download Manufacturer's PDF Datasheet

      Power Range: 210 ~ 235 Wp
      Panel Efficiency: 14.3 ~ 16.01 %
      Weight: 16.8 kg
      Seller Name: TPL Energy Co., Limited
      Country: China
