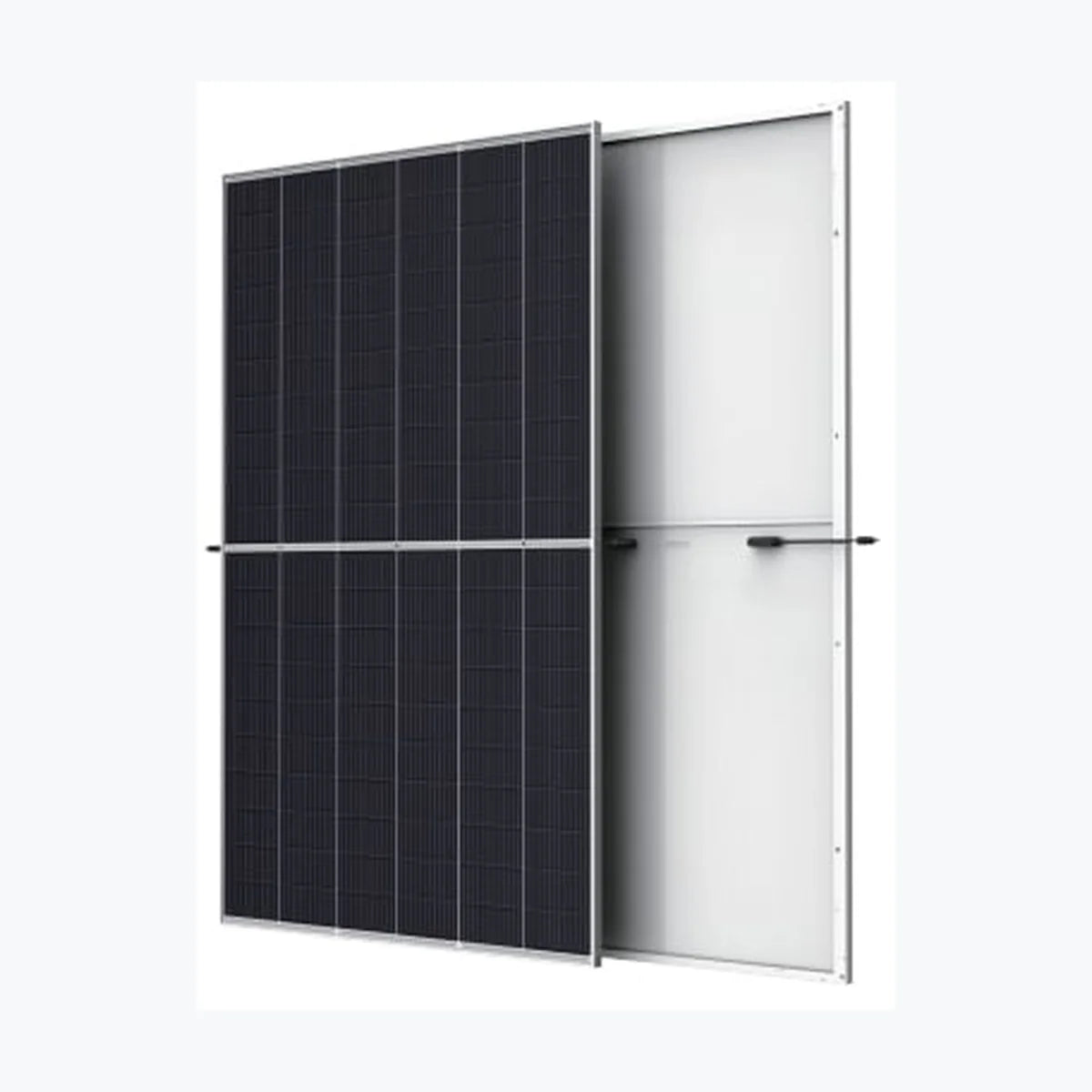

    TPL Solar TPL660M-132HC

    TPL Solar TPL660M-132HC

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-20407
    • Container price: $27.00 USD
    • Container qty: 720
    • Odoo id: 24,189
    • Pallet price: $1.27 USD
    • Pallet qty: 30
    • Unit price: $0.05 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. TPL660M-132HC Product Warranty 25 Years Power Warranty 12 Years of 90.2 %, 25 Years of 80.7 % Total Degradation Rate ⏳ 0.77 % Power Tolerance 0 ~ +0.5 % Maximum Power (Pmax) 720 Wp Voltage at Maximum Power (Vmpp) 37.8 V Current at Maximum Power (Impp) 17.47 A Open Circuit Voltage (Voc) 45.7 V Short Circuit Current (Isc) 18.53 A Panel Efficiency 21.2 % Maximum Power (Pmax) 500 Wp Voltage at Maximum Power (Vmpp) 35.3 V Current at Maximum Power (Impp) 14.17 A Open Circuit Voltage (Voc) 43 V Short Circuit Current (Isc) 14.93 A Temperature 43±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.34 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Panel Dimension (H/W/D) 2384x1303x35 mm Weight 33.9 kg Cell Number 132 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 280 mm Download Manufacturer's PDF Datasheet

      Technology: Bifacial, TOPCon, HJT, N-type
      Power Range: 700 ~ 730 Wp
      Panel Efficiency: 20.9 ~ 21.6 %
      Weight: 33.9 kg
      Seller Name: TPL Energy Co., Limited
      Country: China
