Trina 420W Solar Panel 144 Cell All-Black Bifacial TSM-420NE09RC.05 Clearance
Trina 420W Solar Panel 144 Cell All-Black Bifacial TSM-420NE09RC.05 Clearance
Regular price
$157.00 USD
Regular price
Sale price
$157.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SPL-0174
- Documents:
- Height: 1.18
- Length: 69.37
- Width: 44.65
Product Description
-

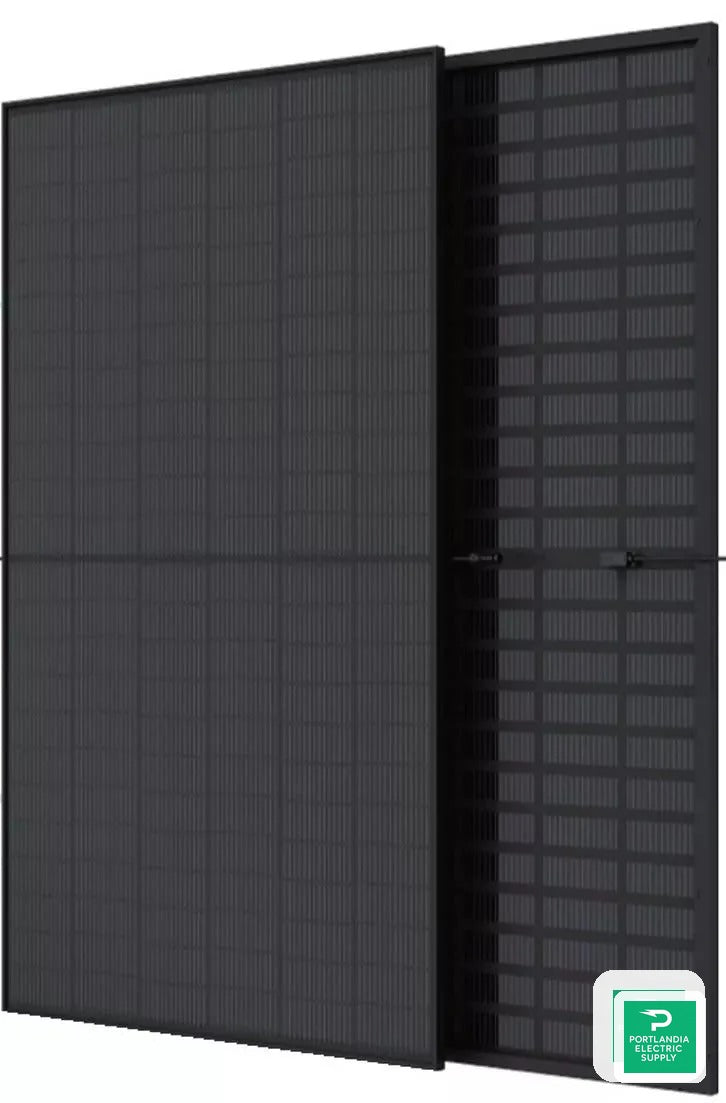

The Trina Vertex S+ TSM‑420NE09RC.05 is an all-black, high-performance bifacial solar panel with 144 TOPCon half-cut cells and dual-glass design.
Rated Power: 420 W • Efficiency: ~21.0 %
Max System Voltage: 1500 V DC • MC4-EVO2 connectors • Operating range: −40 °F to +185 °F (approximately −40 °C to +85 °C)
Mechanical rating: 6000 Pa snow / 4000 Pa wind load; durable 30 mm black aluminum frame.
Dimensions: 69.37″ × 44.65″ × 1.18″ (1762 × 1134 × 30 mm) • Weight: 47.06 lb (21.8 kg)
Warranty: 25‑year product warranty and 25‑year linear power warranty (max 1 % first-year degradation, ~0.4 % annually, ≥ 89.4 % output after 25 years).
-
