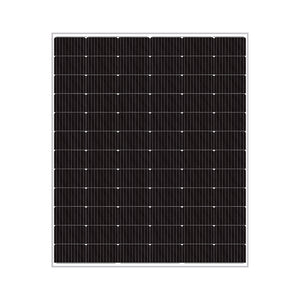

TSEC TS54-CMH-430 H1 TOPCon Monocrystalline Solar Panel
TS54-CMH-430 H1 | TOPCon | 108 Monocrystalline Cells | Mono | 1500V System Voltage
Product Overview
The TSEC TS54-CMH-430 H1 TOPCon Monocrystalline Solar Panel delivers exceptional performance for modern energy systems. This advanced 430-watt panel utilizes cutting-edge TOPCon technology to maximize power output. Built with 108 high-quality monocrystalline cells, it achieves an impressive 22% efficiency rating. The robust design ensures reliable operation in diverse weather conditions. Its black frame blends seamlessly with various architectural styles. Manufactured in Taiwan by TSEC Corporation, this panel represents green energy innovation. The low degradation rate guarantees long-term value for your investment. Ideal for residential and commercial solar installations seeking high efficiency.
Key Benefits
High Efficiency: Achieves 22% module efficiency for maximum power generation per square meter.
TOPCon Technology: Uses advanced N-type cells to reduce degradation and boost low-light response.
Long Warranty: Includes a 12-year material warranty and a 30-year linear power warranty.
Durability: Features an anti-salt mist frame and IP68 junction box for harsh environments.
Low LCOE: Delivers lower levelized cost of energy through superior performance and longevity.
How It Works
This solar panel converts sunlight into electricity using advanced photovoltaic principles. The TOPCon cell structure captures more photons than standard cells. This design minimizes electron loss during energy conversion. The result is higher voltage and current output under real conditions. The panel operates efficiently even in low-light or high-temperature scenarios. Its robust construction ensures consistent performance over decades of use.
Photon Absorption: Sunlight hits the 108 monocrystalline cells, releasing electrons to generate current. The TOPCon layer captures additional photons for extra power.
Electron Flow: Released electrons flow through the internal circuit to create usable electricity. The anti-salt mist frame protects connections from corrosion.
Energy Conversion: The panel outputs 430W at standard test conditions. Voltage remains stable at 33.16V for optimal system compatibility.
Technical Specifications
| Cell Type | Monocrystalline TOPCon |
| Cell Count | 108 Cells (6x18) |
| Max Power (Pmax) | 430 Wp |
| Module Efficiency | 22% |
| Voltage at Max Power (Vmpp) | 33.16 V |
| Current at Max Power (Impp) | 12.98 A |
| Open Circuit Voltage (Voc) | 39.06 V |
| Short Circuit Current (Isc) | 13.57 A |
| Power Tolerance | -3% to +3% |
| Max System Voltage | 1500 V |
| Series Fuse Rating | 25 A |
| Dimensions (H/W/D) | 1723 x 1134 x 35 mm |
| Weight | 21.5 kg |
| Junction Box Protection | IP68 |
| Bypass Diodes | 3 |
| Temperature Coefficient (Pmax) | -0.29%/°C |
| Operating Temp Range | -40°C to +85°C |
| Nominal Operating Temp | 45±2°C |
| Cable Length | 1500 mm |
| Cable Cross-section | 4 mm² |
| Frame Type | Black Anti-Salt Mist |
| Connector Type | EVO-2 Compatible |
| Power Degradation (30yr) | 87.4% Remaining |
| Annual Degradation Rate | 0.42% |
Certifications & Compliance
Certifications: IEC 61215:2021, IEC 61730-1:2021, IEC 61730-2:2021, UL 61730
Inverter Compatibility: Compatible with EVO-2 and standard PV inverters
Environmental: ISO 14001:2015 Environmental Management, ISO 9001:2015 Quality
Warranty: 12-year material and workmanship warranty, 30-year linear power warranty (87.4% output)
