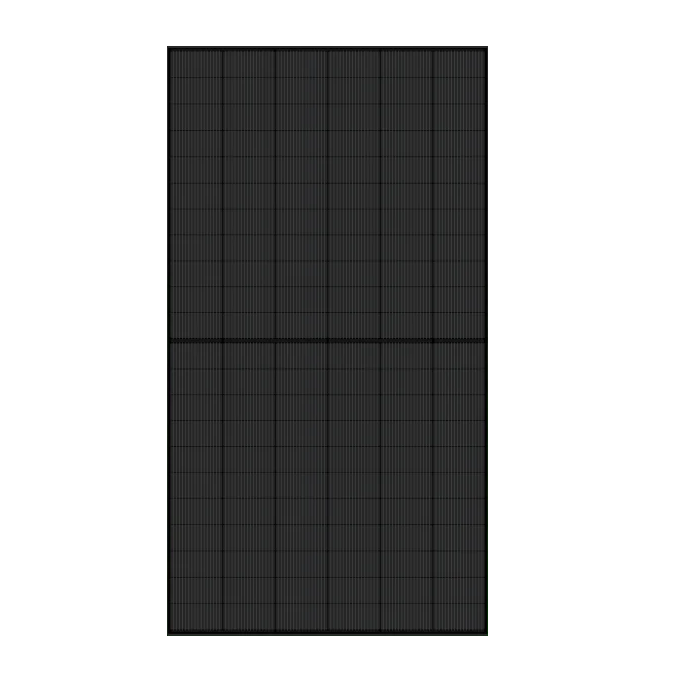

TSEC 525W Solar Panel (TS66-CMH- H1)

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

TSEC 525W Solar Panel (TS66-CMH- H1)

Trusted by 1,000s of Contractors & Installers

Ships Direct from Manufacturer — typically leaves the dock in 3–7 business days

SKU PES-SPS-SOL-20453

OEM Authorized Dealer Full OEM Warranty

$180.00 USD

~~$0.01~~ $180.00 USD

Sold out

Quantity

Sold by the pallet (10) — PowerLink & trade: request 10+

Sold by the pallet (10) PowerLink Network & trade customers can request 10+ →$0.34/W

Buying 5+ pallets or a truckload?Get a Volume Quote →

Offloading overstock or decommissioned gear? We buy surplus equipment →

Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you

Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.

SKU: PES-SPS-SOL-20453
Unit price: $0.34/W
Min purchase: 10 pcs

Complete the job

Compatible gear contractors pair with this item

Microinverter APsystems QT2 1.7kW 3-Ph Microinverter 124062

$407.00

Racking kit Racking Hardware Kit — 20-panel System

$1,596.43

PV wire Omni Cable 8 AWG RHW-2 PV Wire Red 2000V

$1,220.00

Secure Payment Methods

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Request a Free Quote

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.

(888) 876-0007

Instant Live Chat

Mon-Fri 10am-6pm EST

View full details

TSEC 525W Solar Panel (TS66-CMH- H1) $180.00

Certifications<

What is your return policy?

Returns are accepted within 30 days of delivery and require an RMA number. Returns of non-defective items carry a 40% restocking fee per our Refund Policy; defective, damaged-in-transit, or mis-shipped items are exempt. Special-order items are final sale.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

TSEC TS66-CMH-525 H1 525W N-Type TOPCon Monocrystalline Solar Panel

Model TS66-CMH-525 H1 | N-Type TOPCon | 132 Monocrystalline Cells | Monofacial | 1500V System Voltage

525 Wp

Max Power Output

22.1%

Module Efficiency

132 Cells

N-Type TOPCon

Product Overview

The TSEC TS66-CMH-525 H1 525W N-Type TOPCon monocrystalline solar panel is engineered for projects that demand high power density and long-term reliability. This advanced module uses N-type TOPCon cell technology and a 132-cell layout to deliver strong performance in a compact footprint. With a maximum output of 525 Wp and module efficiency of 22.1%, it supports space-constrained residential, commercial, and industrial rooftops. The panel is designed for 1500V systems, allowing flexible string design and reduced balance-of-system costs. Made in Taiwan, it combines robust construction, optimized thermal behavior, and low annual degradation for dependable energy production over decades.

Key Benefits

High power density per module: Deliver up to 525 Wp from a single panel with 22.1% module efficiency, enabling more power on limited roof space.

Advanced N-type TOPCon technology: N-type TOPCon monocrystalline cells offer better temperature behavior, lower degradation, and higher energy yield over the system lifetime.

Enhanced low-light performance: Optimized cell and glass design support stronger output in cloudy, early morning, and late afternoon conditions, improving annual kWh production.

Durable construction for harsh sites: The module uses an anti-salt mist frame, IP68 junction box, and high mechanical load rating, making it suitable for coastal and exposed installations.

Long-term performance guarantees: A 12-year product warranty and 30-year linear power warranty with low annual degradation help protect your investment and forecast returns confidently.

How It Works

This TSEC TS66-CMH-525 H1 solar panel converts sunlight into electricity using high-efficiency N-type TOPCon monocrystalline cells arranged in a 6x22 layout. When light hits the 182 mm cells, it generates direct current, which is then routed through the integrated IP68 junction box and cables to your inverter. The inverter converts the DC power to AC power that can be used onsite or exported to the grid. Optimized temperature coefficients ensure relatively stable power output as the module heats up in real-world operation. The low degradation rate preserves output year after year, supporting predictable long-term energy yields for residential, commercial, and utility-scale systems.

N-Type TOPCon monocrystalline cells: The module uses N-type TOPCon silicon cells that reduce carrier recombination losses and resist light-induced degradation. This structure enables higher efficiency and more stable performance over time than conventional cell types.

Optimized electrical design: At standard test conditions, the panel delivers 525 Wp with a maximum power voltage near 40.25 V and current around 13.05 A. This balance of voltage and current allows flexible string configuration with modern 1500V inverters and helps reduce overall system losses.

Robust module architecture: A coated front glass, low water vapor transmission encapsulant, and durable backsheet protect the cells from moisture and mechanical stress. The IP68 junction box with three bypass diodes manages shading impacts and improves energy harvest under partial shading conditions.

Technical Specifications

Brand	TSEC Corporation
Model Name	TS66-CMH-525 H1
Cell Type and Technology	Monocrystalline N-Type TOPCon solar cell
Cell Size	182 mm
Cells per Module	132 cells (6x22 configuration)
Module Type	Monofacial, framed module
Power Range	525–555 Wp (TS66-CMH series)
Maximum Power (Pmax)	525 Wp at STC
Module Efficiency	22.1%
Power Tolerance	-3% to +3%
Voltage at Maximum Power (Vmpp)	40.25 V
Current at Maximum Power (Impp)	13.05 A
Open Circuit Voltage (Voc)	46.78 V
Short Circuit Current (Isc)	13.74 A
Nominal Operating Cell Temperature (NOCT)	45 ± 2 °C
Operating Temperature Range	-40 °C to +85 °C
Temperature Coefficient of Pmax	-0.29% / °C
Temperature Coefficient of Voc	-0.25% / °C
Temperature Coefficient of Isc	+0.045% / °C
Maximum System Voltage	1500 V DC
Series Fuse Rating	25 A
Maximum Mechanical Load	5400 Pa (front side)
Module Dimensions (H x W x D)	2093 x 1134 x 35 mm
Weight	25.5 kg
Front Glass	PV coated glass
Encapsulant	Low WVTR encapsulant film
Backsheet	Durable polymer backsheet
Frame Type	Black, anti-salt mist aluminum frame
Junction Box Protection Class	IP68, 3 bypass diodes
Connector Type	EVO-2 compatible connectors
Cable Specification	1500 mm, 4 mm², 12 AWG

Certifications & Compliance

Certifications: IEC 61215:2021, IEC 61730-1:2021, IEC 61730-2:2021, UL 61730, ISO 9001:2015, ISO 14001:2015, ISO 45001:2018 (certification progress as per manufacturer notes).
Inverter Compatibility: Designed for modern grid-tied and hybrid inverters with 1500V DC input and compatible EVO-2 style connectors; string sizing should follow the inverter and design guidelines.
Environmental: Anti-salt mist frame and IP68 junction box support installation in coastal and high-humidity environments when installed to TSEC guidelines.
Warranty: 12-year materials and workmanship warranty plus 30-year linear power warranty, including 91.4% power at 20 years and 87.4% power at 30 years with an approximate annual degradation rate near 0.42%.

Documentation

Product Datasheet (PDF)

● Available | Contact us for lead time and pricing

What is your return policy?

What’s covered by your return policy?

How long will it take to receive my order?

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

TSEC TS66-CMH-525 H1 525W N-Type TOPCon Monocrystalline Solar Panel

Model TS66-CMH-525 H1 | N-Type TOPCon | 132 Monocrystalline Cells | Monofacial | 1500V System Voltage

525 Wp

Max Power Output

22.1%

Module Efficiency

132 Cells

N-Type TOPCon

Product Overview

Key Benefits

High power density per module: Deliver up to 525 Wp from a single panel with 22.1% module efficiency, enabling more power on limited roof space.

Advanced N-type TOPCon technology: N-type TOPCon monocrystalline cells offer better temperature behavior, lower degradation, and higher energy yield over the system lifetime.

Enhanced low-light performance: Optimized cell and glass design support stronger output in cloudy, early morning, and late afternoon conditions, improving annual kWh production.

Durable construction for harsh sites: The module uses an anti-salt mist frame, IP68 junction box, and high mechanical load rating, making it suitable for coastal and exposed installations.

Long-term performance guarantees: A 12-year product warranty and 30-year linear power warranty with low annual degradation help protect your investment and forecast returns confidently.

How It Works

Technical Specifications

Brand	TSEC Corporation
Model Name	TS66-CMH-525 H1
Cell Type and Technology	Monocrystalline N-Type TOPCon solar cell
Cell Size	182 mm
Cells per Module	132 cells (6x22 configuration)
Module Type	Monofacial, framed module
Power Range	525–555 Wp (TS66-CMH series)
Maximum Power (Pmax)	525 Wp at STC
Module Efficiency	22.1%
Power Tolerance	-3% to +3%
Voltage at Maximum Power (Vmpp)	40.25 V
Current at Maximum Power (Impp)	13.05 A
Open Circuit Voltage (Voc)	46.78 V
Short Circuit Current (Isc)	13.74 A
Nominal Operating Cell Temperature (NOCT)	45 ± 2 °C
Operating Temperature Range	-40 °C to +85 °C
Temperature Coefficient of Pmax	-0.29% / °C
Temperature Coefficient of Voc	-0.25% / °C
Temperature Coefficient of Isc	+0.045% / °C
Maximum System Voltage	1500 V DC
Series Fuse Rating	25 A
Maximum Mechanical Load	5400 Pa (front side)
Module Dimensions (H x W x D)	2093 x 1134 x 35 mm
Weight	25.5 kg
Front Glass	PV coated glass
Encapsulant	Low WVTR encapsulant film
Backsheet	Durable polymer backsheet
Frame Type	Black, anti-salt mist aluminum frame
Junction Box Protection Class	IP68, 3 bypass diodes
Connector Type	EVO-2 compatible connectors
Cable Specification	1500 mm, 4 mm², 12 AWG

Certifications & Compliance

Documentation

Product Datasheet (PDF)

● Available | Contact us for lead time and pricing
