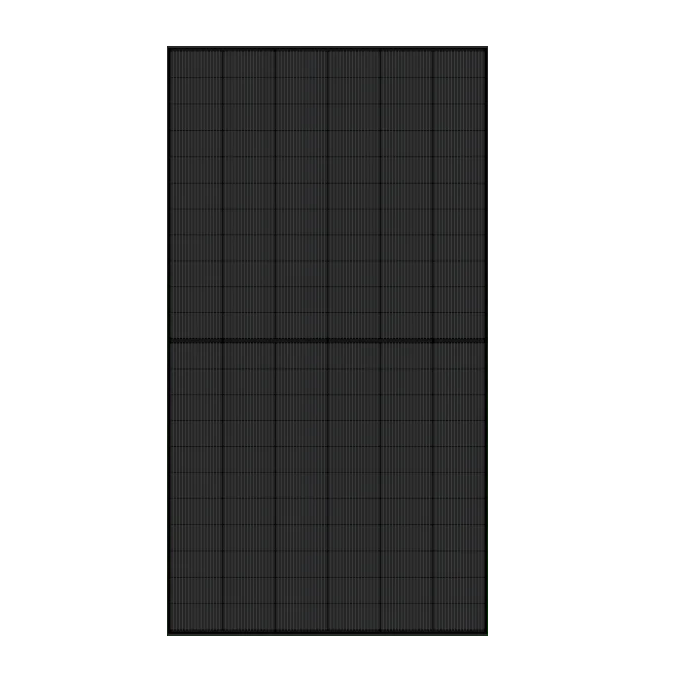

TSEC 545W Solar Panel (TS66-CMH- H1)

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

TSEC 545W Solar Panel (TS66-CMH- H1)

Trusted by 1,000s of Contractors & Installers

Ships Direct from Manufacturer — typically leaves the dock in 3–7 business days

SKU PES-SPS-SOL-20461

OEM Authorized Dealer Full OEM Warranty

$180.00 USD

~~$0.01~~ $180.00 USD

Sold out

Quantity

Sold by the pallet (10) — PowerLink & trade: request 10+

Sold by the pallet (10) PowerLink Network & trade customers can request 10+ →$0.33/W

Buying 5+ pallets or a truckload?Get a Volume Quote →

Offloading overstock or decommissioned gear? We buy surplus equipment →

Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you

Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.

SKU: PES-SPS-SOL-20461
Unit price: $0.33/W
Min purchase: 10 pcs

Complete the job

Compatible gear contractors pair with this item

Microinverter APsystems QT2 1.7kW 3-Ph Microinverter 124062

$407.00

Racking kit Racking Hardware Kit — 20-panel System

$1,596.43

PV wire Omni Cable 8 AWG RHW-2 PV Wire Red 2000V

$1,220.00

Secure Payment Methods

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Request a Free Quote

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.

(888) 876-0007

Instant Live Chat

Mon-Fri 10am-6pm EST

View full details

TSEC 545W Solar Panel (TS66-CMH- H1) $180.00

Certifications<

What is your return policy?

Returns are accepted within 30 days of delivery and require an RMA number. Returns of non-defective items carry a 40% restocking fee per our Refund Policy; defective, damaged-in-transit, or mis-shipped items are exempt. Special-order items are final sale.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

TSEC TS66-CMH-545 H1 545W N-Type TOPCon Monocrystalline Solar Panel

Model TS66-CMH-545 H1 | N-Type TOPCon | 132 Monocrystalline Cells | Monofacial | 1500V System Voltage

545 Wp

Max Power Output

23.0%

Module Efficiency

132 Cells

N-Type TOPCon

Product Overview

The TSEC TS66-CMH-545 H1 N-Type TOPCon monocrystalline solar panel delivers 545 watts of high-density power in a sleek, durable format ideal for commercial rooftops and large ground mount arrays. This advanced module uses 182 mm N-Type TOPCon cells arranged in a 132 cell layout to achieve up to 23 percent efficiency, helping more energy be produced from every square meter of roof or land. A 12 year product warranty and long term linear power warranty are included, ensuring dependable output for decades. The panel is engineered for demanding climates with a 1500 volt system rating, tough mechanical design, and a robust IP68 junction box. With its optimized temperature coefficients and low annual degradation rate, this module is designed to support stable, predictable energy yields and a lower levelized cost of electricity over the system lifetime. Installers and project developers can rely on this panel when high performance and long term bankability are required.

Key Benefits

High power density for limited space: Each module supplies up to 545 watts, allowing system designers to reach target capacity using fewer panels and reduced mounting hardware.

Outstanding efficiency up to 23%: The N-Type TOPCon cell design and optimized 6x22 layout push conversion efficiency above many conventional mono modules, increasing energy harvested from available roof area.

Robust long term performance: A total degradation rate of only 0.42 percent per year supports 91.4 percent output at 20 years and 87.4 percent at 30 years for reliable long term energy production.

Dependable operation in harsh climates: The panel operates between -40 and 85 degrees Celsius, uses an anti salt mist frame, and passes high mechanical load testing, making it suitable for coastal and heavy snow regions.

Installer friendly size and design: A 2093 by 1134 millimeter footprint, 25.5 kilogram weight, and 1500 millimeter factory cables simplify handling, string design, and quick integration with modern mounting systems.

Lower LCOE for projects: Improved low light response, reduced temperature losses, and high efficiency combine to improve annual yield and help drive down system level energy costs over time.

How It Works

This TSEC TS66-CMH-545 H1 solar panel converts sunlight into usable direct current electricity using advanced N-Type TOPCon monocrystalline cells. Each of the 132 cells is interconnected and laminated under tempered glass to protect it from weather while allowing maximum light transmission. When sunlight strikes the 182 millimeter cells, photons are absorbed and free electrons are generated within the silicon structure. The built in electric field within each cell drives these electrons toward the conductors, creating current that flows through the module cables. Under standard test conditions the panel delivers a maximum power of 545 watts at around 40.78 volts DC and 13.37 amps. The module is then wired in series and parallel strings to build higher system voltages, often up to 1500 volts, which are suited to commercial scale inverters. Optimized temperature coefficients and low light behavior help maintain stable output across real world operating conditions, from cold bright days to hot summer afternoons.

N-Type TOPCon cell architecture: The monocrystalline TOPCon cells use a thin tunnel oxide layer and passivated contacts to reduce recombination losses and improve carrier collection. This design increases efficiency and supports additional energy yield compared to many standard P-Type cells under the same irradiance conditions.

Optimized electrical operating point: At maximum power, the module operates at a voltage of 40.78 volts and a current of 13.37 amps, which gives a strong balance between string length and inverter compatibility. Modern inverters track this operating point using maximum power point tracking, ensuring that the array consistently runs at or near its most efficient point during the day.

Durable module construction and safety: The front glass, encapsulant, backsheet, and anti salt mist frame work together to seal the cells from moisture, dust, and mechanical stress while still allowing efficient heat dissipation. An IP68 junction box with three bypass diodes manages current flow and reduces shading losses, while the 1500 volt rating and Class II protection help the panel integrate safely into modern high voltage systems.

Technical Specifications

Manufacturer	TSEC Corporation, Taiwan
Model Number	TS66-CMH-545 H1
Cell Technology	Monocrystalline N-Type TOPCon solar cells
Cell Size	182 mm monocrystalline silicon
Cells per Module	132 cells (6 x 22 layout)
Module Type	Monofacial, single glass module
Power Class Range	525 Wp to 555 Wp ALPHA TOPCon series
Rated Maximum Power (Pmax)	545 Wp at STC
Module Efficiency	Approximately 23.0% (range 22.1% to 23.4% across series)
Power Tolerance	-3% to +3% under standard test conditions
Voltage at Maximum Power (Vmpp)	40.78 V
Current at Maximum Power (Impp)	13.37 A
Open Circuit Voltage (Voc)	47.54 V
Short Circuit Current (Isc)	14.10 A
Nominal Operating Cell Temperature (NOCT)	45 ± 2 °C
Operating Temperature Range	-40 °C to +85 °C
Temperature Coefficient of Pmax	-0.29 % / °C
Temperature Coefficient of Voc	-0.25 % / °C
Temperature Coefficient of Isc	+0.045 % / °C
Maximum System Voltage	1500 V DC (IEC / UL)
Series Fuse Rating	25 A
Module Dimensions (H x W x D)	2093 x 1134 x 35 mm
Weight	25.5 kg
Front Cover	PV coated tempered glass
Encapsulant	Low water vapor transmission rate encapsulant film
Backsheet	Durable backsheet optimized for long term outdoor use
Frame Type	Black anodized aluminum, anti salt mist design
Junction Box Protection Class	IP68, three bypass diodes
Connector Type	EVO-2 compatible connectors
Cable Specification	1500 mm length, 4 mm², 12 AWG equivalent
Protection Class (IEC 61140)	Class II
Maximum Mechanical Load	Up to 5400 Pa (front side)

Certifications & Compliance

Certifications: IEC 61215:2021, IEC 61730-1:2021, IEC 61730-2:2021, UL 61730, ISO 9001:2015 quality management, ISO 14001:2015 environmental management, ISO 45001:2018 occupational health and safety. Certification updates may still be in progress according to the latest datasheet revision.
Inverter Compatibility: Designed for use with modern string and central inverters rated up to 1500 V DC, using standard EVO-2 compatible connectors and Class II protection for widespread system integration.
Environmental: Engineered for demanding outdoor use with an anti salt mist frame, IP68 junction box, and components selected to support long term performance in coastal, desert, and high snow load environments.
Warranty: Includes a 12 year product materials and workmanship warranty plus a 30 year linear power warranty, guaranteeing at least 91.4% power at year 20 and 87.4% power at year 30 based on a total degradation rate of approximately 0.42% per year.

Documentation

Product Datasheet (PDF)

● Available | Contact us for lead time and pricing
