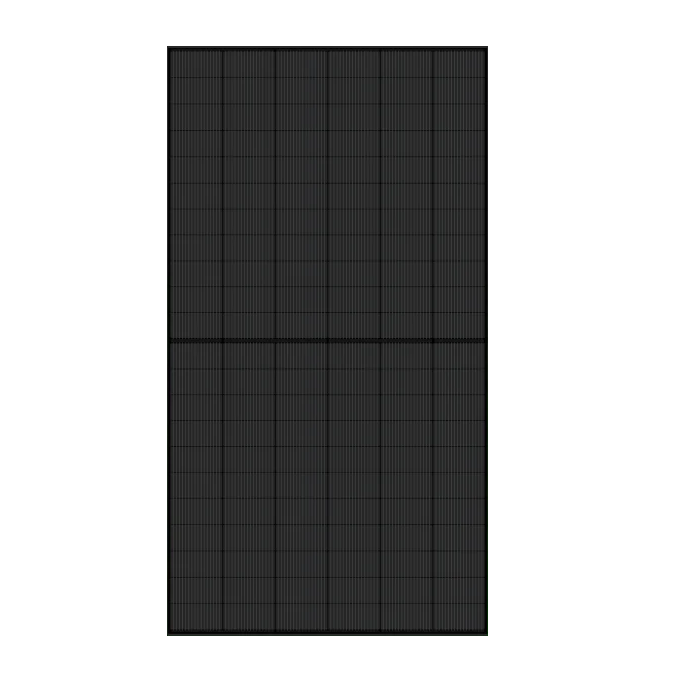

TSEC 550W Solar Panel (TS66-CMH- H1)

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

TSEC 550W Solar Panel (TS66-CMH- H1)

Trusted by 1,000s of Contractors & Installers

Ships Direct from Manufacturer — typically leaves the dock in 3–7 business days

SKU PES-SPS-SOL-20463

OEM Authorized Dealer Full OEM Warranty

$180.00 USD

~~$0.01~~ $180.00 USD

Sold out

Quantity

Sold by the pallet (10) — PowerLink & trade: request 10+

Sold by the pallet (10) PowerLink Network & trade customers can request 10+ →$0.33/W

Buying 5+ pallets or a truckload?Get a Volume Quote →

Offloading overstock or decommissioned gear? We buy surplus equipment →

Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you

Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.

SKU: PES-SPS-SOL-20463
Unit price: $0.33/W
Min purchase: 10 pcs

Complete the job

Compatible gear contractors pair with this item

Microinverter APsystems QT2 1.7kW 3-Ph Microinverter 124062

$407.00

Racking kit Racking Hardware Kit — 20-panel System

$1,596.43

PV wire Omni Cable 8 AWG RHW-2 PV Wire Red 2000V

$1,220.00

Secure Payment Methods

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Request a Free Quote

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.

(888) 876-0007

Instant Live Chat

Mon-Fri 10am-6pm EST

View full details

TSEC 550W Solar Panel (TS66-CMH- H1) $180.00

Certifications<

What is your return policy?

Returns are accepted within 30 days of delivery and require an RMA number. Returns of non-defective items carry a 40% restocking fee per our Refund Policy; defective, damaged-in-transit, or mis-shipped items are exempt. Special-order items are final sale.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

TSEC TS66-CMH-550 H1 550W N-Type TOPCon Monocrystalline Solar Panel

Model TS66-CMH-550 H1 | N-Type TOPCon | 132 Monocrystalline Cells | Monofacial | 1500V System Voltage

550 Wp

Max Power Output

23.2%

Module Efficiency

132

N-Type TOPCon

Product Overview

The TSEC TS66-CMH-550 H1 550W N-Type TOPCon monocrystalline solar panel delivers high efficiency for modern solar projects. This premium module is designed for commercial, industrial, and large residential systems that demand reliable long term output. Its advanced N-Type TOPCon cell technology helps achieve a module efficiency of up to 23.2 percent under standard conditions. The 550 watt power rating allows more energy to be produced from limited roof or ground space. A robust mechanical design supports demanding environments, including coastal applications with salt mist exposure. The module operates within a wide temperature range from minus 40 to plus 85 degrees Celsius. Degradation is kept low with a total degradation rate of only 0.42 percent per year over the warranty period. Backed by a 12 year product warranty and a 30 year linear power warranty, this panel is engineered for dependable energy generation. Made in Taiwan by TSEC Corporation, the TS66-CMH-550 H1 offers bankable performance for long term solar investments. Its combination of high power density, durable construction, and trusted certification makes it a strong choice for project developers and installers.

Key Benefits

High power density for limited space: With 550 watts of rated output, each module delivers strong energy yield from a standard footprint. This helps reduce module count and balance of system costs on space constrained roofs and ground mounts.

Advanced N-Type TOPCon efficiency: N-Type TOPCon cell technology improves conversion efficiency and reduces light induced degradation. This results in more stable long term production compared with many conventional P type modules.

Extended 30 year performance warranty: The panel includes a 12 year materials and workmanship warranty and a 30 year linear power warranty. Power output is guaranteed at 91.4 percent after 20 years and 87.4 percent after 30 years.

Robust 1500V system compatibility: A maximum system voltage of 1500 volts supports longer strings and reduced cabling. This is ideal for commercial rooftops and utility scale arrays seeking optimized system design.

Durable build for harsh environments: The module features an anti salt mist frame and IP68 junction box. It is tested for high mechanical loads and wide temperature ranges, supporting reliable operation in challenging climates.

Low temperature coefficient for hot climates: A Pmax temperature coefficient of minus 0.29 percent per degree Celsius helps maintain output on hot days. Energy yield stays more stable when cell temperatures rise.

How It Works

This TSEC TOPCon monocrystalline solar panel converts sunlight into usable direct current electricity using advanced N type cells. Each of the 132 monocrystalline cells is designed to capture photons efficiently across a broad light spectrum. When sunlight strikes the cell surface, an electric field drives electrons to flow and create current. The panel is optimized for stable performance under standard test conditions of 1000 watts per square meter and 25 degrees Celsius. Improved low light response helps maintain production during cloudy mornings and late afternoons. The PV coated front glass and low water vapor transmission encapsulant protect the cells from moisture and environmental stress. Current and voltage are collected through high quality busbars, then routed through an IP68 junction box. From there, compatible connectors link the module into series strings and arrays for system level power delivery. The result is a reliable, high efficiency module that can be integrated into grid tied or off grid systems with suitable inverters and controllers.

N-Type TOPCon cell architecture: N-Type TOPCon cells are engineered with a passivated contact structure that reduces recombination losses. This architecture supports higher efficiency and contributes to additional power gain compared with conventional cells of similar size.

Module construction and protection: The cells are laminated between a PV coated front glass and a durable backsheet using a low WVTR encapsulant. This construction limits moisture ingress and supports long term reliability under thermal cycling and humidity.

System integration and power flow: Three bypass diodes in the IP68 junction box help reduce power loss during partial shading. The module connects through EVO 2 compatible connectors into strings that feed an inverter, which then converts DC power into AC electricity for site loads or export.

Technical Specifications

Manufacturer	TSEC Corporation, Taiwan
Model Name	TS66-CMH-550 H1
Cell Type and Technology	Monocrystalline N-Type TOPCon solar cells
Cells per Module	132 monocrystalline cells
Nominal Max Power (Pmax)	550 Wp
Power Range for Series	525 Wp to 555 Wp module family
Module Efficiency	Up to 23.2% (range 22.1% to 23.4%)
Power Tolerance	±3%
Voltage at Maximum Power (Vmpp)	40.92 V
Current at Maximum Power (Impp)	13.45 A
Open Circuit Voltage (Voc)	47.75 V
Short Circuit Current (Isc)	14.19 A
Nominal Operating Cell Temperature (NOCT)	45 ± 2 °C
Operating Temperature Range	-40 °C to +85 °C
Temperature Coefficient of Pmax	-0.29 % / °C
Temperature Coefficient of Voc	-0.25 % / °C
Temperature Coefficient of Isc	+0.045 % / °C
Maximum System Voltage	1500 V DC
Series Fuse Rating	25 A
Module Dimensions (H x W x D)	2093 x 1134 x 35 mm
Weight	25.5 kg
Front Glass	PV coated glass
Encapsulant	Low WVTR encapsulant film
Frame Type	Black, anti salt mist frame
Backsheet	Durable backsheet design
Junction Box Protection Class	IP68, 3 bypass diodes
Cable Specification	1500 mm, 4 mm², 12 AWG, EVO 2 compatible connectors
Max Mechanical Load	5400 Pa (as per temporary datasheet)
Total Annual Degradation Rate	Approx. 0.42% per year over warranty period

Certifications & Compliance

Certifications: IEC 61215:2021, IEC 61730-1:2021, IEC 61730-2:2021, UL 61730 (certification in progress), ISO 9001:2015 quality management, ISO 14001:2015 environmental management, ISO 45001:2018 health and safety management.
Inverter Compatibility: Suitable for use with modern string and central inverters designed for 1500V DC systems. Always confirm specific inverter input limits and string design before installation.
Environmental: Designed with anti salt mist frame and high protection IP68 junction box, supporting use in coastal and harsh outdoor environments. Temperature range from -40 to +85 degrees Celsius with high mechanical load resistance.
Warranty: 12 year limited product warranty on materials and workmanship, plus 30 year linear power warranty. Guaranteed power output of 91.4% at year 20 and 87.4% at year 30 under standard conditions when installed according to TSEC guidelines.

Documentation

Product Datasheet (PDF)

● Available | Contact us for lead time and pricing
