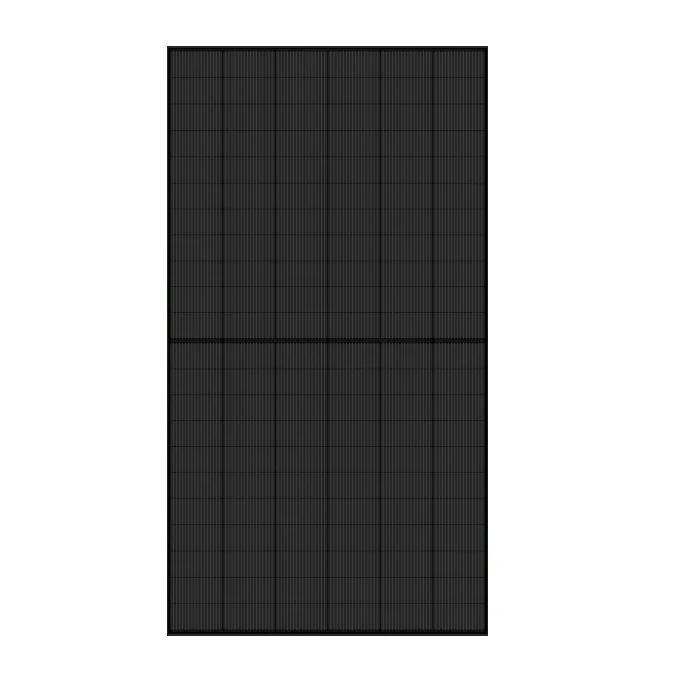

TSEC 555W Solar Panel (TS66-CMH- H1)

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

TSEC 555W Solar Panel (TS66-CMH- H1)

Trusted by 1,000s of Contractors & Installers

Ships Direct from Manufacturer — typically leaves the dock in 3–7 business days

SKU PES-SPS-SOL-20465

OEM Authorized Dealer Full OEM Warranty

$180.00 USD

~~$0.01~~ $180.00 USD

Sold out

Quantity

Sold by the pallet (10) — PowerLink & trade: request 10+

Sold by the pallet (10) PowerLink Network & trade customers can request 10+ →$0.32/W

Buying 5+ pallets or a truckload?Get a Volume Quote →

Offloading overstock or decommissioned gear? We buy surplus equipment →

Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you

Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.

SKU: PES-SPS-SOL-20465
Unit price: $0.32/W
Min purchase: 10 pcs

Complete the job

Compatible gear contractors pair with this item

Microinverter APsystems QT2 1.7kW 3-Ph Microinverter 124062

$407.00

Racking kit Racking Hardware Kit — 20-panel System

$1,596.43

PV wire Omni Cable 8 AWG RHW-2 PV Wire Red 2000V

$1,220.00

Secure Payment Methods

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Request a Free Quote

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.

(888) 876-0007

Instant Live Chat

Mon-Fri 10am-6pm EST

View full details

TSEC 555W Solar Panel (TS66-CMH- H1) $180.00

Certifications<

What is your return policy?

Returns are accepted within 30 days of delivery and require an RMA number. Returns of non-defective items carry a 40% restocking fee per our Refund Policy; defective, damaged-in-transit, or mis-shipped items are exempt. Special-order items are final sale.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

TSEC TS66-CMH-555 H1 555W N-Type TOPCon Monocrystalline Solar Panel

Model TS66-CMH-555 H1 | N-Type TOPCon | 132 Monocrystalline Cells | Monofacial | 1500V System Voltage

555 W

Max Power Output

23.4%

Module Efficiency

132

N-Type TOPCon

Product Overview

The TSEC TS66-CMH-555 H1 555W N-Type TOPCon Monocrystalline Solar Panel delivers high efficiency in a compact footprint. Designed around advanced TOPCon cell technology, this module converts more sunlight into usable power with a panel efficiency up to 23.4%. Its 555W output makes it ideal for commercial roofs, industrial arrays, and high performance ground mount systems. The module carries a 12 year product warranty and a 30 year linear power warranty, providing long term investment protection for your project. Power output is guaranteed at 91.4% after 20 years and 87.4% after 30 years, supporting stable long term yields. With a maximum system voltage of 1500V, this TSEC solar panel integrates smoothly into modern large scale strings, helping reduce system balance of plant costs. The module is engineered and manufactured in Taiwan with strict quality standards, robust mechanical strength, and reliable performance in diverse climates.

Key Benefits

High power density: Generate more energy per module with a maximum output of 555W and up to 23.4% efficiency, enabling smaller arrays for the same target production.

Advanced N-Type TOPCon cells: Monocrystalline TOPCon cells deliver better temperature performance, reduced degradation, and strong low light response compared to conventional P-type modules.

Proven long term reliability: A 12 year product warranty and 30 year linear power warranty support long term asset planning and bankability for commercial and utility projects.

Robust mechanical design: The module is tested to high mechanical load levels and uses an anti salt mist frame and IP68 junction box for reliable outdoor operation in challenging environments.

Optimized for modern systems: A 1500V system rating, 25A series fuse rating, and EVO 2 compatible connectors support efficient string design and simple integration with leading inverters.

How It Works

This TSEC TS66-CMH-555 H1 solar panel converts sunlight into direct current electricity through high efficiency N-Type TOPCon monocrystalline cells. Each of the 132 cells is wired together to form a 6x22 module layout that optimizes voltage and current for 1500V systems. When sunlight hits the silicon cells, photons excite electrons and create an electric current that flows through the panel’s busbars and out through the EVO 2 compatible connectors. The resulting DC power is then routed to an inverter, which converts it into AC power suitable for on site consumption or grid export. The module’s low temperature coefficient values help maintain higher power output as cell temperatures rise during sunny days. Under low irradiance conditions, the advanced cell structure and anti reflective coated glass enhance light capture, supporting more stable production from dawn to dusk. An integrated IP68 junction box with three bypass diodes helps protect performance if part of the module is shaded, keeping energy production as high as possible within the string.

N-Type TOPCon cell operation: N-Type TOPCon monocrystalline cells use a passivated contact structure that reduces electron recombination, allowing more charge carriers to reach the busbars. This design supports higher efficiency, lower degradation, and better performance at elevated temperatures than many conventional cell types.

Module layout and electrical output: The 6x22 cell arrangement is configured to deliver a maximum power voltage of about 41.04V and a maximum power current around 13.53A under standard test conditions. This balance of voltage and current delivers 555W output while keeping resistive losses lower within strings and system wiring.

Protection and durability in operation: Front PV coated glass, a durable backsheet, and an anti salt mist frame protect the cells against moisture, dust, and corrosion over decades of use. The IP68 junction box and three bypass diodes support stable output in partial shading scenarios, helping to reduce hot spot risk and improve long term reliability.

Technical Specifications

Brand	TSEC Corporation
Model Number	TS66-CMH-555 H1
Cell Technology	Monocrystalline N-Type TOPCon solar cell
Cell Count and Type	132 pcs, monocrystalline silicon TOPCon cells
Power Range	525Wp to 555Wp (series range)
Maximum Power (Pmax)	555 Wp at STC
Module Efficiency	Up to 23.4% (range 22.1% to 23.4%)
Power Tolerance	-3% to +3%
Total Degradation Rate	Approx. 0.42% per year (linear)
Voltage at Maximum Power (Vmpp)	41.04 V
Current at Maximum Power (Impp)	13.53 A
Open Circuit Voltage (Voc)	47.92 V
Short Circuit Current (Isc)	14.28 A
Nominal Operating Cell Temperature (NOCT)	45 ± 2 °C
Operating Temperature Range	-40 °C to +85 °C
Temperature Coefficient of Pmax	-0.29 % / °C
Temperature Coefficient of Voc	-0.25 % / °C
Temperature Coefficient of Isc	+0.045 % / °C
Maximum System Voltage	1500 V (IEC)
Series Fuse Rating	25 A
Front Glass	PV coated glass
Encapsulant	Low water vapor transmission rate encapsulant film
Backsheet	Durable rear backsheet for outdoor exposure
Frame Type	Black anti salt mist aluminum frame
Junction Box Protection Class	IP68, with three bypass diodes
Connector Type	EVO 2 compatible connectors
Cable Specification	1500 mm length, 4 mm², 12 AWG
Panel Dimensions (H x W x D)	2093 x 1134 x 35 mm
Weight	25.5 kg
Max Mechanical Load	Up to 5400 Pa (according to datasheet notes)
Country of Manufacture	Taiwan

Certifications & Compliance

Certifications: IEC 61215:2021, IEC 61730-1:2021, IEC 61730-2:2021, UL 61730, ISO 9001:2015 quality management, ISO 14001:2015 environmental management, ISO 45001:2018 occupational health and safety (some certifications noted as in progress on manufacturer datasheet).
Inverter Compatibility: Designed for use with modern string and central inverters rated for 1500V DC systems, using standard EVO 2 compatible connectors and 25A series fuse rating for flexible string design.
Environmental: Anti salt mist frame construction and low WVTR encapsulation support reliable operation in coastal, humid, and high UV locations, when installed according to TSEC guidelines.
Warranty: 12 year materials and workmanship product warranty plus 30 year linear power warranty, with guaranteed power of 91.4% at year 20 and 87.4% at year 30 under standard conditions.

Documentation

Product Datasheet (PDF)

● Available | Contact us for lead time and pricing
