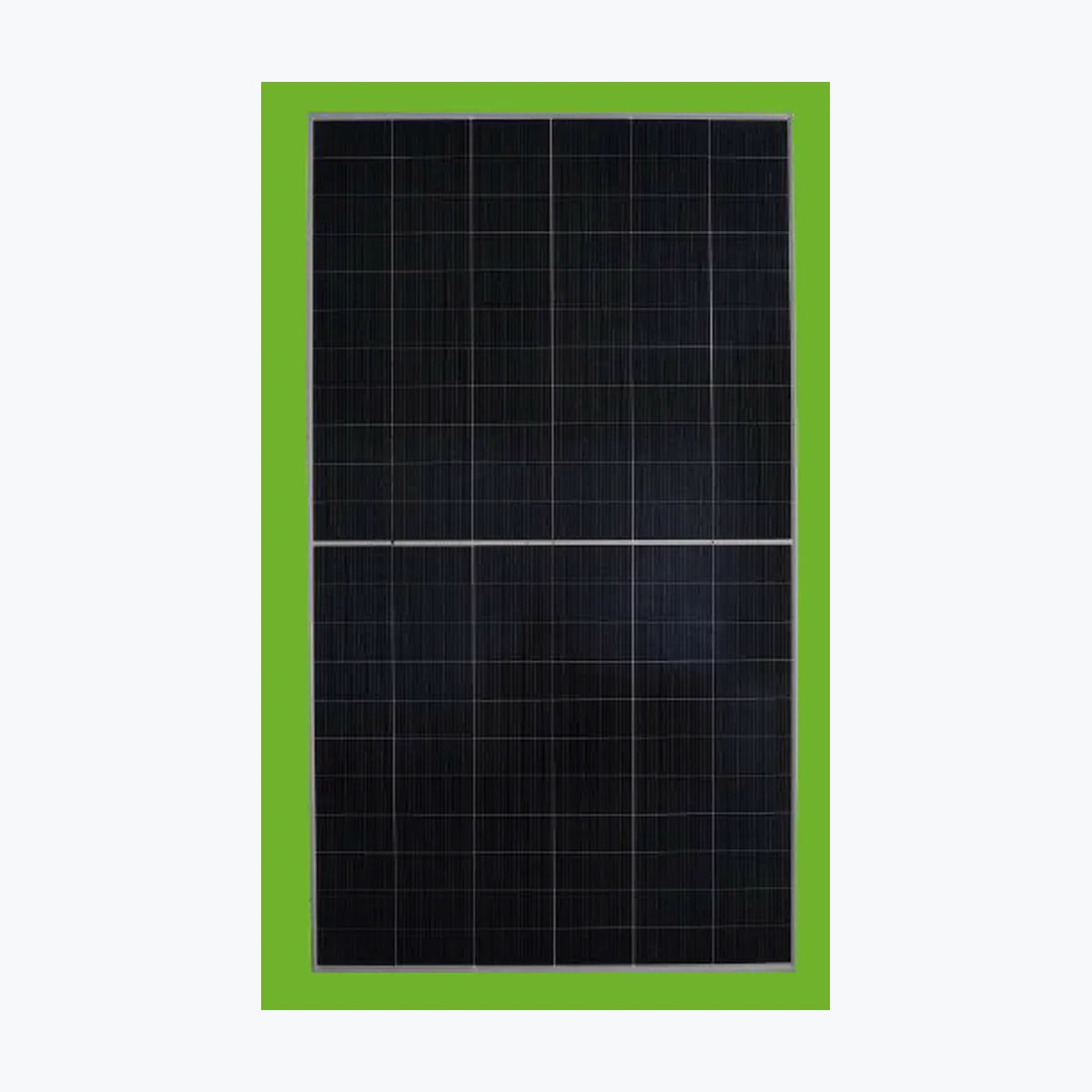

Twinsel Electronic Technology TSM132-8-700BHDG

Twinsel Electronic Technology TSM132-8-700BHDG

$5.00 USD
$5.00 USD
Sale Sold out
Shipping calculated at checkout.
Return policy

Specification

  • SKU:PES-SPS-SOL-21599
  • Container price: $48.60 USD
  • Container qty: 720
  • Pallet price: $2.29 USD
  • Pallet qty: 30
  • Unit price: $0.09 USD
View full details

Product Description

  • Model No. TSM132-8-700BHDG Product Warranty 12 Years Power Warranty 30 Years of 90.75 % Total Degradation Rate ⏳ 0.31 % Maximum Power (Pmax) 700 Wp Voltage at Maximum Power (Vmpp) 41.78 V Current at Maximum Power (Impp) 16.77 A Open Circuit Voltage (Voc) 49.83 V Short Circuit Current (Isc) 17.82 A Panel Efficiency 22.5 % Maximum Power (Pmax) 534.5 Wp Voltage at Maximum Power (Vmpp) 39.07 V Current at Maximum Power (Impp) 13.68 A Open Circuit Voltage (Voc) 46.69 V Short Circuit Current (Isc) 14.61 A Temperature 43±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.24 %/°C Temperature Coefficient of Voc -0.22 %/°C Temperature Coefficient of Isc 0.047 %/°C Maximum System Voltage 1500 V Series Fuse Rating 35 A Panel Dimension (H/W/D) 2384x1303x35 mm Weight 38.5 kg Cell Number 132 Glass Type Anti-reflection Coating Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Download Manufacturer's PDF Datasheet

    Technology: HJT, Bifacial
    Power Range: 675 ~ 700 Wp
    Panel Efficiency: 21.7 ~ 22.5 %
    Weight: 38.5 kg
    Seller: Zhejiang Twinsel Electronic Technology Co., Ltd.
    Country: China
