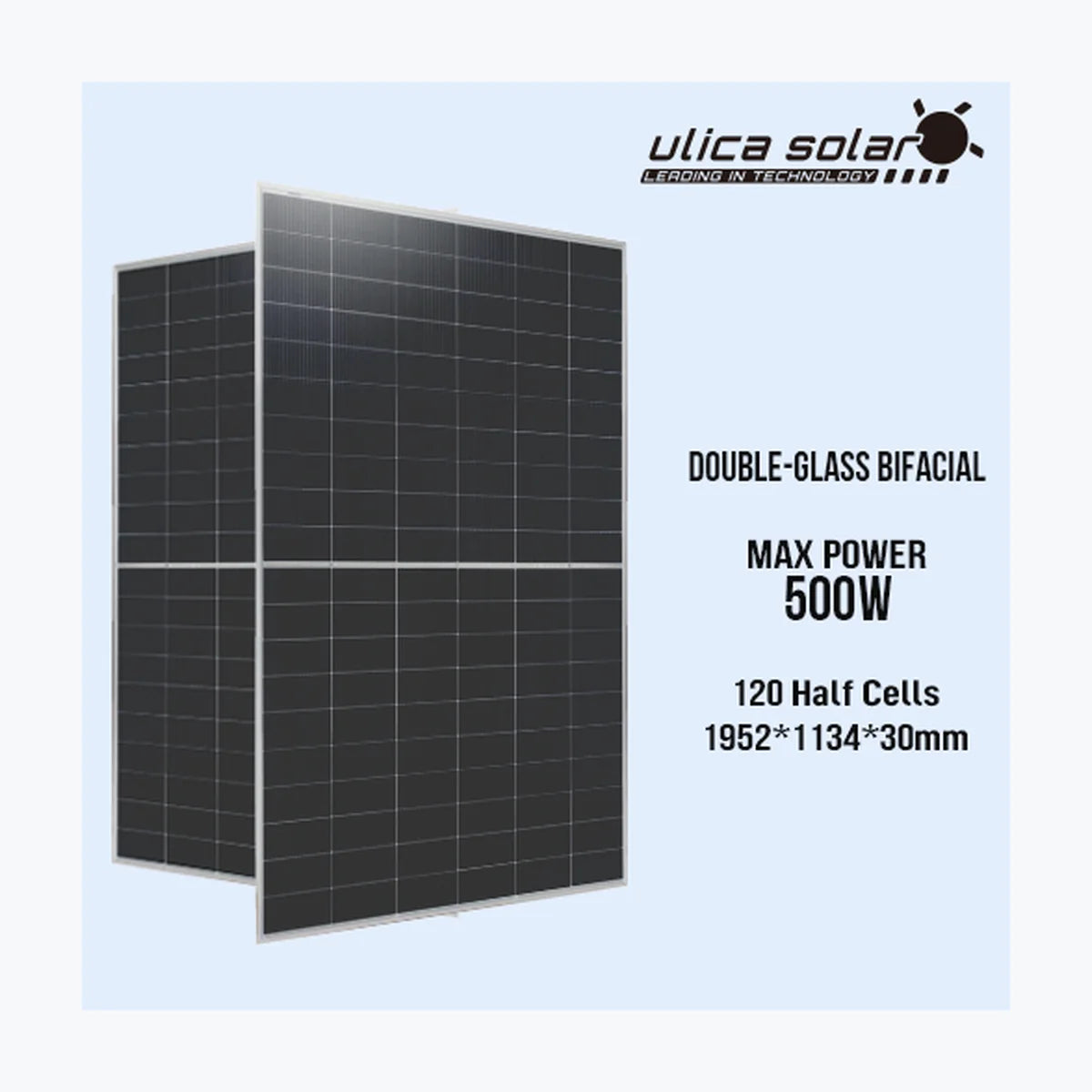

Ulica Solar UL-500M-120BDGN
PayPal Pay in 4 interest-free payments of $43.75 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-21875
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. UL-500M-120BDGN Product Warranty 15 Years Power Warranty 15 Years of 90 %, 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 500 Wp Voltage at Maximum Power (Vmpp) 37.02 V Current at Maximum Power (Impp) 13.51 A Open Circuit Voltage (Voc) 43.78 V Short Circuit Current (Isc) 14.48 A Panel Efficiency 22.59 % Maximum Power (Pmax) 379 Wp Voltage at Maximum Power (Vmpp) 34.06 V Current at Maximum Power (Impp) 11.13 A Open Circuit Voltage (Voc) 39.84 V Short Circuit Current (Isc) 11.68 A Temperature 43±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 1952x1134x30 mm Weight 26.5 kg Cell Size 182×94 mm Cell Number 120 Glass Type Anti-reflection Coating, Tempered Glass Thickness 2 mm Encapsulant Type EVA Frame Type Anod
Technology: Bifacial, TOPCon, N-type
Power Range: 490 ~ 500 Wp
Panel Efficiency: 22.14 ~ 22.59 %
Weight: 26.5 kg
Seller Name: Ningbo Ulica Solar Co., Ltd.
Country: China
| SKU | PES-SPS-SOL-21875 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
