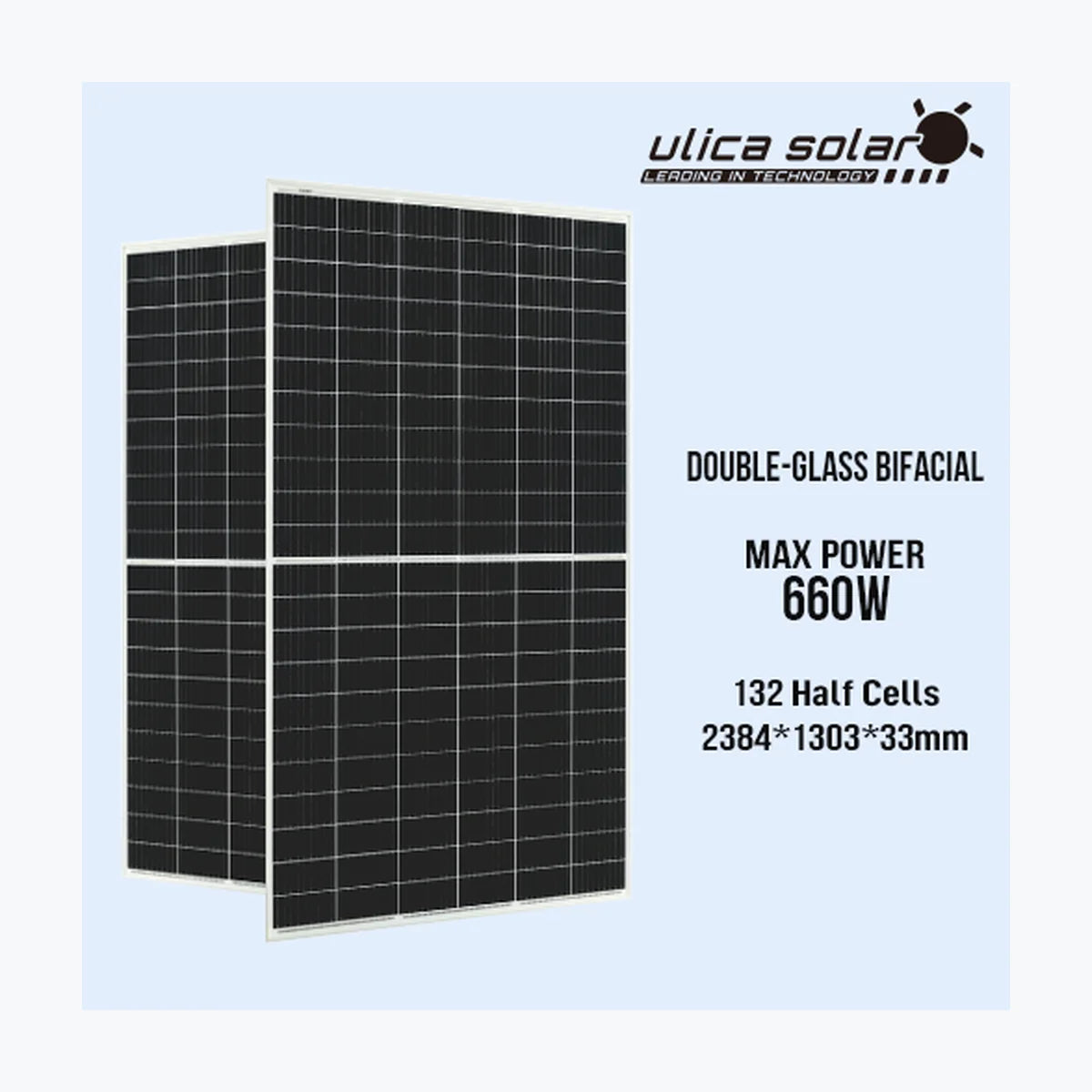

Ulica Solar UL-660M-132DG
PayPal Pay in 4 interest-free payments of $57.75 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-21884
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. UL-660M-132DG Product Warranty 12 Years Power Warranty 10 Years of 90 %, 30 Years of 80 % Total Degradation Rate ⏳ 0.67 % Power Tolerance 0 ~ +0.5 % Maximum Power (Pmax) 660 Wp Voltage at Maximum Power (Vmpp) 38.2 V Current at Maximum Power (Impp) 17.28 A Open Circuit Voltage (Voc) 45.7 V Short Circuit Current (Isc) 18.44 A Panel Efficiency 21.25 % Temperature 43±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.36 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.049 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2384x1303x33 mm Weight 38.7 kg Cell Size 210×105 mm Cell Number 132 Glass Type Tempered Glass Thickness 2 mm Encapsulant Type EVA Frame Type Anodized Aluminium, Black Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 1400 mm Download Manufacturer's PDF Datasheet
Technology: Bifacial, PERC
Power Range: 655 ~ 670 Wp
Panel Efficiency: 21.09 ~ 21.57 %
Weight: 38.7 kg
Seller Name: Ningbo Ulica Solar Co., Ltd.
Country: China
| SKU | PES-SPS-SOL-21884 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
