    In Stock

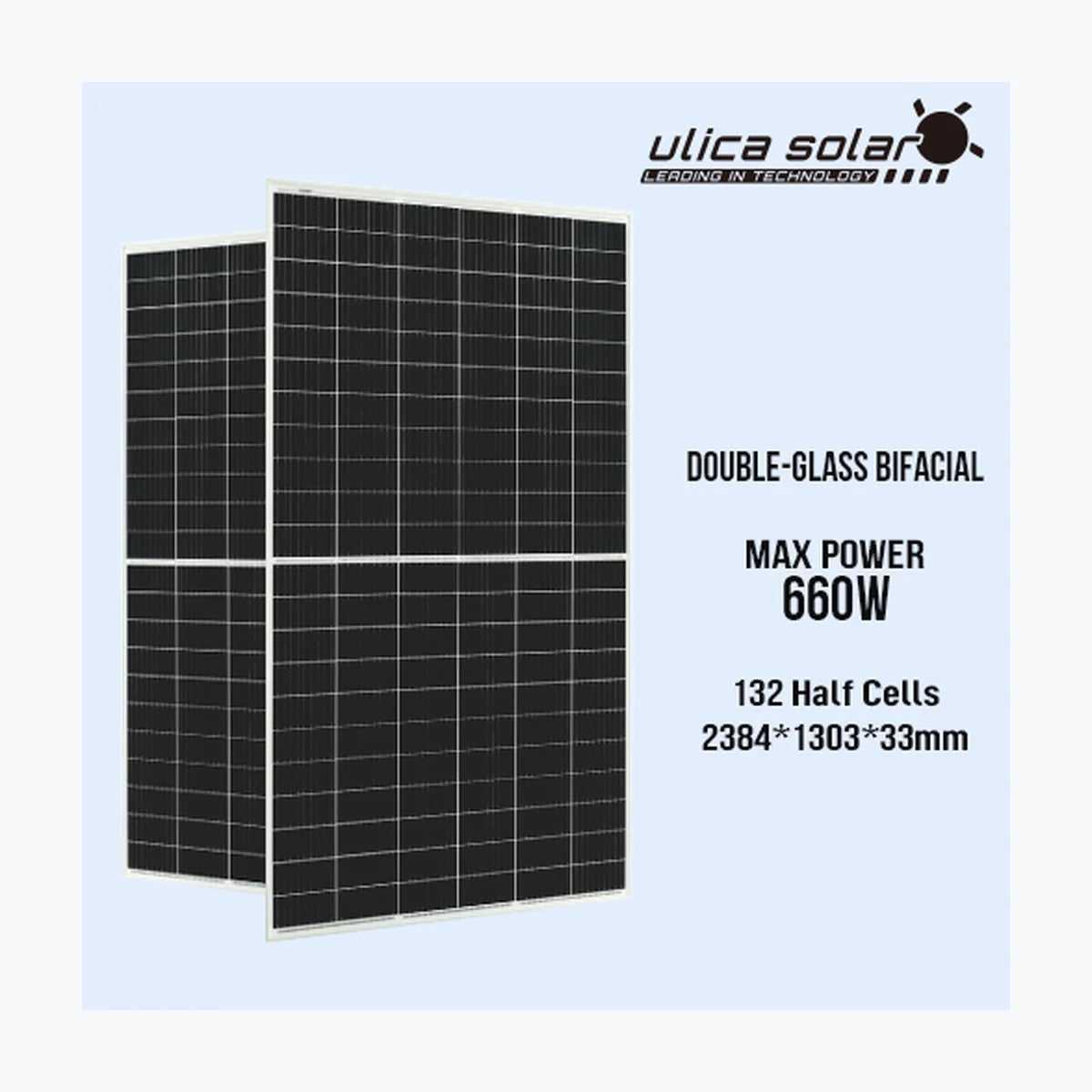

    Ulica Solar UL-665M-132DG

    Ulica Solar UL-665M-132DG

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-21886
    • Container price: $54.00 USD
    • Container qty: 720
    • Odoo id: 24,946
    • Pallet price: $2.55 USD
    • Pallet qty: 30
    • Unit price: $0.10 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. UL-665M-132DG Product Warranty 12 Years Power Warranty 10 Years of 90 %, 30 Years of 80 % Total Degradation Rate ⏳ 0.67 % Power Tolerance 0 ~ +0.5 % Maximum Power (Pmax) 665 Wp Voltage at Maximum Power (Vmpp) 38.3 V Current at Maximum Power (Impp) 17.36 A Open Circuit Voltage (Voc) 45.8 V Short Circuit Current (Isc) 18.53 A Panel Efficiency 21.41 % Temperature 43±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.36 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.049 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2384x1303x33 mm Weight 38.7 kg Cell Size 210×105 mm Cell Number 132 Glass Type Tempered Glass Thickness 2 mm Encapsulant Type EVA Frame Type Anodized Aluminium, Black Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 1400 mm Download Manufacturer's PDF Datasheet

      Technology: Bifacial, PERC
      Power Range: 655 ~ 670 Wp
      Panel Efficiency: 21.09 ~ 21.57 %
      Weight: 38.7 kg
      Seller Name: Ningbo Ulica Solar Co., Ltd.
      Country: China
