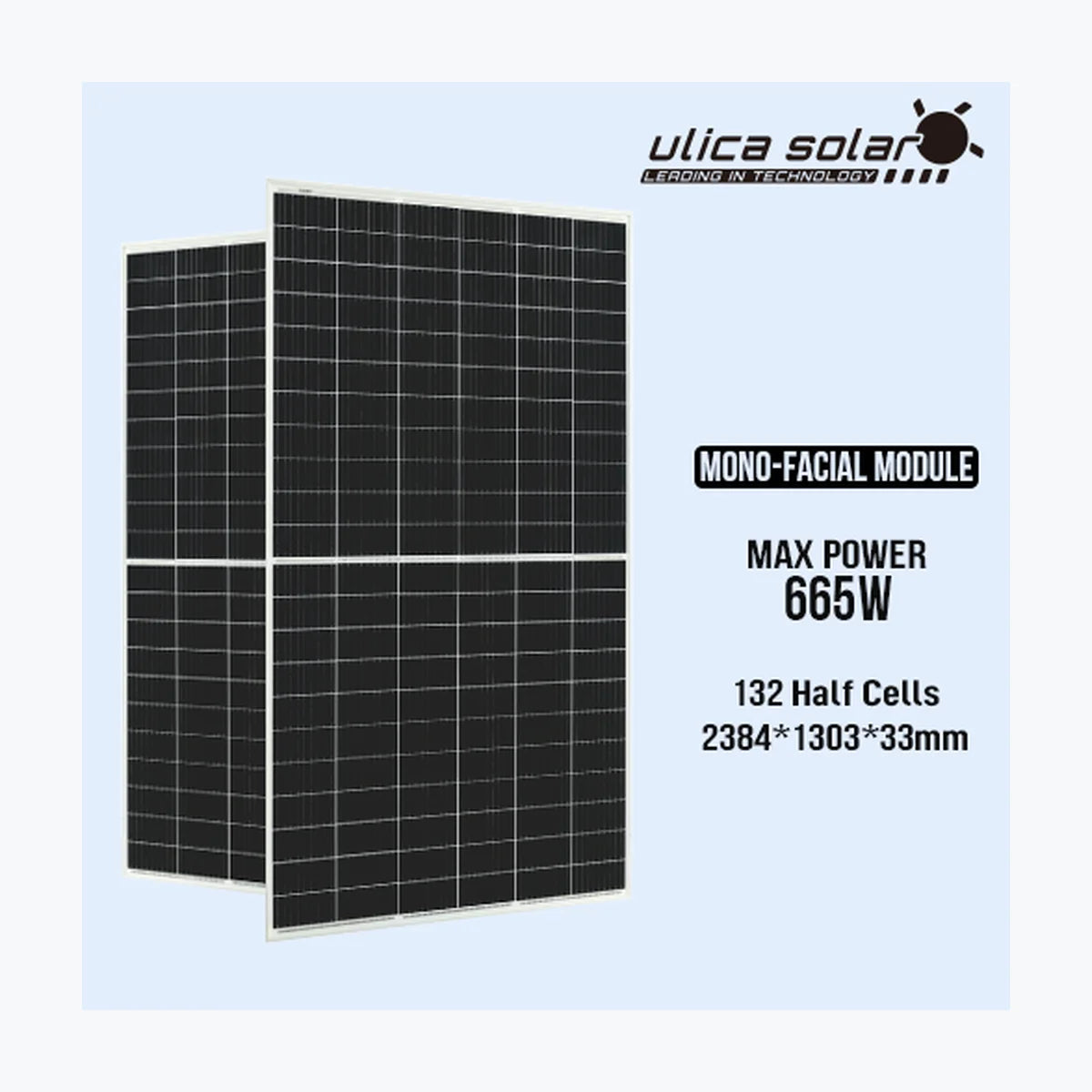

    Ulica Solar UL-665M-132HV

    Ulica Solar UL-665M-132HV

    $5.00 USD
    $5.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-21887
    • Container price: $48.60 USD
    • Container qty: 720
    • Odoo id: 24,923
    • Pallet price: $2.29 USD
    • Pallet qty: 30
    • Unit price: $0.09 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. UL-665M-132HV Product Warranty 12 Years Power Warranty 10 Years of 90 %, 25 Years of 80 % Total Degradation Rate ⏳ 0.8 % Power Tolerance 0 ~ +0.5 % Maximum Power (Pmax) 665 Wp Voltage at Maximum Power (Vmpp) 38.3 V Current at Maximum Power (Impp) 17.36 A Open Circuit Voltage (Voc) 45.8 V Short Circuit Current (Isc) 18.53 A Panel Efficiency 21.41 % Temperature 43±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.36 %/°C Temperature Coefficient of Voc -0.290 %/°C Temperature Coefficient of Isc 0.049 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2384x1303x33 mm Weight 33.3 kg Cell Size 210×105 mm Cell Number 132 Glass Type Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Frame Type Anodized Aluminium, Black Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 1400 mm Download Manufacturer's PDF Datasheet

      Technology: PERC
      Power Range: 655 ~ 670 Wp
      Panel Efficiency: 21.09 ~ 21.57 %
      Weight: 33.3 kg
      Seller Name: Ningbo Ulica Solar Co., Ltd.
      Country: China
