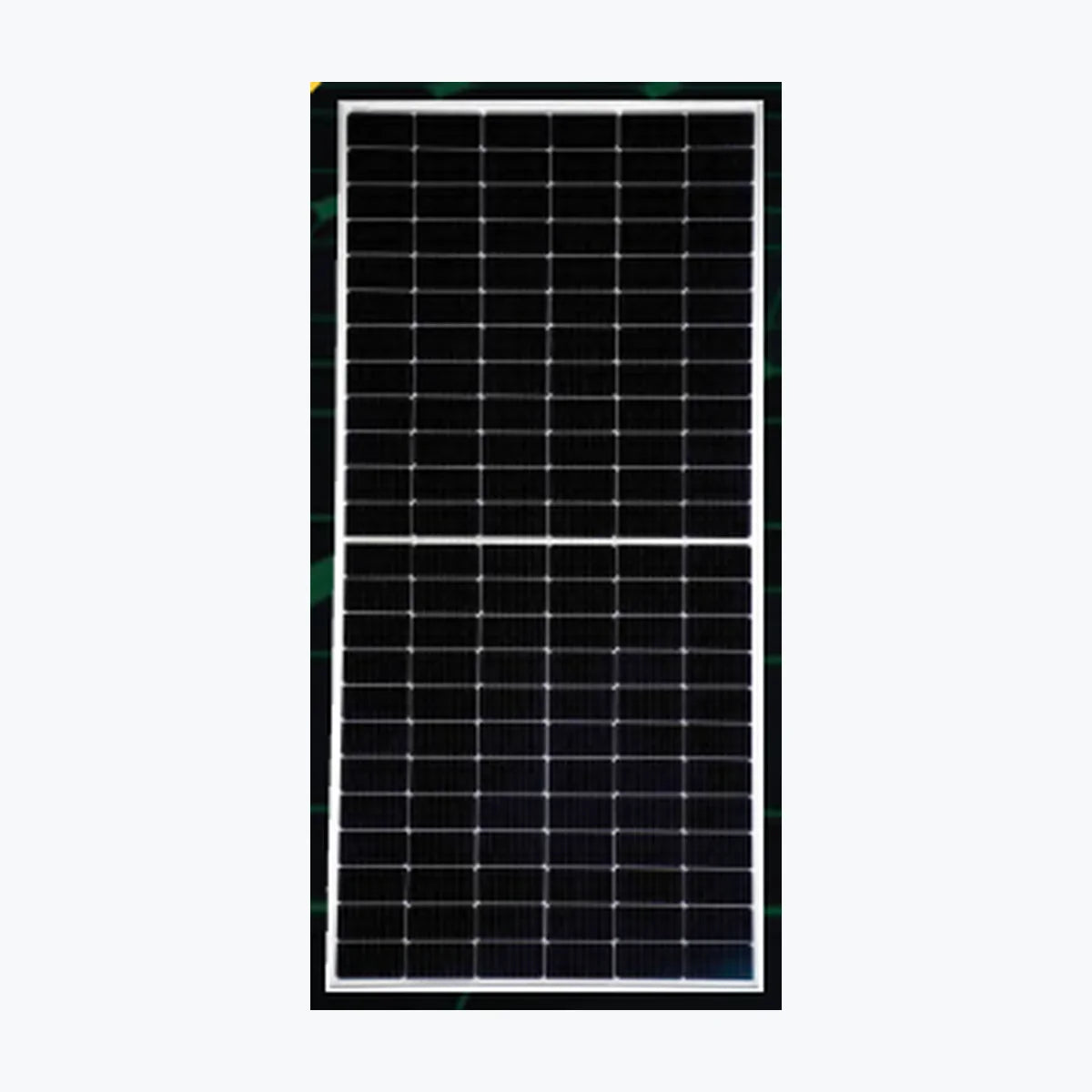

VDS Renewable 435
PayPal Pay in 4 interest-free payments of $38.00 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-22065
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for ENF Solar. 50,000+ SKUs from 169 authorized brands.
Model No. 435 Product Warranty 12 Years Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 435 Wp Voltage at Maximum Power (Vmpp) 40.8 V Current at Maximum Power (Impp) 10.67 A Open Circuit Voltage (Voc) 48.9 V Short Circuit Current (Isc) 11.29 A Panel Efficiency 20 % Maximum Power (Pmax) 329 Wp Voltage at Maximum Power (Vmpp) 38.5 V Current at Maximum Power (Impp) 8.55 A Open Circuit Voltage (Voc) 46.2 V Short Circuit Current (Isc) 9.05 A Temperature 41±3 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.34 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 2095x1039x30 mm Weight 28.5 kg Cell Number 144 Glass Type Anti-reflection Coating Glass Thickness 2 mm Encapsulant Type EVA Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 350 mm Download Manufacturer's PDF Datasheet
Technology: Bifacial
Power Range: 430 ~ 450 Wp
Panel Efficiency: 19.7 ~ 20.6 %
Weight: 28.5 kg
Seller Name: Jiangsu VDS Renewable Technology Co., Ltd.
Country: China
| SKU | PES-SPS-SOL-22065 |
|---|---|
| Manufacturer | ENF Solar |
| Container price | |
| Container qty | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer |
No documents available for this product. Contact us to request documentation.
