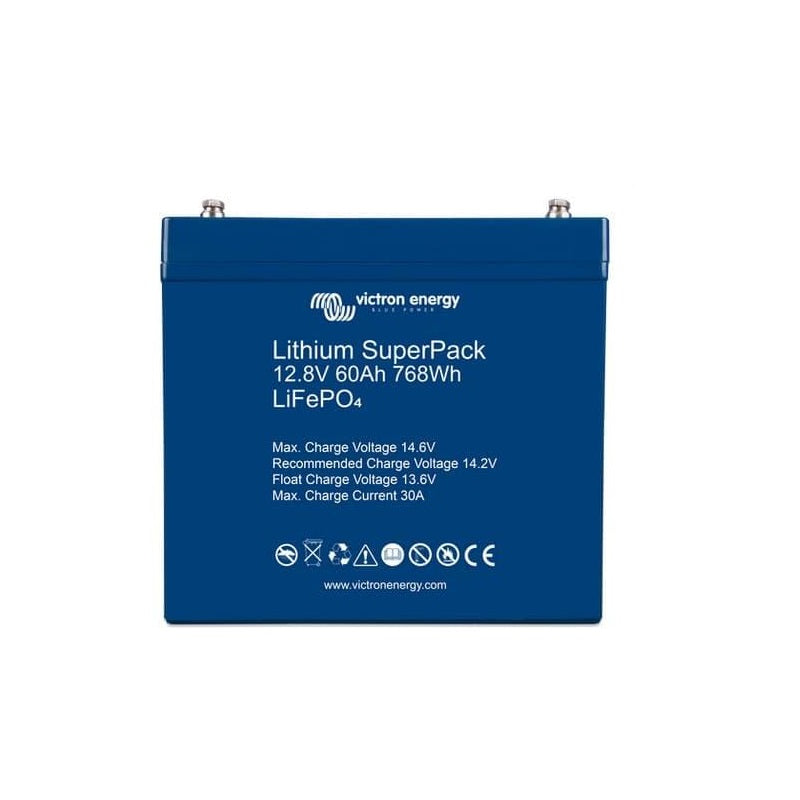

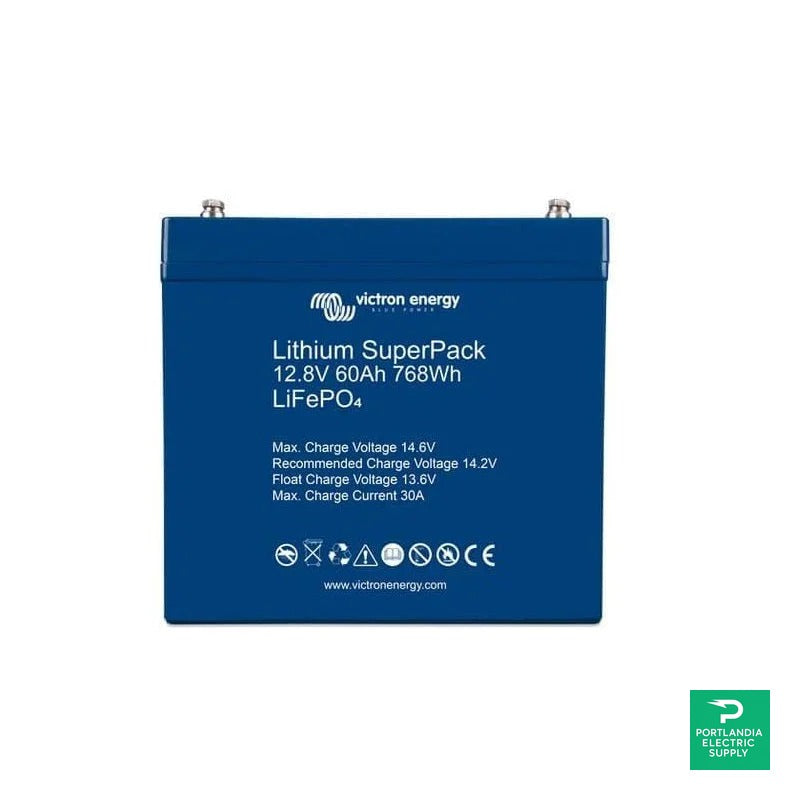

Victron Lithium Super Pack 128V/60Ah (M6) - BAT512060705

Victron Lithium Super Pack 128V/60Ah (M6) - BAT512060705

Regular price $464.83 USD
Regular price Sale price $464.83 USD
Sale Sold out
Shipping calculated at checkout.
Return policy

Specification

View full details
  • Victron Lithium SuperPack 12.8V/60Ah Battery - BAT512060705

    Introducing the Victron Energy BAT512060705, a high-performance lithium battery engineered to provide efficient energy solutions for various applications. With its built-in Battery Management System (BMS) and safety switch, this battery ensures reliability and durability, making it ideal for both residential and commercial use.

    Product Features

    Easy Installation

    The Victron Lithium SuperPack batteries are designed for straightforward installation, eliminating the need for additional components. Simply connect and begin using the battery right away.

    Integrated Safety Features

    Equipped with an internal switch, the battery automatically disconnects in cases of over-discharge, over-charge, or extreme temperature fluctuations, safeguarding your investment.

    Long Service Life

    Unlike traditional lead-acid batteries, this lithium-ion battery doesn't require full charging to extend its lifespan, performing well even with partial charges.

    High Energy Efficiency

    With a 92% round-trip energy efficiency, these lithium batteries outperform the typical 80% efficiency of lead-acid batteries, especially beneficial for off-grid solar applications.

    Parallel Connection Support

    The SuperPack batteries offer flexibility with parallel connections, enabling you to expand your energy system as needed. However, series connections are not supported.

    How It Works

    Victron's Lithium SuperPack batteries integrate advanced technology for optimal performance. Key components ensure safe and efficient energy storage and usage.

    Battery Management System (BMS)

    The BMS controls all charging and discharging processes, ensuring that the battery operates safely and efficiently under a wide range of environmental conditions.

    Internal Safety Switch

    This component automatically disconnects the battery if it senses unsafe operating conditions, helping prevent damage due to misuse or external factors.

    Energy Efficiency Mechanism

    The battery maintains high efficiency through its innovative charge and discharge process, ideal for solar and other renewable energy applications.

    Specifications

    Chemistry LiFePO4
    Nominal Voltage 12.8 V
    Nominal Capacity @ 25 °C 60 Ah
    Nominal Energy @ 25 °C 768 Wh
    Nominal Capacity @ 0 °C 48 Ah
    Cycle Life @ 80% DoD and 25 °C 2500 cycles
    Max. Continuous Discharge Current 30 A
    Peak Discharge Current (10 sec) 80 A
    Charge Voltage, Absorption 14.2 V €“ 14.4 V
    Charge Voltage, Float 13.5 V
    Max. Continuous Charge Current 30 A
    Operating Temperature (Discharge) -20 °C to +50 °C
    Operating Temperature (Charge) 0 °C to +45 °C
    Storage Temperature -40 °C to +65 °C
    Dimensions (h x w x d) 213 x 229 x 138 mm
    Weight 9.5 kg
    Protection Class IP 43
