Victron Lithium Super Pack 128V/100Ah (M8) - BAT512110710
Victron Lithium Super Pack 128V/100Ah (M8) - BAT512110710
Couldn't load pickup availability
Specification
- SKU:PES-ESS-BTS-0032
- Brands: Victron Energy
- Documents:
-
Technology:
- AGM / Lead-Acid
- Technology list.single line text field]: AGM / Lead-Acid

Product Description
-

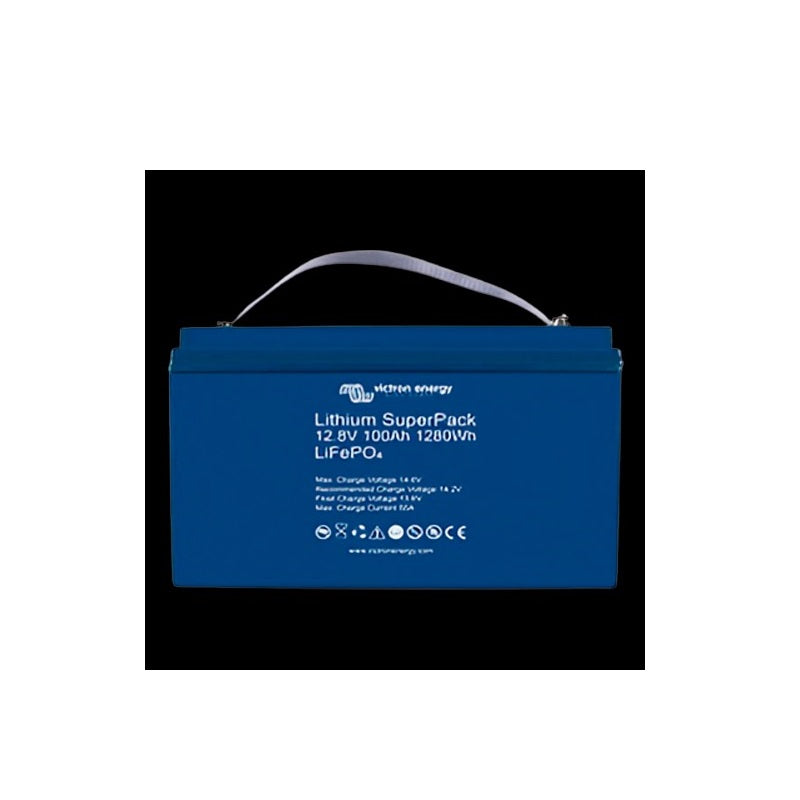

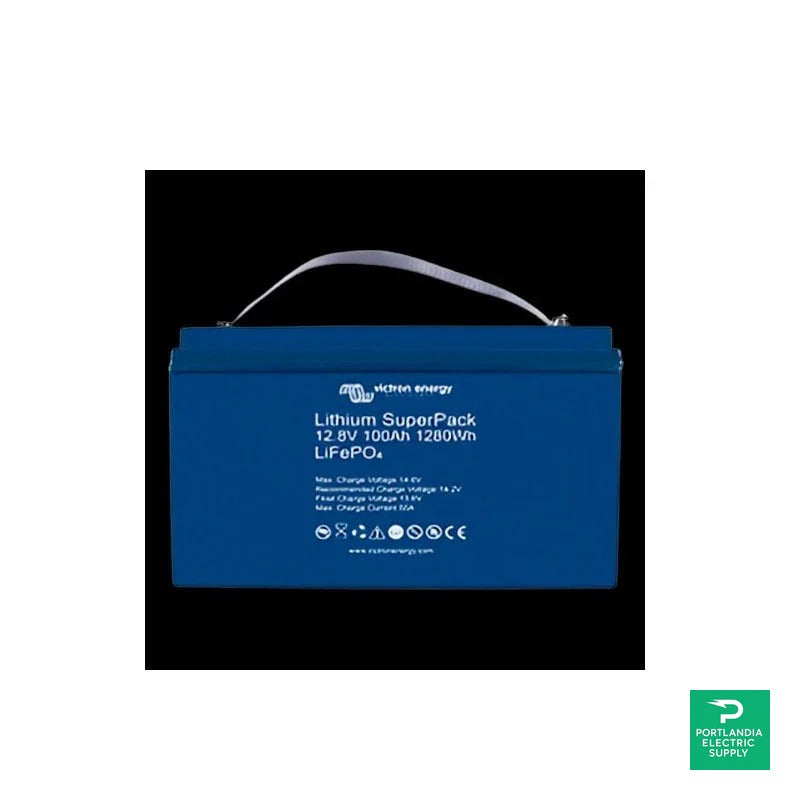

Victron LiFePO4 SuperPack Battery 12.8V/100Ah
The Victron Energy BAT512110710 SuperPack battery stands out for its integrated BMS and safety switch, simplifying installation with no need for additional components. This battery is engineered to deliver reliable power while ensuring protection against over discharge, overcharge, and temperature extremes. Perfect for various applications, it offers a high level of durability and efficiency.
Product Features
Seamless Installation
Designed with ease of use in mind, the SuperPack batteries require no external components, thanks to their built-in BMS and safety switch. This feature significantly simplifies setup, making it ideal for both novice and experienced users.
Enhanced Safety Mechanisms
With its internal switch, this battery automatically disconnects in conditions of excessive discharge, overcharge, or extreme temperatures, providing robust protection for prolonging battery life.
Resistance to Abuse
The Li-ion technology does away with common lead-acid battery issues like sulfation, allowing for partial charges without degradation. This contributes to a longer service life and enhances reliability.
Superior Energy Efficiency
Especially beneficial for off-grid solar systems, the battery boasts higher round-trip energy efficiency compared to lead-acid batteries, achieving up to 92%, thereby optimizing energy use.
Flexible Parallel Connection
The SuperPack allows for multiple batteries to be connected in parallel, tailoring storage capacity as needed. Note that series connections are not supported to mitigate risk and maintain performance.
How It Works
Utilizing advanced lithium-iron-phosphate technology, the Victron SuperPack battery incorporates safety features and management systems to offer optimal performance in a variety of conditions. These components work together to ensure efficiency, safety, and ease of use.
Integrated Battery Management System (BMS)
Manages and safeguards the battery by regulating charge and discharge cycles, thereby enhancing safety and extending battery life.
Automatic Safety Disconnect Switch
Ensures battery protection by severing power when exposed to potentially harmful conditions, such as excessive discharge or charge.
Lithium-Iron-Phosphate Chemistry
This chemistry not only ensures higher energy density and safety but also longer cycle life and enhanced performance over traditional lead-acid batteries.
Specifications
Nominal Voltage 12.8 V Nominal Capacity @ 25 C 100 Ah Nominal Energy @ 25 C 1280 Wh Cycle Life at 80% DoD 2500 cycles Max Continuous Discharge Current 100 A Peak Discharge Current (10 sec) 150 A End of Discharge Voltage 10 V Charge Voltage, Absorption 14.2 V - 14.4 V Charge Voltage, Float 13.5 V Max Continuous Charge Current 100 A Operating Temperature Discharge: -20 C to +50 C, Charge: 0 C to +45 C Storage Temperature -40 C to +65 C Humidity (non-condensing) Max. 95% Protection Class IP 43 Dimensions (H x W x D) 220 x 330 x 172 mm Weight 14 kg -
