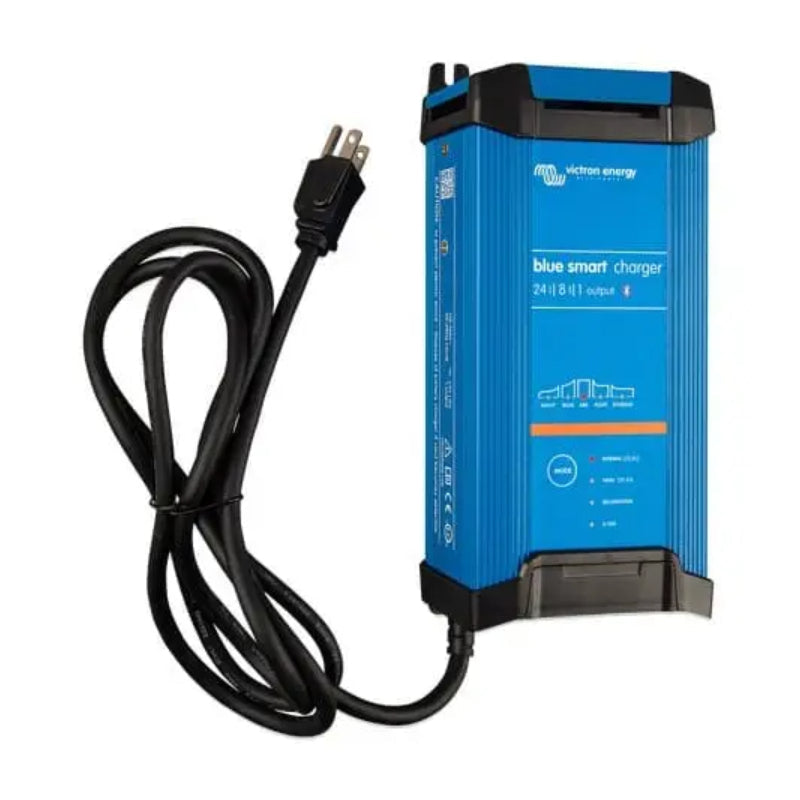

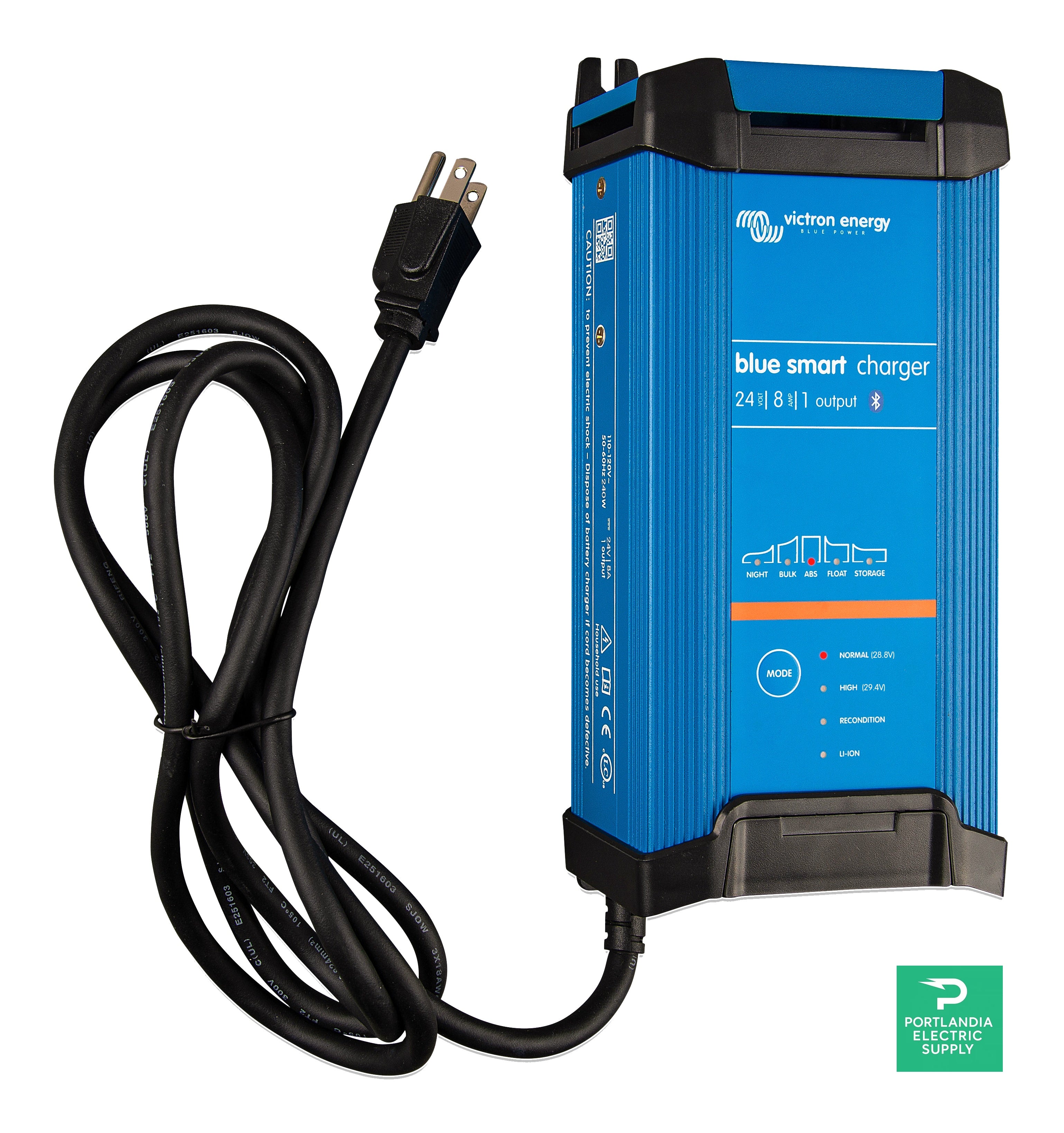

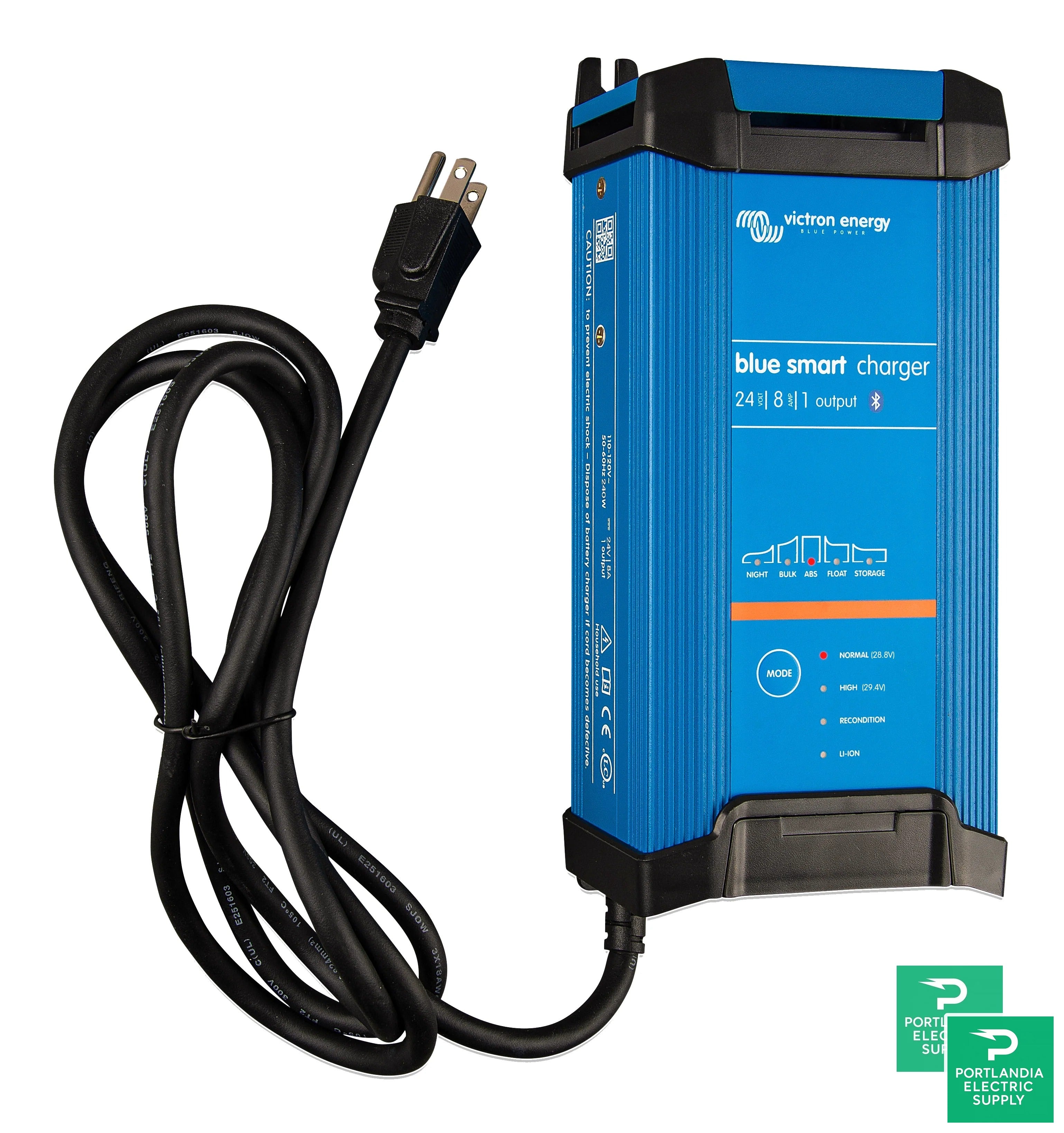

Victron Blue Smart IP22 Charger 24/8 (1) 120V - BPC240845102

Victron Blue Smart IP22 Charger 24/8 (1) 120V - BPC240845102

Return policy

Specification

  • SKU:PES-PA-ELC-0739
  • Brands: Victron Energy
  • Documents:
View full details
  • Product Description

    Victron Energy BPC240845102

    The Victron Blue Smart IP22 Charger 24/8 is a cutting-edge battery charger designed to efficiently charge and manage your batteries with advanced features. This charger stands out due to its smart network capabilities, ensuring that users can monitor and adjust settings wirelessly via Bluetooth. By utilizing high efficiency, it not only saves energy but also minimizes heat generation, solidifying its position as a top choice for effective battery management.

    Product Features

    Wireless Monitoring via Bluetooth

    With the Victron Blue Smart Charger, users can effortlessly monitor voltage and current levels wirelessly. The Bluetooth Smart functionality allows for easy settings adjustments and regular updates to the charger, ensuring its features stay in line with the latest technology.

    Enhanced Efficiency

    This charger boasts an impressive efficiency rating of up to 94%. This level of efficiency translates to significantly reduced heat generation compared to standard chargers, making it a reliable choice for long-term battery charging needs.

    Adaptive Charging Algorithm

    The Blue Smart IP22 Charger employs an innovative adaptive 6-stage charge algorithm, which optimizes the charging process based on battery usage. This algorithm includes phases such as bulk, absorption, recondition, float, and storage, guaranteeing optimal battery care.

    Fully Programmable Settings

    Users can customize essential charging parameters, including absorption, float, and storage voltages. Thanks to the Bluetooth app, even the reconditioning settings can be tailored, giving users greater control over their charging experience.

    Automatic Storage Mode

    The storage mode activates after 24 hours without battery discharge, reducing the float voltage to minimize gassing and plate corrosion. This proactive feature prevents electrolyte stratification and sulfation, which are common causes of premature battery failure.

    How It Works

    The Victron Blue Smart IP22 Charger operates by intelligently managing the charge cycle to ensure batteries are charged efficiently and safely. With components designed for optimal performance, it offers a seamless charging experience through modern technologies.

    Bluetooth Connectivity

    The Bluetooth capability enables users to connect and control the charger from their devices, facilitating real-time monitoring and adjustments, ultimately enhancing user experience.

    Charge Management System

    The microprocessor-controlled adaptive charge management system plays a crucial role in defining the optimal charging stages for each battery type, ensuring longevity and reliability in battery health.

    Temperature Protection System

    As temperatures rise, the charger intelligently reduces output current to protect internal components, ensuring functionality remains uncompromised even in high heat scenarios.

    Specifications

    Input Voltage Range 100 '" 130 VAC
    Charge Current, Normal Mode 15 / 20 / 30 A
    Charge Current, NIGHT or LOW 7.5 / 10 / 15 A
    Efficiency 94%
    No Load Power Consumption 0.5 W
    Operating Temperature Range -40 to +60 °C
    Charge Voltage, Absorption Normal: 14.4 V, High: 14.7 V
    Charge Algorithm 6-stage adaptive
    Weight 1.3 kg (3 lbs)
    Protection Battery reverse polarity, output short circuit, over temperature
    Enclosure Material & Colour Aluminium (blue RAL 5012)
