Victron Energy CIP136080010

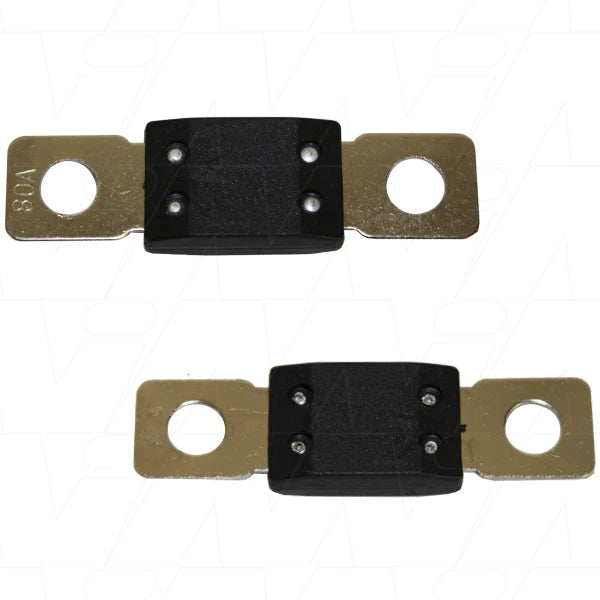

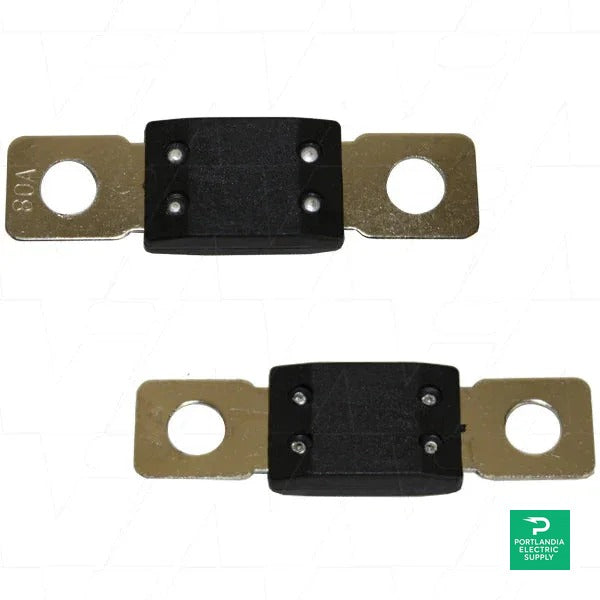

The Victron Energy MEGA-fuse 80A/32V, part number CIP136080010, is designed to provide reliable protection for high-current electrical systems. This package of five fuses ensures that you have a consistent supply of essential components that safeguard your devices from overloads. The robust build quality and performance efficiency of these fuses make them an ideal choice for various applications in energy systems, improving safety and functionality.

Product Features

Dovetail Interlocking Design

The dovetail feature of the Victron MEGA-fuse allows for seamless interlocking of multiple fuse holders. This means you can easily expand your fuse system without complicated installations, promoting a streamlined setup.

High Current Ratings

With a maximum input current of 80A at 32V, this fuse is specifically engineered to handle significant electrical loads. It ensures that your high-power devices operate efficiently without the risk of overheating or failure.

Durable Fuse Holder Cap Options

The availability of both capped and uncapped fuse holders enhances flexibility in installation. These options help to maintain optimal security while allowing customization based on user preference for various electrical setups.

Compatibility with Key Devices

This MEGA-fuse is highly recommended for use with other Victron Energy products, particularly in parallel connections with Multi or Quattro inverter/chargers. This feature enhances system efficiency and power management.

Sturdy Copper Construction

Built with high-quality copper, the Victron MEGA-fuse not only ensures reliability but also offers minimal voltage drop across the connection. The use of durable materials reflects Victron Energy's commitment to quality and long-lasting performance.

How It Works

The Victron MEGA-fuse operates by interrupting the circuit when an overload occurs, thereby preventing damage to connected devices. Its straightforward construction allows for easy installation and replacement, making it an essential component in modern electrical systems.

Fuse Operation Overview

When the current exceeds the fuse's rated capacity, the internal element melts, breaking the circuit and stopping the flow of electricity. This quick action protects other components from electrical damage.

Stacked Configuration Benefits

Using stacked fuse holders with the high current busbar enhances both capacity and connectivity for multiple high-power users. This approach simplifies organization and management of fuses while minimizing space requirements.

Maintaining Electrical Safety

Regularly inspecting and replacing the MEGA-fuses as needed helps in sustaining much-needed electrical safety. This practice ensures that your system continues to function at optimal levels, safeguarding your equipment.

Specifications
