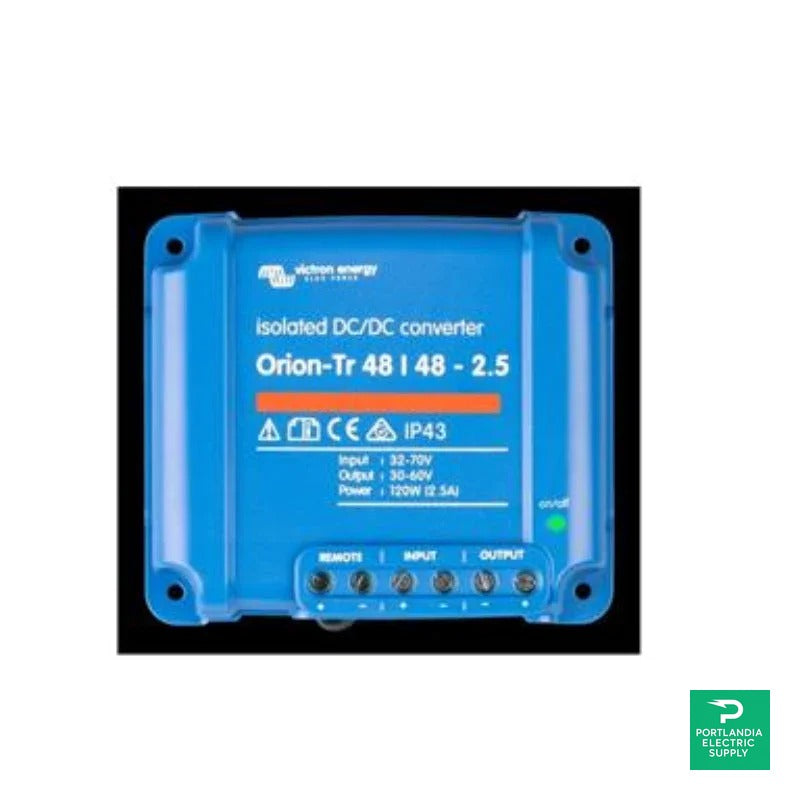

Victron Energy ORI484810110 - Orion-Tr 48/48-25A (120W)

The Victron Energy ORI484810110, specifically the Orion-Tr 48/48-25A DC-DC converter, is engineered to efficiently convert 48V input to 48V output, delivering a maximum current of 25A. This isolated converter is perfect for applications that require a dependable power supply, enhancing the performance of auxiliary systems in both automotive and marine environments. With its compact size and robust features, it guarantees consistent operation, ensuring optimal performance.

Product Features

Remote On-Off Functionality

The remote on-off capability of the Victron Energy ORI484810110 allows users to eliminate the need for a high-current switch in the input wiring. It enables operation through a low-power switch or even an engine run/stop switch, providing convenience and safety for your electrical setup.

Adjustable Output Voltage

This flexible DC-DC converter allows for adjustable output voltage settings, making it ideal not only for powering devices but also for functioning effectively as a battery charger for various battery types in a 48V system.

High Temperature Protection

The built-in high temperature protection feature reduces output current during high ambient temperatures, ensuring safe and dependable operation without the risk of overheating.

Easy Installation

Setting up the Victron Energy ORI484810110 is hassle-free since it features accessible screw terminals which do not necessitate any special tools, making installation quick and user-friendly.

Short Circuit Protection

This converter is designed with short circuit safety measures, safeguarding against unexpected electrical faults while maintaining stability in your power applications.

How It Works

The Victron Energy ORI484810110 operates by converting a 48V input into a stable 48V output. Its isolated design enhances safety and mitigates interference from other electrical devices, making it ideal for sensitive applications.

Input Fuse Protection

Each unit includes a non-replaceable input fuse offering extra protection to the system, guarding it against overcurrent conditions.

Galvanic Isolation

The galvanic isolation feature significantly boosts safety by providing effective separation between the input and output, thus minimizing the risk of electric shocks.

Robust Design for Varied Conditions

Constructed to endure a wide operating temperature range from -20 to +55°C, this converter reliably performs across diverse environments. The design derates output as temperature increases, ensuring long-term functionality.

Specifications

Model	Victron Energy ORI484810110 - Orion-Tr 48/48-25A
Manufacturer	Victron Energy
MPN	ORI484810110
Input Voltage Range	40-70V
Output Voltage	48.2V
Continuous Output Current	30A at 40°C
Maximum Output Current (10s)	45A at nominal output voltage
Efficiency	87%
Weight	1.8 kg (3 lb)
Dimensions	130 x 186 x 80 mm (5.1 x 7.3 x 3.2 inch)
Temperature Range	-20 to +55°C
