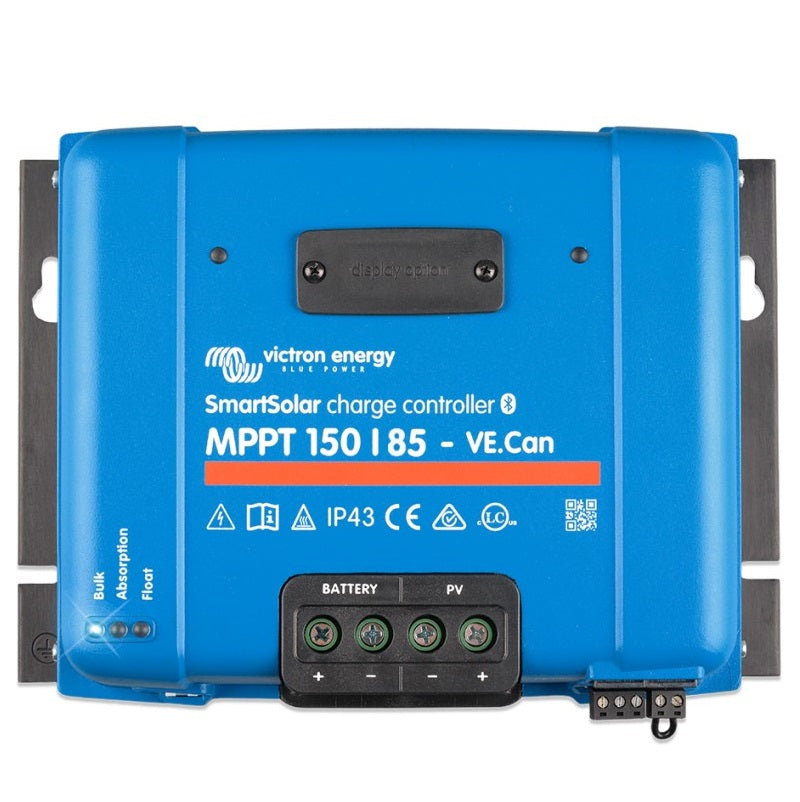

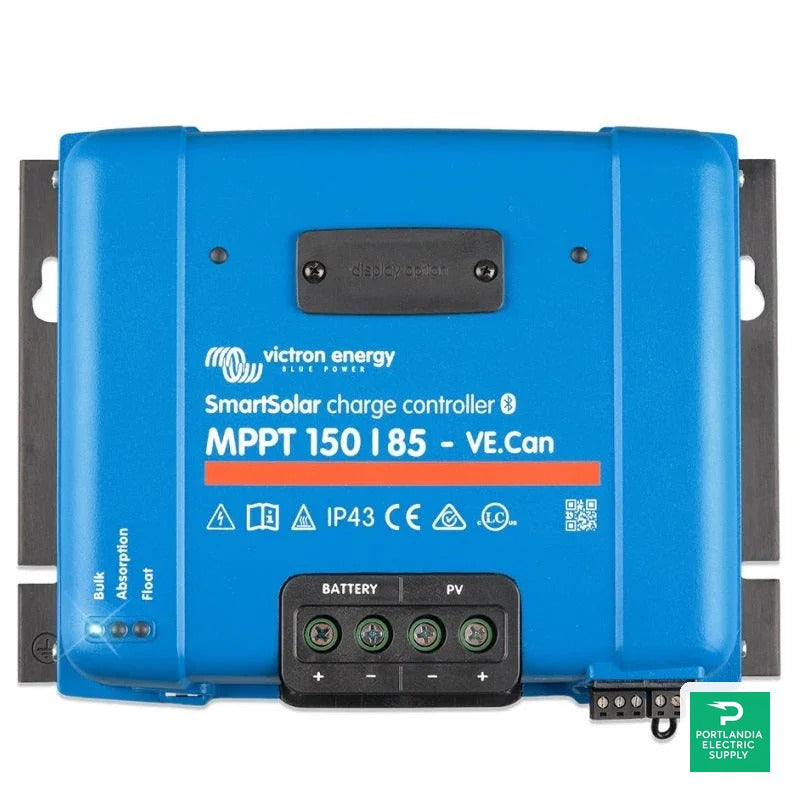

Victron SmartSolar MPPT 150/85-MC-4 VE.Can Charge Controller - SCC115085511

Victron SmartSolar MPPT 150/85-MC-4 VE.Can Charge Controller - SCC115085511

Regular price $462.88 USD
Regular price Sale price $462.88 USD
Sale Sold out
Shipping calculated at checkout.
Return policy

Specification

  • SKU:PES-PA-ELC-0149
  • Brands: Victron Energy
  • Documents:
  • Height: 10.3
  • Length: 24.6
  • Width: 29.5
View full details
  • Victron Energy SmartSolar MPPT Charge Controller with VE.Can Interface

    The Victron Energy SCC115085511 SmartSolar MPPT 150/85-MC-4 VE.Can Charge Controller is engineered to optimize energy management in solar power systems. This advanced charge controller is designed to improve energy harvest by up to 30% compared to conventional PWM controllers and up to 10% compared to slower MPPT models. Tailored for dynamic lighting conditions such as cloudy weather, this device ensures maximum power output efficiently and effectively.

    Product Features

    Ultra-fast Maximum Power Point Tracking

    In rapidly changing light conditions, the SmartSolar MPPT controller significantly enhances energy capture, maximizing power efficiency and supporting substantial energy storage.

    Advanced Maximum Power Point Detection

    This controller excels at identifying optimal power points even under partial shading, ensuring that energy harvest is not compromised by less-than-ideal conditions.

    Outstanding Conversion Efficiency

    With a conversion efficiency exceeding 98% and no requirement for a cooling fan, this charge controller operates silently and effectively, ensuring peak performance.

    Smart and Flexible Charge Algorithm

    Featuring a fully programmable charge algorithm, users can select from eight pre-configured options using a simple rotary switch for tailored energy management.

    Inclusive Bluetooth Connectivity

    Bluetooth Smart integration offers a seamless solution for configuration, monitoring, and updates, directly from your smartphone or tablet.

    How It Works

    The Victron Energy SmartSolar MPPT controller operates by intelligently identifying and tracking the maximum power point of your solar panel system, ensuring that energy flow is optimized. Its components work collectively to deliver efficient charging and device synchronization.

    Efficient VE.Can Interface

    The VE.Can interface allows synchronization of up to 25 units for scalable systems, providing a robust solution for extensive solar installations.

    Integrated Battery Recovery Function

    Even if a battery has been completely discharged, this function allows the system to initiate charging, safeguarding battery health and system reliability.

    Remote Monitoring Capabilities

    The charge controller supports data connectivity through VE.Direct and Bluetooth, facilitating remote system monitoring and management via GX devices or smartphone applications.

    Specifications

    Battery Voltage 12/24/48V Auto Select (36V: manual)
    Rated Charge Current 85A
    Maximum Efficiency 98%
    Data Communication VE.Can, VE.Direct, Bluetooth
    Operating Temperature -30 to +60C (full rated output up to 40C)
    Maximum PV Power (12V) 1000W
    Weight 4.5 kg
    Dimensions 216 x 295 x 103 mm
    Protection Category IP43 (electronics), IP22 (connection area)
    Environmental Condition Indoor, unconditioned
