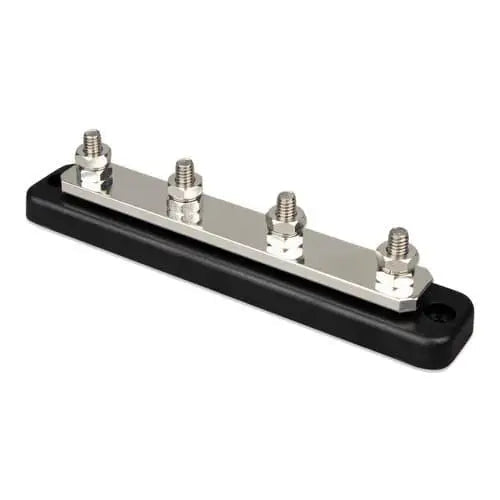

Victron Busbar 250A with Cover - VBB125040010

The Victron Energy Busbar 250A with cover is designed for efficient power distribution and safety. This product, identified by the model number VBB125040010, is perfect for heavy-duty applications requiring a reliable electrical connection. With a maximum current rating of 250A and a maximum voltage of 70VDC, this busbar ensures optimal performance and durability in various settings.

Product Features

High Current Rating

The Victron Energy VBB125040010 features a robust maximum current rating of 250A, making it suitable for high-demand applications. This ensures that power is distributed efficiently without risk of overheating, enhancing overall safety and reliability.

Durable Construction

Constructed with stainless steel terminals, this busbar guarantees long-lasting durability and resistance to corrosion. This material choice enhances usability by ensuring that connections remain secure and reliable over time.

Versatile Terminal Size

Featuring a terminal diameter of 5/16 inch (8 mm), the busbar accommodates a wide range of cables and connectors. This flexibility allows users to easily integrate the busbar into existing systems without extensive modifications.

Optimal Torque Specifications

The recommended torque of 110 lbf·inch (13 N·m) for securing connections offers peace of mind. This specification ensures that each terminal is fastened tightly enough to prevent loosening, which could compromise electrical performance.

Compact Dimensions

With dimensions of 1.9 x 9.4 x 2.8 inches, the Victron Energy Busbar is compact enough for space-constrained installations. This feature allows for easier integration in various setups, making it a practical choice for professionals and enthusiasts alike.

How It Works

The Victron Energy Busbar operates by providing a centralized point for the distribution of electrical power. It connects multiple electrical circuits and allows for efficient management of electrical loads, ensuring that power flows seamlessly to all components.

Connection Points

The busbar includes four stud terminals, allowing for multiple connections. This feature maximizes utility by enabling the integration of several circuits to one central point, simplifying wiring and improving overall system efficiency.

Cover Protection

With its included cover, the busbar provides an additional layer of protection against environmental factors. This cover helps prevent accidental contact with live terminals, enhancing user safety and maintaining system integrity.

Material Integrity

The use of ABS material, classified as UL 94 V-0 for the base and UL 94 V-2 for the cover, ensures that the busbar meets strict safety standards. This contributes to the overall durability and reliability of the product in demanding environments.

Specifications

Specification Title	Specification Value
Max. Current Rating	250 A
Max. Voltage Rating	70 VDC
Terminal Diameter	5/16 inch / 8 mm
Terminal Height	0.67 inch / 17 mm
Terminal Material	Stainless Steel
Hex Nut Material	Tin-plated Copper
Recommended Torque	110 lbf·inch / 13 N·m
Busbar Strip Material	Tin-plated Copper (5 x 24 mm)
Base Material	ABS, Black, UL 94 V-0
Cover Material	ABS, Black, UL 94 V-2
Weight (4 terminals)	1.0 lb / 0.45 kg
Dimensions (hxwxd)	1.9 x 9.4 x 2.8 inch (48 x 237 x 70 mm)

Country/region

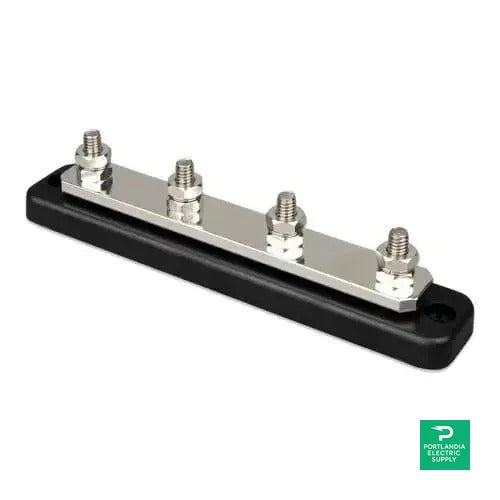

Victron Busbar 250A 4P +cover - VBB125040010
