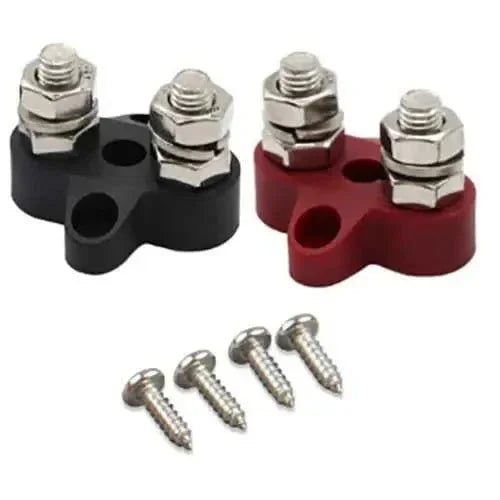

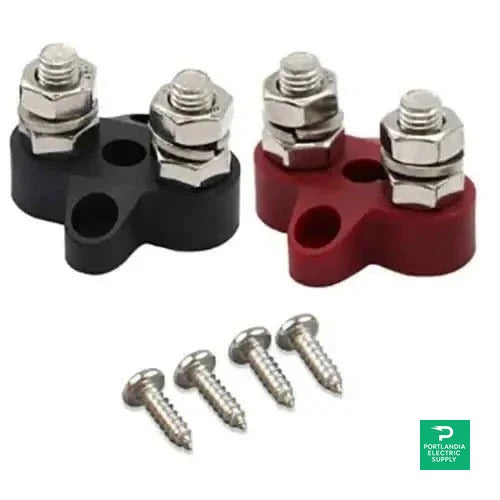

Victron Dual Terminal Stud M8-linked set (1 red/1 black) - VBB413020010
Victron Dual Terminal Stud M8-linked set (1 red/1 black) - VBB413020010
Couldn't load pickup availability
Victron Dual Terminal Energy VBB413020010
The Victron Dual Terminal Stud M8 (5/16'') is designed to ensure secure and reliable connections in various applications. This robust stud supports a maximum current of 150 A and a maximum voltage of 70 VDC, making it an essential component for efficient power management. With its stainless steel construction and precise dimensions, it provides both durability and ease of use, ideal for those who require dependable performance in their electrical systems.
Product Features
High Current Rating
The Victron Dual Terminal Stud M8 can handle a substantial current of up to 150 A, which is critical for demanding electrical applications. This capability ensures that users can rely on it for robust performance without overheating or electrical failures.
Durable Stainless Steel Design
Constructed from high-quality stainless steel, this terminal stud not only offers longevity but also excellent resistance against corrosion. This feature significantly enhances its usability in varying environmental conditions, ensuring a stable connection over time.
Precise Dimensions
Measuring 17 mm in height and an M8 (5/16 inch) diameter, the design of the Victron Dual Terminal Stud M8 is optimized for compatibility with various terminal configurations. This precision guarantees a good fit and reliable electrical connection, streamlining the installation process.
Robust Torque Specifications
This terminal stud has a recommended torque of 10 NA‚·m (90 lbfA‚·inch), ensuring a secure connection without the risk of damage during installation. This careful design consideration protects both the stud and the attached component, promoting reliable performance.
Versatile Busbar Compatibility
Featuring a tin-plated copper busbar strip of size 1.0 x 13 mm, the Victron Dual Terminal Stud M8 is versatile enough to fit various systems. This compatibility facilitates easy integration into pre-existing setups, enhancing its functionality.
How It Works
The Victron Dual Terminal Stud M8 operates by providing reliable connections within electrical circuits. Each component is engineered to maximize conductivity while minimizing resistance, ensuring efficient energy transfer for various applications.
Stainless Steel Terminals
The terminals made from stainless steel allow for excellent conductivity and durability. They are engineered to withstand varying weather conditions, which directly supports the longevity and performance of the electrical system.
Glass Fiber Reinforced Base
The base material is crafted from glass fiber reinforced nylon, providing substantial strength and thermal resistance. This component helps maintain a stable connection, preventing breakage or disconnection under stress.
Easy Installation Process
Designed for straightforward installation, the Victron Dual Terminal Stud M8 promotes ease of use for both professionals and DIY enthusiasts. Its thoughtful design allows for quick setup, reducing the time required to establish reliable connections.
Specifications
| Max. Current | 150 A |
| Max. Voltage | 70 VDC |
| Terminal Diameter | M8 (5/16 inch) |
| Terminal Height | 17 mm / 0.67 inch |
| Terminal Material | Stainless Steel |
| Hex Nut Material | Stainless Steel |
| Recommended Torque | 10 NA‚·m / 90 lbfA‚·inch |
| Busbar Material | Tin-plated Copper (1.0 x 13 mm) |
| Base Material | Glass fiber reinforced nylon |
| Weight | 70 g |
| Dimensions (hxwxd) | 45 x 43 x 32 mm / 1.8 x 1.7 x 1.3 inch |
Specification
- SKU:PES-PA-ELC-0791
- Brands:
- Documents:
- Isfollow:
- Isindex:
- Mpn number:
- MPN Number: VBB413020010
Product Description
-
Victron Dual Terminal Energy VBB413020010
The Victron Dual Terminal Stud M8 (5/16'') is designed to ensure secure and reliable connections in various applications. This robust stud supports a maximum current of 150 A and a maximum voltage of 70 VDC, making it an essential component for efficient power management. With its stainless steel construction and precise dimensions, it provides both durability and ease of use, ideal for those who require dependable performance in their electrical systems.
Product Features
High Current Rating
The Victron Dual Terminal Stud M8 can handle a substantial current of up to 150 A, which is critical for demanding electrical applications. This capability ensures that users can rely on it for robust performance without overheating or electrical failures.
Durable Stainless Steel Design
Constructed from high-quality stainless steel, this terminal stud not only offers longevity but also excellent resistance against corrosion. This feature significantly enhances its usability in varying environmental conditions, ensuring a stable connection over time.
Precise Dimensions
Measuring 17 mm in height and an M8 (5/16 inch) diameter, the design of the Victron Dual Terminal Stud M8 is optimized for compatibility with various terminal configurations. This precision guarantees a good fit and reliable electrical connection, streamlining the installation process.
Robust Torque Specifications
This terminal stud has a recommended torque of 10 NA‚·m (90 lbfA‚·inch), ensuring a secure connection without the risk of damage during installation. This careful design consideration protects both the stud and the attached component, promoting reliable performance.
Versatile Busbar Compatibility
Featuring a tin-plated copper busbar strip of size 1.0 x 13 mm, the Victron Dual Terminal Stud M8 is versatile enough to fit various systems. This compatibility facilitates easy integration into pre-existing setups, enhancing its functionality.
How It Works
The Victron Dual Terminal Stud M8 operates by providing reliable connections within electrical circuits. Each component is engineered to maximize conductivity while minimizing resistance, ensuring efficient energy transfer for various applications.
Stainless Steel Terminals
The terminals made from stainless steel allow for excellent conductivity and durability. They are engineered to withstand varying weather conditions, which directly supports the longevity and performance of the electrical system.
Glass Fiber Reinforced Base
The base material is crafted from glass fiber reinforced nylon, providing substantial strength and thermal resistance. This component helps maintain a stable connection, preventing breakage or disconnection under stress.
Easy Installation Process
Designed for straightforward installation, the Victron Dual Terminal Stud M8 promotes ease of use for both professionals and DIY enthusiasts. Its thoughtful design allows for quick setup, reducing the time required to establish reliable connections.
Specifications
Max. Current 150 A Max. Voltage 70 VDC Terminal Diameter M8 (5/16 inch) Terminal Height 17 mm / 0.67 inch Terminal Material Stainless Steel Hex Nut Material Stainless Steel Recommended Torque 10 NA‚·m / 90 lbfA‚·inch Busbar Material Tin-plated Copper (1.0 x 13 mm) Base Material Glass fiber reinforced nylon Weight 70 g Dimensions (hxwxd) 45 x 43 x 32 mm / 1.8 x 1.7 x 1.3 inch -
