VSUN 405W Solar Panel 108 Cell Bifacial VSUN405-108BMH Commercial 828 panels per Container (Truckload)
VSUN 405W Solar Panel 108 Cell Bifacial VSUN405-108BMH Commercial 828 panels per Container (Truckload)
Regular price
$163.35 USD
Regular price
Sale price
$163.35 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SPL-0203
- Documents:
- Height: 1.18
- Length: 67.87
- Width: 44.61
Product Description
-

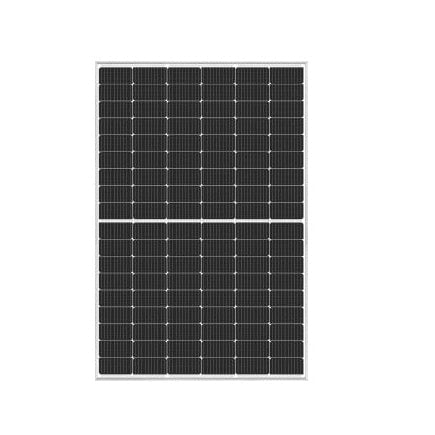

The VSUN VSUN405‑108BMH is a 405 W bifacial mono‑PERC module with 108 half-cut cells, featuring a sleek black anodized frame and enhanced rear-side energy capture.
- Rated Power: 405 W • Efficiency: ~20.75%
- Electrical Specs (STC): Vmpp ≈ 31.36 V • Impp ≈ 12.92 A • Voc ≈ 37.36 V • Isc ≈ 13.78 A • Tolerance: 0 ~ +3 %
- Max System Voltage: 1500 V DC • Series Fuse: 30 A • Connectors: MC4 compatible (IP68 junction box)
- Mechanical Ratings: 5400 Pa snow (front) / 2400 Pa wind (rear)
- Operating Temperature: −40 °F to +185 °F (−40 °C to +85 °C)
- Bifacial Gain: Up to ~30% extra output under high-albedo conditions
- Warranty: 12‑year product warranty; 25‑year linear performance warranty (≥ 80% of rated output)
- Packing: 36 panels/pallet • 23 pallets/container = 828 panels total
-
