Sunergy 365W Black 144 Half-cell Mono Solar Panel - VSUN365-120M-BB
Sunergy 365W Black 144 Half-cell Mono Solar Panel - VSUN365-120M-BB
$0.5/watt
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SPL-0073
- Brands: VSUN
- Documents:
- Height: 3.5
- Length: 176.2
- Panel wattage: 365
- Width: 104.8
Product Description
-

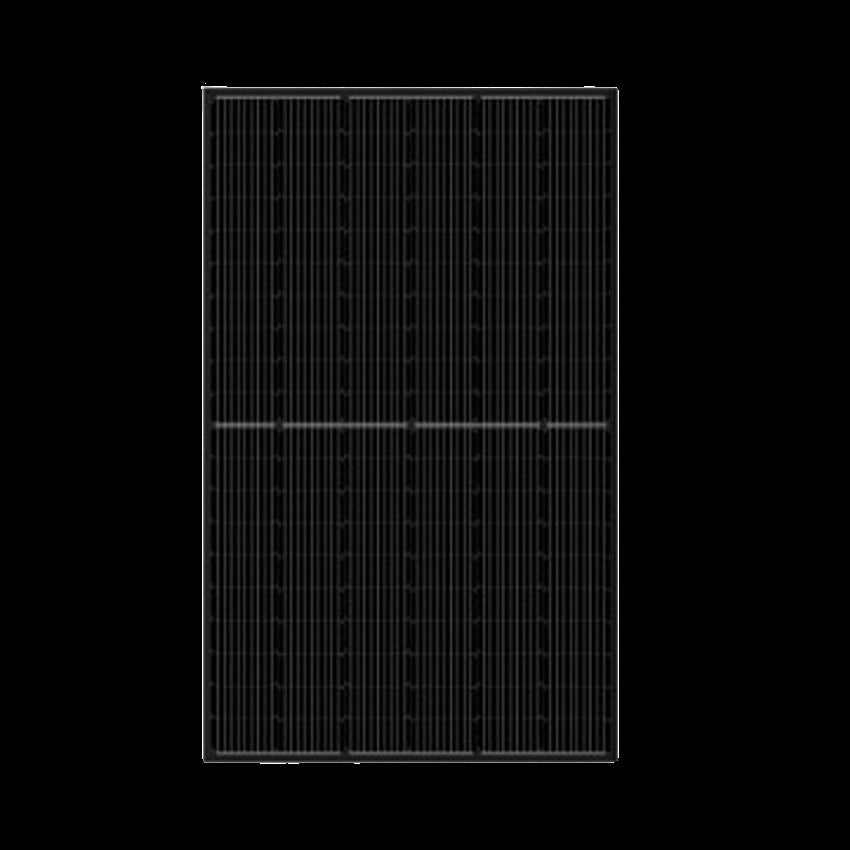

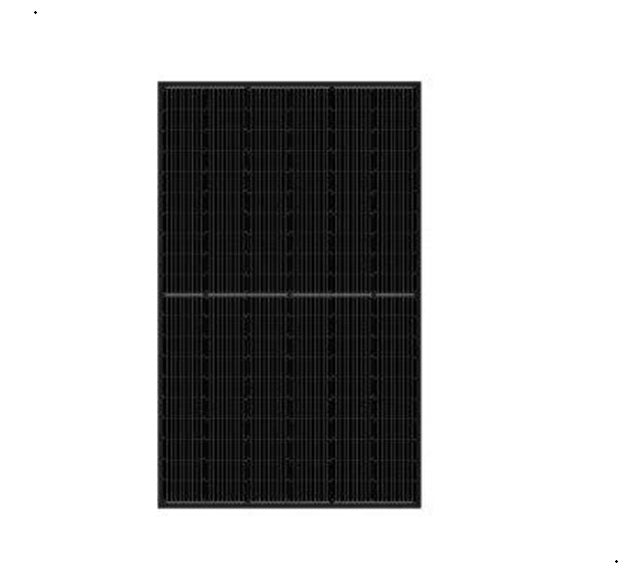

VSUN VSUN365-120M-BB
The VSUN365-120M-BB solar panel, crafted by VSUN, offers outstanding energy efficiency and reliability, making it a prime choice for those seeking greener and smarter renewable energy solutions. Featuring a high module efficiency of 19.77%, this panel helps maximize power output even in constrained spaces.
Product Features
Impressive Power Output
Enjoy remarkable power with the VSUN365-120M-BB, which delivers up to 365 watts of clean energy, suitable for diverse applications. This feature ensures maximum energy yield.
Enhanced Module Efficiency
Benefit from the 19.77% module efficiency that increases energy capture, especially valuable in limited space installations.
Advanced PERC Technology
Featuring advanced PERC technology, this panel enhances performance under shaded conditions and low-light environments, optimizing its power generation.
Robust Warranty
VSUN offers a substantial 12-year material and workmanship warranty alongside a 25-year linear power output guarantee, reinforcing the panel's performance and reliability over time.
Durability and Resistance
Designed to withstand harsh conditions, the panel includes certifications for salt and ammonia resistance, as well as load capacities up to 5400Pa for snow and 2400Pa for wind.
How It Works
The VSUN365-120M-BB operates by converting sunlight into electrical energy through its monocrystalline solar cells. This process is optimized through its advanced cell technology and durable materials, which ensure consistent power delivery.
Monocrystalline Solar Cells
These high-efficiency cells facilitate excellent energy conversion, providing superior output even in varying environmental conditions.
Robust Frame and Glass
The solar panel is equipped with a black anodized aluminum frame and toughened safety glass, protecting the cells while allowing efficient sunlight penetration.
Efficient Junction Box
Fitted with an IP67-rated junction box, this component ensures reliable power connectivity and efficient energy flow.
Specifications
Module Type VSUN365-120M-BB Maximum Power - Pmax (W) 365 Open Circuit Voltage - Voc (V) 40.7 Short Circuit Current - Isc (A) 11.43 Module Efficiency 19.77% Dimensions 1762×1048×35 mm Weight 19.6 kg Frame Black anodized aluminum Front Glass 3.2 mm toughened safety glass Junction Box IP67, 3 diodes -
