• VSUN VSUN490N-120BMH-DG-BB
1 1

In Stock

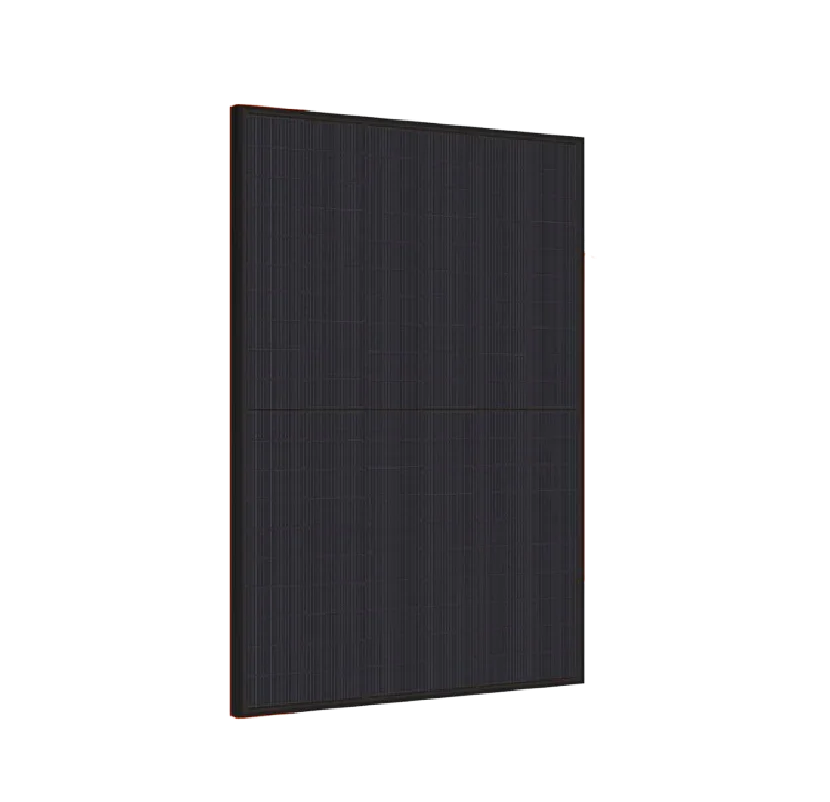

VSUN 120 Mono Cells Black/Black 490w Solar Panel - VSUN490N-120BMH-DG-BB

VSUN 120 Mono Cells Black/Black 490w Solar Panel - VSUN490N-120BMH-DG-BB

$205.80 USD

$0.5/watt

$205.80 USD
Sale Sold out
Shipping calculated at checkout.
Return policy

Specification

  • SKU:PES-SPS-SPL-0157
  • Brands: VSUN
  • Height: 1134
  • Length: 1908
  • Panel wattage: 490
  • Short description: Explore our full range of Solar Modules <a href="https://www.portlandiaelectric.supply/solar-panels/" target="_new" rel="noopener">here</a> to find the perfect solution for your energy needs.
  • Technology:
    • N-Type
View full details

Product Description

  • VSUN VSUN490N-120BMH-DG-BB Solar Panel Overview


    The VSUN VSUN490N-120BMH-DG-BB is a premium 490 W solar panel designed for maximum efficiency and durability. Equipped with advanced N-type monocrystalline cells, this solar panel achieves impressive performance and aesthetic appeal with its sleek black-on-black design. Ideal for residential, commercial, and utility-scale projects, this module is engineered for long-term reliability and energy generation.

    Product Features

    High Power Output


    The VSUN VSUN490N-120BMH-DG-BB offers a maximum power output of 490 W, ensuring optimal energy production for a variety of applications.

    Advanced N-Type Cell Technology


    Featuring 120 monocrystalline cells, this solar panel ensures superior efficiency and performance, even in low-light conditions.

    Durable Black-on-Black Design


    The aesthetically pleasing black-on-black finish complements modern architectural designs while providing robust performance.

    Reliable in Harsh Conditions


    With a high mechanical load capacity, this module can withstand heavy snow loads up to 5400 Pa and wind loads up to 2400 Pa, making it ideal for diverse climates.

    Excellent Temperature Coefficient


    With a temperature coefficient of -0.35%/ °C, the panel delivers consistent performance even in high-temperature environments.

    How It Works


    The VSUN VSUN490N-120BMH-DG-BB solar panel operates by capturing sunlight using its high-efficiency monocrystalline cells, converting it into usable electricity. The following features enhance its operation:

    Optimized Cell Arrangement


    The 120-cell configuration minimizes resistance and improves energy output under varying conditions.

    Advanced Junction Box


    Equipped with an IP68-rated junction box, the panel ensures secure connections and protection against environmental factors.

    Integrated Anti-Reflective Coating


    The panel's glass features an anti-reflective coating to increase light absorption and maximize energy production.

    Specifications



























































    Model Number VSUN490N-120BMH-DG-BB
    Nominal Max. Power (Pmax) 490 W
    Opt. Operating Voltage (Vmp) 40.6 V
    Opt. Operating Current (Imp) 12.07 A
    Open Circuit Voltage (Voc) 48.9 V
    Short Circuit Current (Isc) 12.72 A
    Module Efficiency 20.4%
    Dimensions 2094 × 1038 × 35 mm
    Weight 25.5 kg
    Cell Type Monocrystalline
    Cell Arrangement 120 (6 x 20)
    Front Glass 3.2 mm tempered glass with anti-reflective coating
    Frame Anodized aluminium alloy
    Junction Box IP68, 3 bypass diodes
    Operating Temperature -40 °C ~ +85 °C
    Max. System Voltage 1500 V (IEC/UL)
    Max. Series Fuse Rating 20 A
    Fire Performance Class C
    Mechanical Load 5400 Pa (snow), 2400 Pa (wind)

    Compatibility


    The VSUN VSUN490N-120BMH-DG-BB is compatible with leading inverter brands and mounting systems, ensuring seamless integration into various solar energy systems.

    Certification


    This module complies with international standards, including IEC61215 and IEC61730, ensuring reliable and safe operation.

    Notes

    • Includes a 25-year linear power warranty and a 12-year product warranty.
    • Designed for easy installation with pre-drilled mounting holes.
