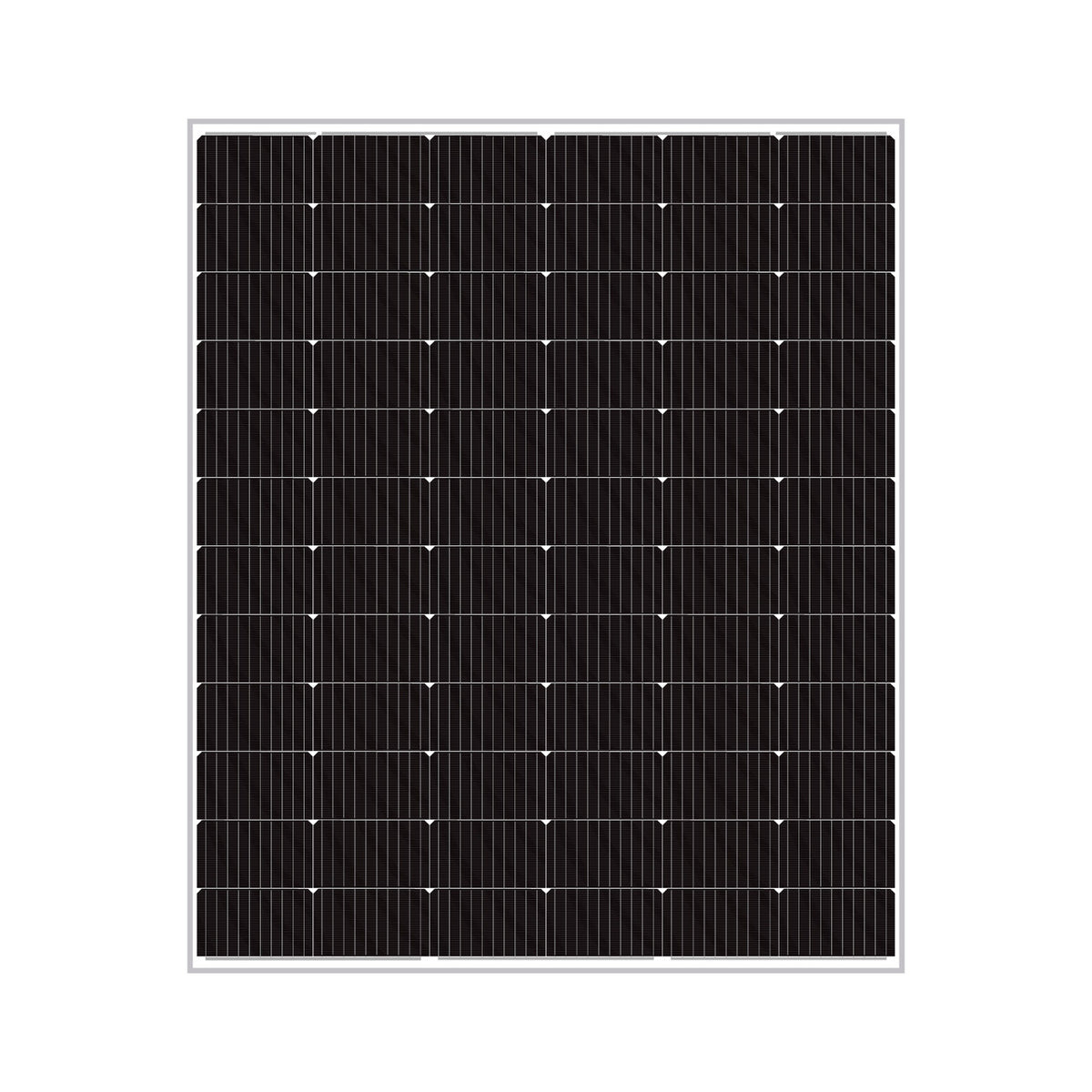

Waaree Energies WSMD-380 380Wp PERC Monocrystalline Solar Panel
WSMD-380 | PERC Technology | 144 Half-Cell | Mono | 1500V System Voltage
Product Overview
The Waaree Energies WSMD-380 380Wp PERC Monocrystalline Solar Panel delivers exceptional energy efficiency for residential and commercial solar projects. This advanced monocrystalline module features 144 high-performance PERC half-cells arranged in a robust 12x6 configuration. With a maximum power output of 380 watts, it ensures reliable electricity generation even under varying light conditions. The panel achieves an impressive module efficiency of 18.88%, maximizing power density at 188.8 Wp/m². Its durable construction includes anti-reflection coated tempered glass and an anodized aluminum frame for long-term weather resistance. Designed for India's diverse climate, it operates efficiently between -40°C and 85°C. The integrated IP68 junction box and MC4 connectors simplify installation while ensuring safety. This solar panel is backed by a 12-year product warranty and a 25-year performance warranty, guaranteeing 81.9% output at the end of the term. It is ideal for grid-tied systems with a maximum system voltage of 1500V.
Key Benefits
High Energy Efficiency: Achieves 18.88% module efficiency to maximize power generation per square meter.
PERC Technology: Utilizes Passivated Emitter and Rear Cell design to reduce energy loss and boost output.
Extreme Temperature Resilience: Operates reliably in temperatures ranging from -40°C to 85°C for diverse climates.
Long-Term Warranty: Includes a 12-year product warranty and 25-year performance warranty guaranteeing 81.9% output.
Robust Durability: Features 3.2mm anti-reflection tempered glass and an anodized aluminum frame for weather protection.
How It Works
The Waaree WSMD-380 solar panel converts sunlight into usable electricity through advanced photovoltaic principles. Its 144 monocrystalline PERC cells absorb photons to generate electron flow. The rear passivation layer minimizes electron recombination, significantly increasing efficiency. This process ensures consistent power output even under low-light or high-temperature conditions. The panel's design optimizes energy capture for grid-tied residential and commercial systems.
Photon Absorption: Sunlight photons strike the PERC cells, exciting electrons to create direct current electricity. This initial step triggers the energy conversion process within the semiconductor material.
Electron Passivation: The rear passivation layer reduces electron loss, allowing more electrons to reach the circuit. This mechanism enhances the overall efficiency of the module significantly.
Current Collection: The generated direct current flows through the MC4 connectors to the inverter. The inverter then converts this current into usable alternating current for your home.
Technical Specifications
| Nominal Power (Pmax) | 380 Wp |
| Module Efficiency | 18.88% |
| Voltage at Max Power (Vmpp) | 39.07 V |
| Current at Max Power (Impp) | 9.75 A |
| Open Circuit Voltage (Voc) | 48.14 V |
| Short Circuit Current (Isc) | 10.16 A |
| Max System Voltage | 1500 V |
| Temperature Coefficient of Pmax | -0.37%/°C |
| Nominal Operating Cell Temp (NOCT) | 43 ± 2 °C |
| Operating Temperature Range | -40°C to 85°C |
| Cell Type | Monocrystalline PERC |
| Cell Count | 144 Half-Cells |
| Dimensions (L x W x T) | 2007 x 1003 x 40 mm |
| Weight | 23.5 kg |
| Front Glass | 3.2mm Tempered with ARC |
| Frame Material | Anodized Aluminum |
| Junction Box Protection | IP68 |
| Connector Type | MC4 Compatible |
| Series Fuse Rating | 20 A |
Certifications & Compliance
Certifications: IEC 61215, IEC 61730, ISO 9001
Inverter Compatibility: Compatible with all major grid-tied inverters (1500V max)
Environmental: PID Free, UV Resistant, RoHS Compliant
Warranty: 12 Years Product Warranty, 25 Years Performance Warranty (81.9% output)
