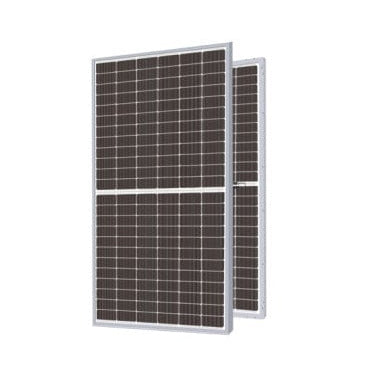

• Solar panel on a white background
1 1

In Stock

ZNShine Solar 585W Solar Panel 144 Cell Bifacial ZXM7-UHLDD144-585 Commercial 720 panels per Container (Truckload)

ZNShine Solar 585W Solar Panel 144 Cell Bifacial ZXM7-UHLDD144-585 Commercial 720 panels per Container (Truckload)

$212.90 USD
$212.90 USD
Sale Sold out
Shipping calculated at checkout.
Return policy

Specification

  • SKU:PES-SPS-SPL-0212
  • Documents:

    Datasheet
  • Height: 1.2
  • Length: 89.7
  • Width: 44.6
View full details

Product Description

  • The ZXM7‑UHLDD144‑585 Solar Panel by ZNShine is a high‑performance bifacial N‑Type TOPCon module using 144 half‑cut cells. Assembled in the USA, it is designed for high-yield commercial and utility installations.

    • Rated Power: 585 W • Efficiency: ~22.65%
    • Electrical Specs (STC): Vmpp ≈ 42.8 V • Impp ≈ 13.56 A • Voc ≈ 51.5 V • Isc ≈ 14.35 A • Tolerance: 0 ~ +5 W
    • Maximum Voltage: 1500 V DC • Fuse Rating: 30 A • Connectors: MC4‑EVO2 (IP68)
    • Mechanical Load Rating: 5400 Pa front snow / 2400 Pa wind
    • Operating Temp: −40 °C to +85 °C • Temp Coeff (Pmax): −0.30%/°C
    • Bifacial Gain: ~80% cell bifaciality factor; up to ~25‑30% rear-side gain
    • Warranty: 12‑year product warranty; 30‑year output guarantee (≥87.4% retention at year 30)
    • Packing: 36 panels per pallet; standard container: 20 pallets = 720 panels
