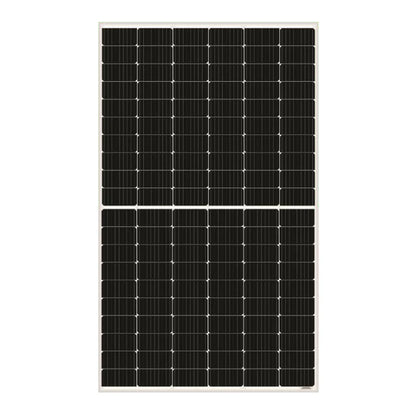

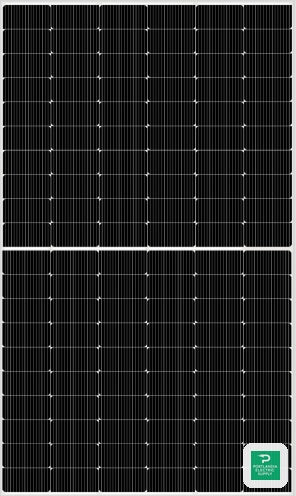

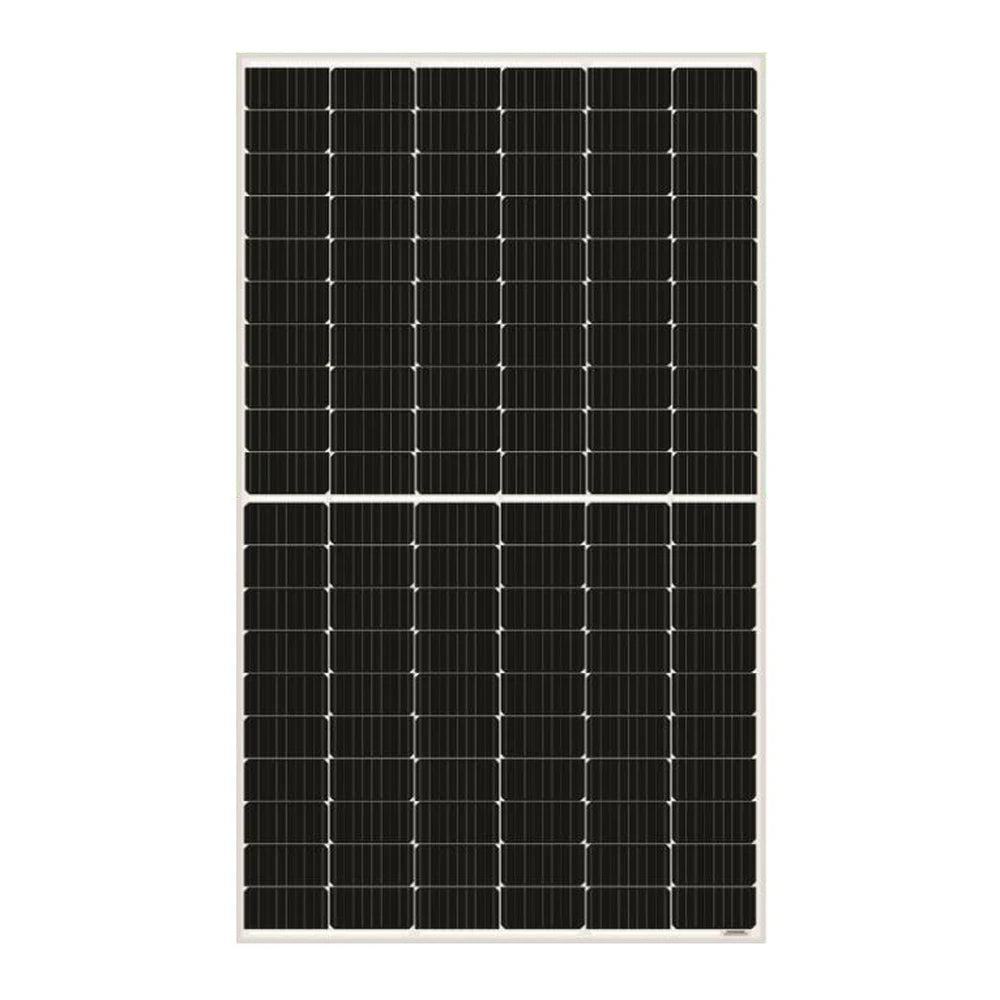

Amerisolar AS-7M120N-BHC-470W
PayPal Pay in 4 interest-free payments of $41.00 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-1067
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for ENF Solar. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. AS-7M120N-BHC-470W Product Warranty 30 Years Power Warranty 10 Years of 90 %, 30 Years of 80 % Total Degradation Rate ⏳ 0.67 % Maximum Power (Pmax) 470 Wp Voltage at Maximum Power (Vmpp) 35.05 V Current at Maximum Power (Impp) 13.41 A Open Circuit Voltage (Voc) 42.38 V Short Circuit Current (Isc) 14.15 A Panel Efficiency 21.9 % Maximum Power (Pmax) 353 Wp Voltage at Maximum Power (Vmpp) 32.94 V Current at Maximum Power (Impp) 10.73 A Open Circuit Voltage (Voc) 40.25 V Short Circuit Current (Isc) 11.42 A Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.31 %/°C Temperature Coefficient of Voc -0.26 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1908x1134x30 mm Weight 24 kg Cell Size 182×182 mm Cell Number 120 Glass Type Anti-reflection Coating, Tempered Glass Thickness 2 mm Encapsulant Type Silicones Frame Type Anodized Aluminium Junction Box Diodes 3 Jun
Technology: Bifacial, TOPCon, N-type
Power Range: 465 ~ 485 Wp
Panel Efficiency: 21.7 ~ 22.4 %
Weight: 24 kg
Seller Name: Amerisolar EU
Country: China
| SKU | PES-SPS-SOL-1067 |
|---|---|
| Manufacturer | ENF Solar |
| Container price | |
| Container qty | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Wattage |
No documents available for this product. Contact us to request documentation.
