Specification
- SKU:PES-SPS-SOL-18589
- Container price:
- Container qty:
- Odoo id:
- Pallet price:
- Pallet qty:
- Unit price:
- Manufacturer:
- Model number:
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.

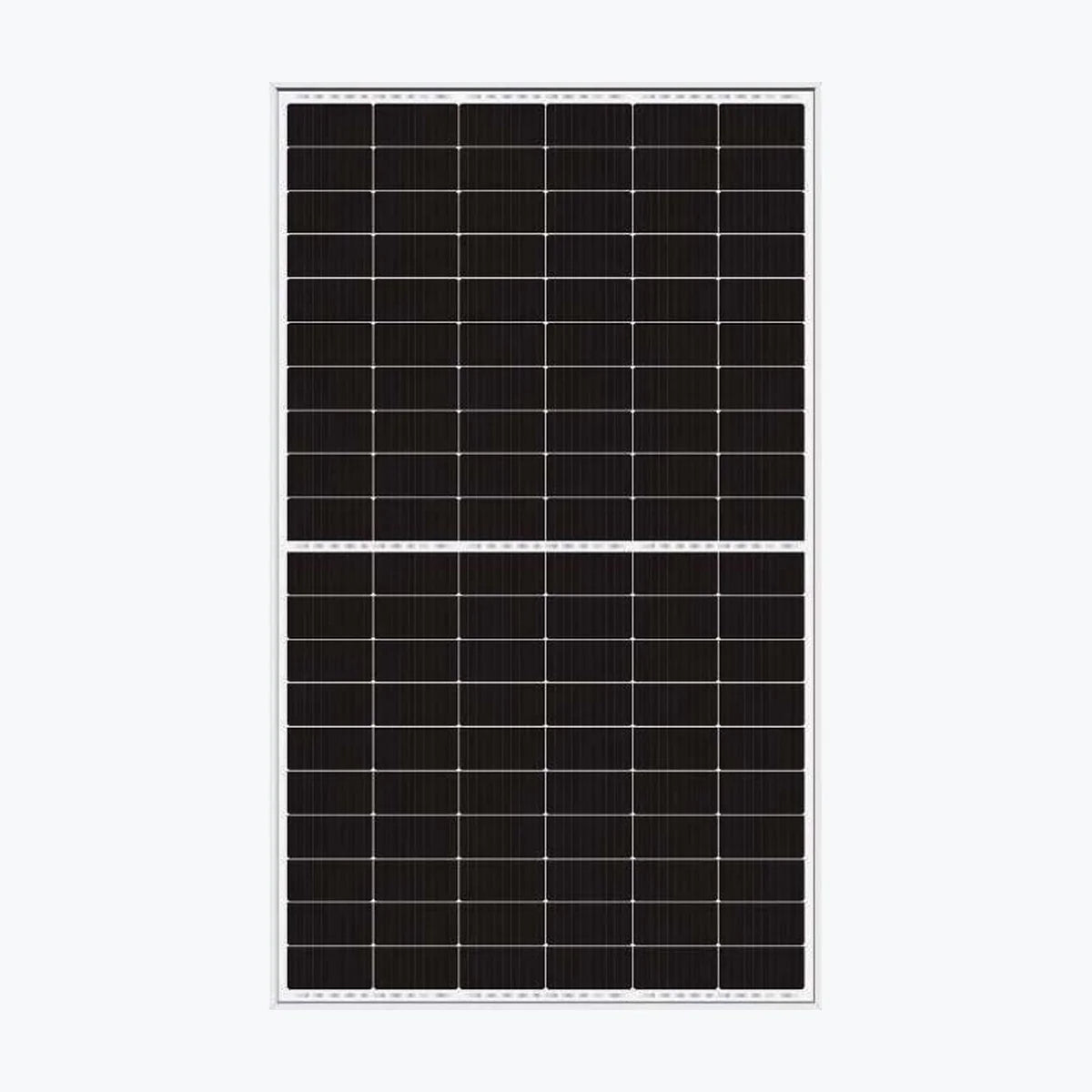

Type Monocrystalline Model No. SPV495-TM10-120 Product Warranty 12 Years Power Warranty 12 Years of 90 %, 30 Years of 84.8 % Total Degradation Rate ⏳ 0.51 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 495 Wp Voltage at Maximum Power (Vmpp) 35.96 V Current at Maximum Power (Impp) 13.76 A Open Circuit Voltage (Voc) 43.59 V Short Circuit Current (Isc) 14.52 A Panel Efficiency 22.86 % Maximum Power (Pmax) 372 Wp Voltage at Maximum Power (Vmpp) 33.77 V Current at Maximum Power (Impp) 11.02 A Open Circuit Voltage (Voc) 40.93 V Short Circuit Current (Isc) 11.73 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.3 %/°C Temperature Coefficient of Voc -0.275 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1902x1133x30 mm Weight 23.5 kg Cell Size 182×91 mm Cell Number 120 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junctio
Technology: TOPCon
Power Range: 475 ~ 495 Wp
Panel Efficiency: 22.04 ~ 22.86 %
Weight: 23.5 kg
Seller Name: SpolarPV Technology Co., Ltd.
Country: China
| SKU | PES-SPS-SOL-18589 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
You May Also Need
Product Description
-
Type Monocrystalline Model No. SPV495-TM10-120 Product Warranty 12 Years Power Warranty 12 Years of 90 %, 30 Years of 84.8 % Total Degradation Rate ⏳ 0.51 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 495 Wp Voltage at Maximum Power (Vmpp) 35.96 V Current at Maximum Power (Impp) 13.76 A Open Circuit Voltage (Voc) 43.59 V Short Circuit Current (Isc) 14.52 A Panel Efficiency 22.86 % Maximum Power (Pmax) 372 Wp Voltage at Maximum Power (Vmpp) 33.77 V Current at Maximum Power (Impp) 11.02 A Open Circuit Voltage (Voc) 40.93 V Short Circuit Current (Isc) 11.73 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.3 %/°C Temperature Coefficient of Voc -0.275 %/°C Temperature Coefficient of Isc 0.045 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1902x1133x30 mm Weight 23.5 kg Cell Size 182×91 mm Cell Number 120 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junctio
Technology: TOPCon
Power Range: 475 ~ 495 Wp
Panel Efficiency: 22.04 ~ 22.86 %
Weight: 23.5 kg
Seller Name: SpolarPV Technology Co., Ltd.
Country: China -
