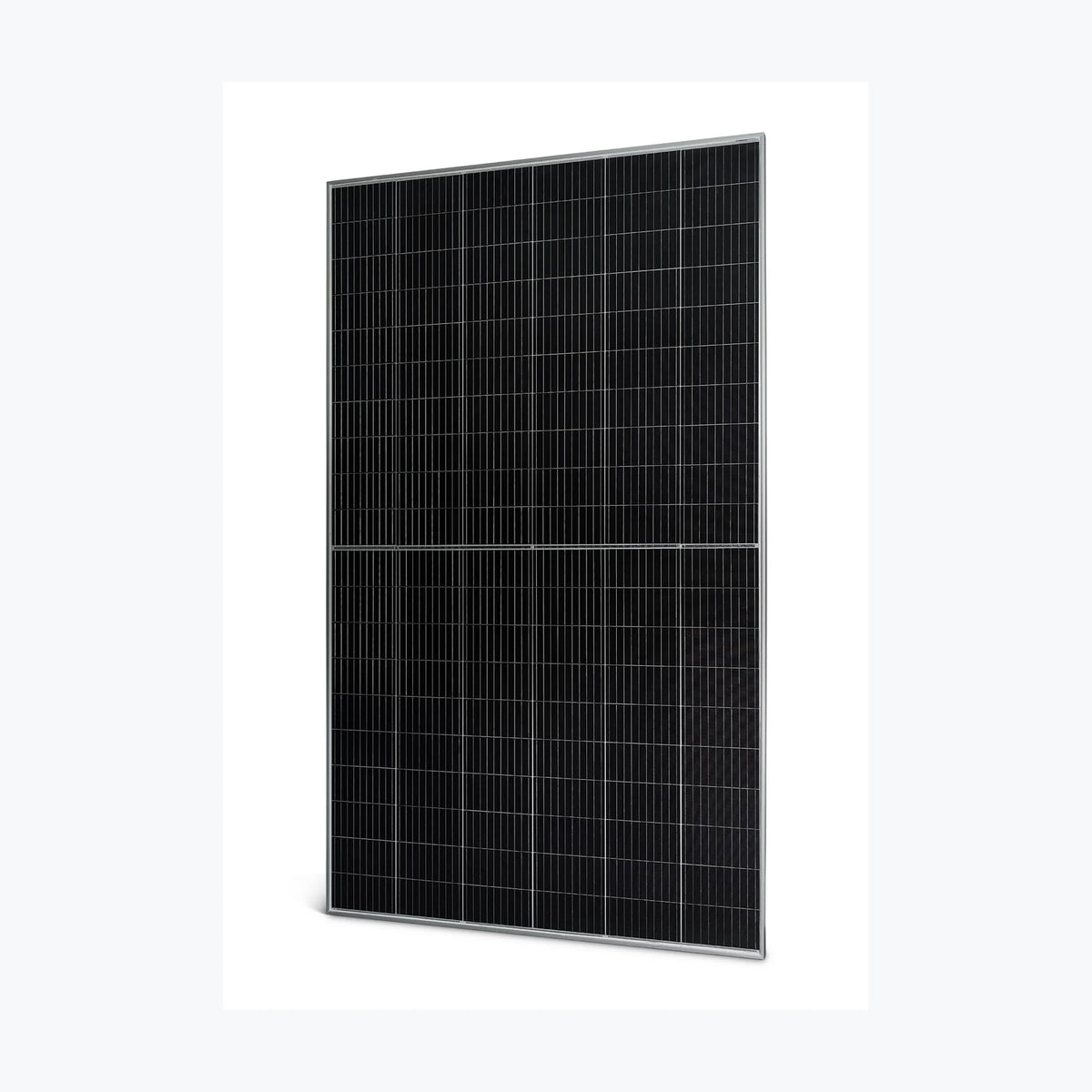

    3Sun 3SHBGHAA-640

    3Sun 3SHBGHAA-640

    $128.00 USD
    $128.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0097
    • Container price: $69,120.00 USD
    • Container qty: 720
    • Mpn: SHBGHAA-640
    • Odoo id: 17,873
    • Pallet price: $3,264.00 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Monocrystalline Model No. 3SHBGHAA-640 Product Warranty 15 Years Power Warranty 30 Years of 91.8 % Total Degradation Rate ⏳ 0.27 % Maximum Power (Pmax) 640 Wp Voltage at Maximum Power (Vmpp) 35.81 V Current at Maximum Power (Impp) 17.87 A Open Circuit Voltage (Voc) 43.32 V Short Circuit Current (Isc) 19 A Panel Efficiency 22.6 % Maximum Power (Pmax) 484 Wp Voltage at Maximum Power (Vmpp) 34.07 V Current at Maximum Power (Impp) 14.2 A Open Circuit Voltage (Voc) 41.2 V Short Circuit Current (Isc) 15.33 A Temperature 44±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.24 %/°C Temperature Coefficient of Voc -0.2 %/°C Temperature Coefficient of Isc 0.044 %/°C Maximum System Voltage 1500 V Series Fuse Rating 35 A Panel Dimension (H/W/D) 2172x1303x35 mm Weight 36 kg Cell Number 120 Glass Type Anti-reflection Coating, Tempered Glass Thickness 2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cabl

      Technology: Bifacial, HJT
      Power Range: 640 ~ 680 Wp
      Panel Efficiency: 22.6 ~ 24 %
      Weight: 36 kg
      Seller Name: 3Sun Srl
      Country: Italy
