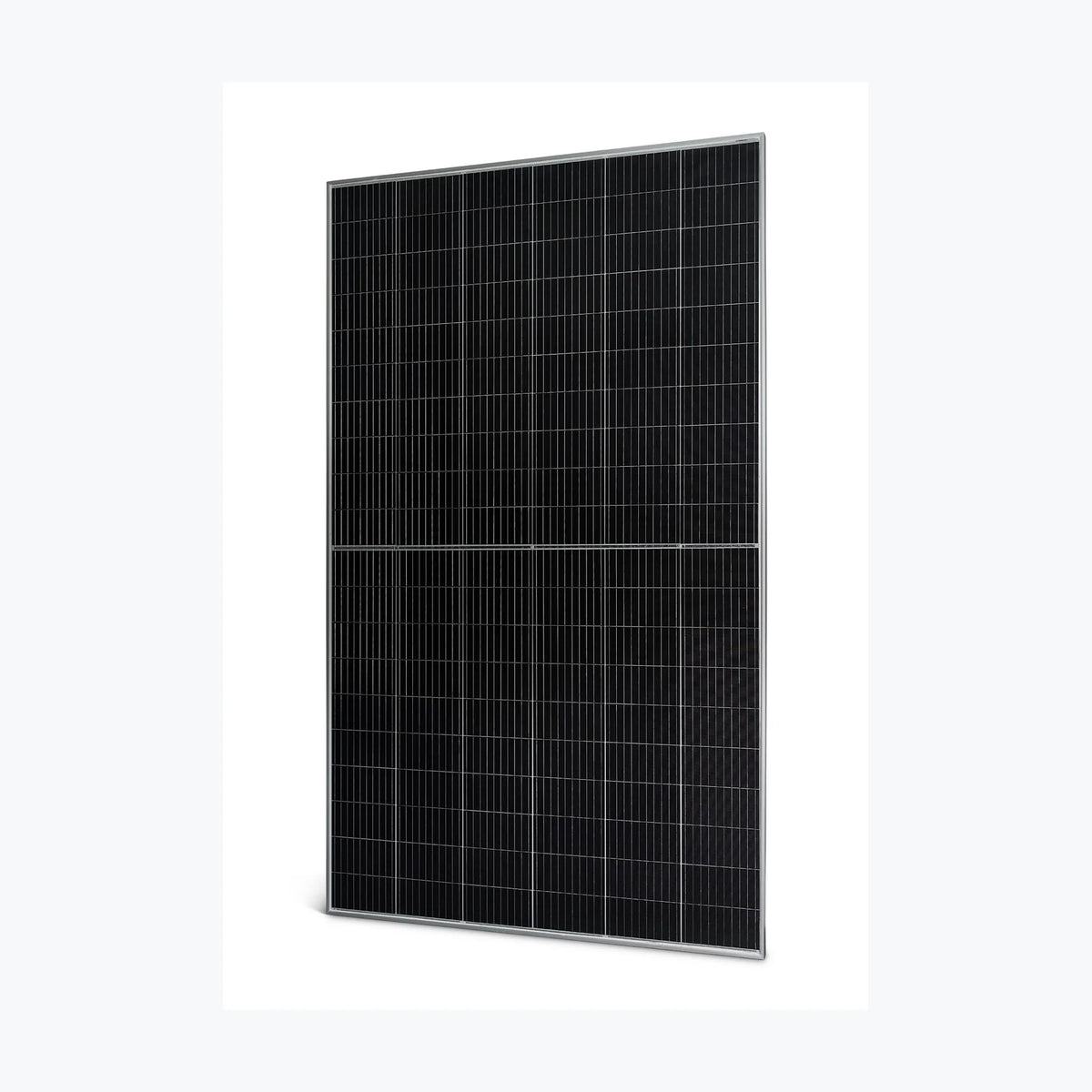

    3Sun 3SHBGHAA-660

    3Sun 3SHBGHAA-660

    $132.00 USD
    $132.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0101
    • Container price: $71,280.00 USD
    • Container qty: 720
    • Mpn: SHBGHAA-660
    • Odoo id: 17,877
    • Pallet price: $3,366.00 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Monocrystalline Model No. 3SHBGHAA-660 Product Warranty 15 Years Power Warranty 30 Years of 91.8 % Total Degradation Rate ⏳ 0.27 % Maximum Power (Pmax) 660 Wp Voltage at Maximum Power (Vmpp) 36.17 V Current at Maximum Power (Impp) 18.25 A Open Circuit Voltage (Voc) 43.77 V Short Circuit Current (Isc) 19.4 A Panel Efficiency 23.3 % Maximum Power (Pmax) 499 Wp Voltage at Maximum Power (Vmpp) 34.41 V Current at Maximum Power (Impp) 14.5 A Open Circuit Voltage (Voc) 41.63 V Short Circuit Current (Isc) 15.65 A Temperature 44±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.24 %/°C Temperature Coefficient of Voc -0.2 %/°C Temperature Coefficient of Isc 0.044 %/°C Maximum System Voltage 1500 V Series Fuse Rating 35 A Panel Dimension (H/W/D) 2172x1303x35 mm Weight 36 kg Cell Number 120 Glass Type Anti-reflection Coating, Tempered Glass Thickness 2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 C

      Technology: Bifacial, HJT
      Power Range: 640 ~ 680 Wp
      Panel Efficiency: 22.6 ~ 24 %
      Weight: 36 kg
      Seller Name: 3Sun Srl
      Country: Italy
