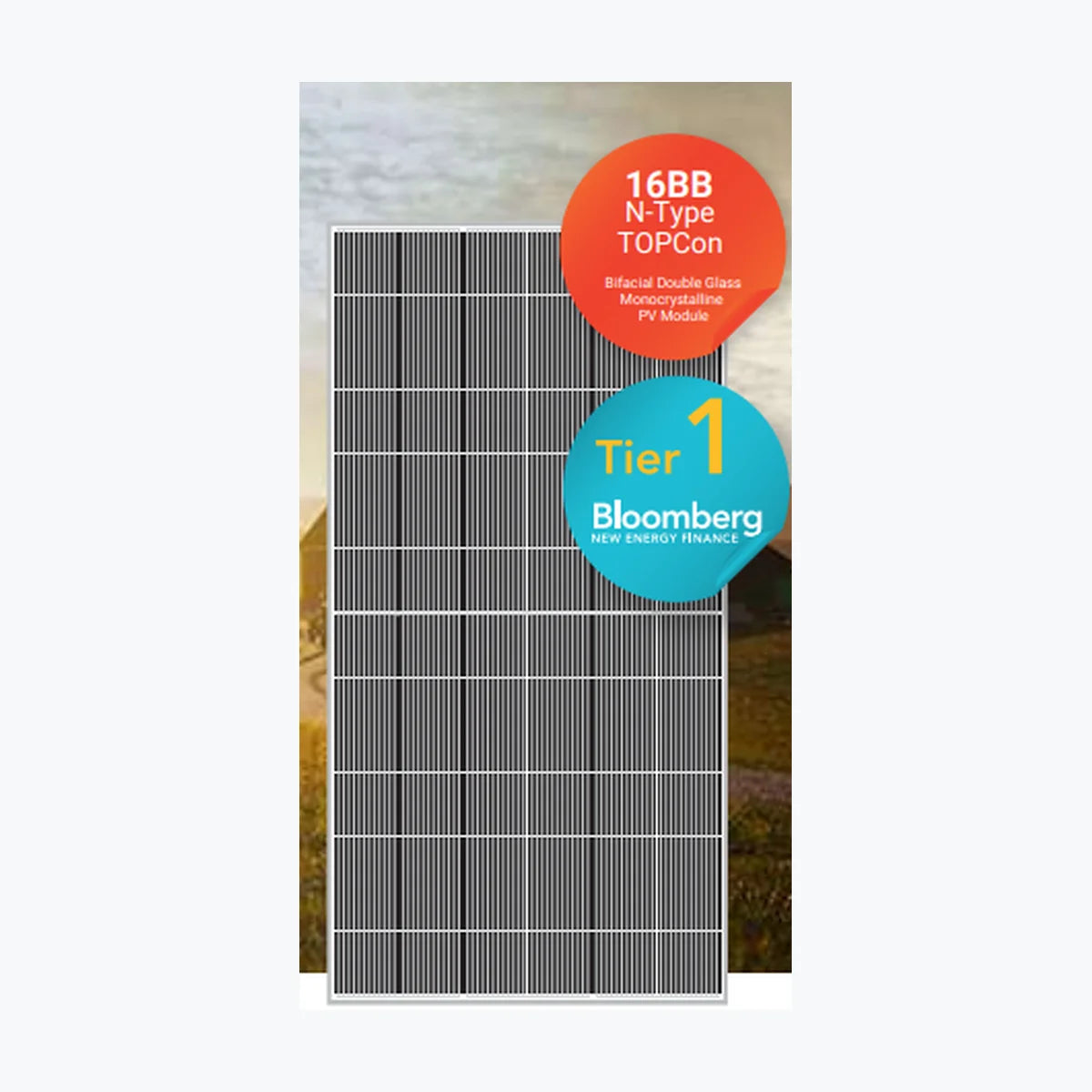

    ABi-Solar 565

    ABi-Solar 565

    $113.00 USD
    $113.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-PA-ELC-24721
    • Container price: $61,020.00 USD
    • Container qty: 720
    • Odoo id: 27,583
    • Pallet price: $2,881.50 USD
    • Pallet qty: 30
    • Unit price: $113.00 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. 565 Product Warranty 12 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 565 Wp Voltage at Maximum Power (Vmpp) 42.2 V Current at Maximum Power (Impp) 13.39 A Open Circuit Voltage (Voc) 50.9 V Short Circuit Current (Isc) 14.17 A Panel Efficiency 21.86 % Maximum Power (Pmax) 426.4 Wp Voltage at Maximum Power (Vmpp) 39.7 V Current at Maximum Power (Impp) 10.74 A Open Circuit Voltage (Voc) 48 V Short Circuit Current (Isc) 11.44 A Temperature 44±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.30 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2279x1134x30 mm Weight 31.5 kg Cell Number 144 Glass Thickness 2.0 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Ca

      Technology: N-type
      Power Range: 560 ~ 575 Wp
      Panel Efficiency: 21.67 ~ 22.25 %
      Weight: 31.5 kg
      Seller Name: ABi-Solar Inc
      Country: United States
