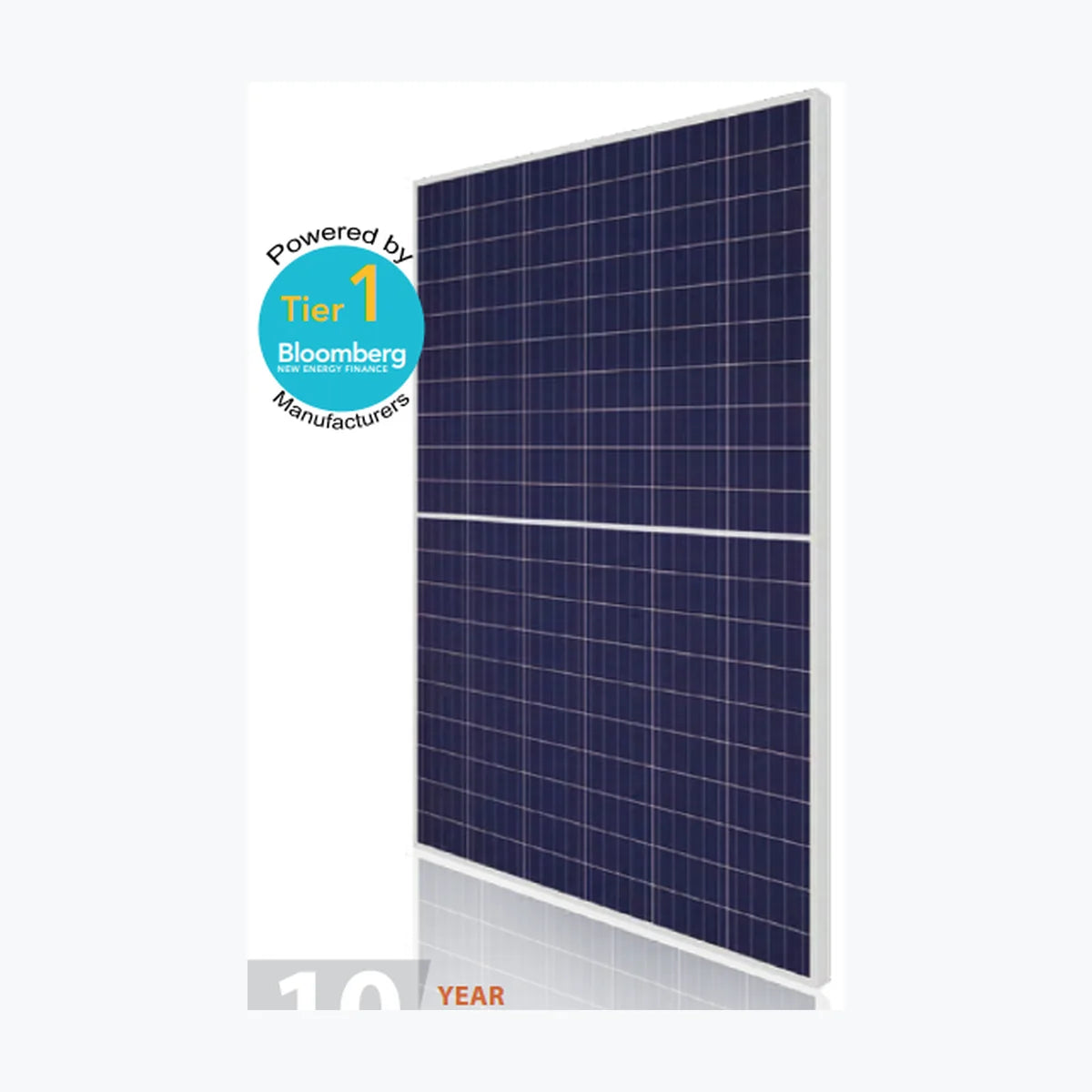

    ABi-Solar AB285-60PHC

    ABi-Solar AB285-60PHC

    $57.00 USD
    $57.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0134
    • Container price: $30,780.00 USD
    • Container qty: 720
    • Mpn: AB285-60PHC
    • Odoo id: 18,266
    • Pallet price: $1,453.50 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Polycrystalline Model No. AB285-60PHC Product Warranty 10 Years Power Warranty 10 Years of 91.2 %, 25 Years of 80.7 % Total Degradation Rate ⏳ 0.77 % Power Tolerance 0 ~ +1.83 % Maximum Power (Pmax) 285 Wp Voltage at Maximum Power (Vmpp) 32.3 V Current at Maximum Power (Impp) 8.83 A Open Circuit Voltage (Voc) 38.5 V Short Circuit Current (Isc) 9.32 A Panel Efficiency 17.16 % Maximum Power (Pmax) 209.4 Wp Voltage at Maximum Power (Vmpp) 29.76 V Current at Maximum Power (Impp) 7.05 A Open Circuit Voltage (Voc) 35.72 V Short Circuit Current (Isc) 7.5 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.38 %/°C Temperature Coefficient of Voc -0.3 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1674x992x35 mm Weight 18.5 kg Glass Type Tempered Frame Type Anodized Aluminium Junction Box Protection Class IP 67 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 900

      Power Range: 280 ~ 290 Wp
      Panel Efficiency: 16.8 ~ 17.46 %
      Weight: 18.5 kg
      Seller Name: ABi-Solar Inc
      Country: United States
